You Are Here: Home > Scotsman NM650R
Scotsman NM650R
Currently Viewing: NM650R Refrigeration System  > Go Back To Other Parts Lists

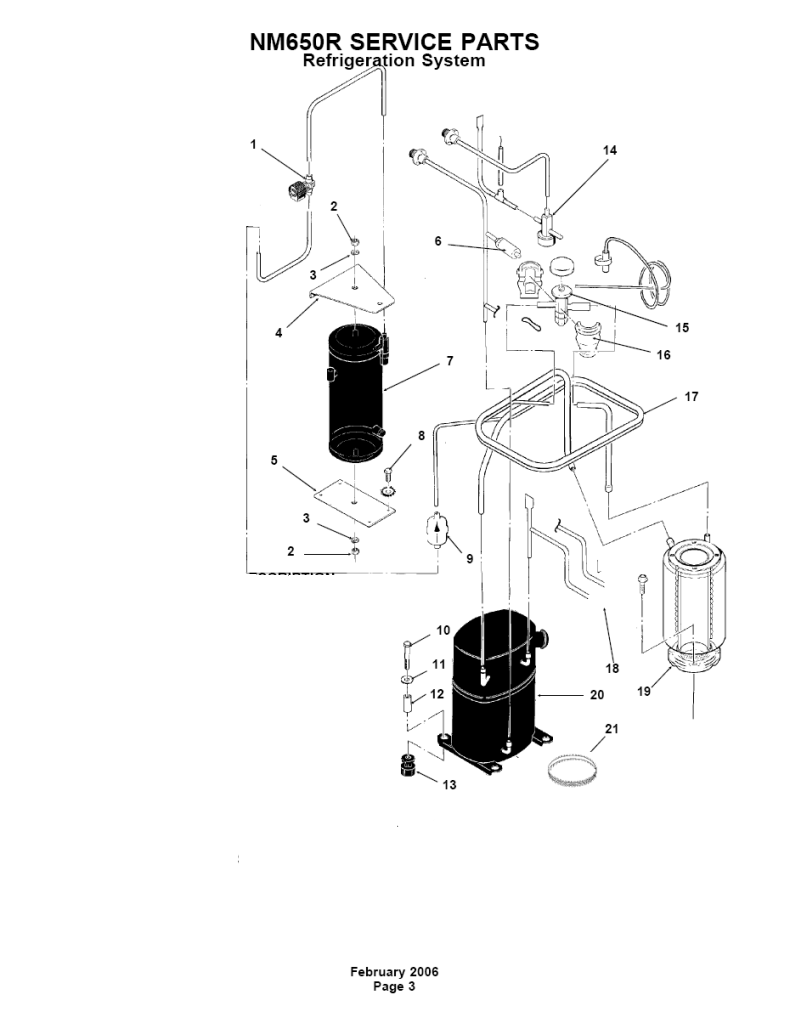

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   12-2257-21 SOLENOID LIQUID LINE - 12-2257-21
NLA 12-2257-02
2   03-1406-13 HEX NUTS Ships In 1-2 Days $4.01
3   03-1410-06 HELICAL SPRING LOCKW Ships In 1-2 Days $1.85
4   A32968-001 BRACE Ships In 1-2 Days $39.61
5   A31801-002 RECEIVER SUPPORT - OBSOLETE, NO REPLACEMENT
6   11-0446-23 PRESSURE CONTROL - OBSOLETE, NO REPLACEMENT
7   16-0761-01 RECEIVER Ships In 1-2 Days $453.60
8   03-1645-01 SCREW Ships In 1-2 Days $0.92
9   02-3319-02 DRIER Ships In 1-2 Days $34.34
10   03-1405-20 HEX CAP SCREW Ships In 1-2 Days $1.85
11   03-1407-07 TYPE A PLAIN WASHER Ships In 1-2 Days $2.63
12   18-2200-27 MOUNTING SLEEVE Ships In 1-2 Days $5.81
13   18-2200-28 MOUNTING GROMMET Ships In 1-2 Days $7.26
14   11-0422-22 CONTROL LOW AMBIENT Ships In 1-2 Days $261.65
15   16-0780-21 VALVE Ships In 1-2 Days $224.82
16   A32961-020 INSULATION KIT Ships In 1-2 Days $50.94
17 NLA a34536-001
18   16-0560-00 VALVE CORE Ships In 1-2 Days $4.72
  16-0563-00 BRASS CAP Ships In 1-2 Days $14.17
19   A33194-020 EVAPORATOR Ships In 1-2 Days $1,021.17
20   18-6100-02 COMPRESSOR - OBSOLETE, NO REPLACEMENT
NLA 18-6100-51
  18-6100-01 COMPRESSOR - OBSOLETE, NO REPLACEMENT
  18-6100-50 OVERLOAD - OBSOLETE, NO REPLACEMENT
21   12-1868-03 HEATER CRANKCASE Ships In 1-2 Days $38.57
  12-1868-04 HEATER Ships In 1-2 Days $52.58
