Scotsman NM1250
Currently Viewing: NM1250 Air Cooled Refrigeration  > Go Back To Other Parts Lists

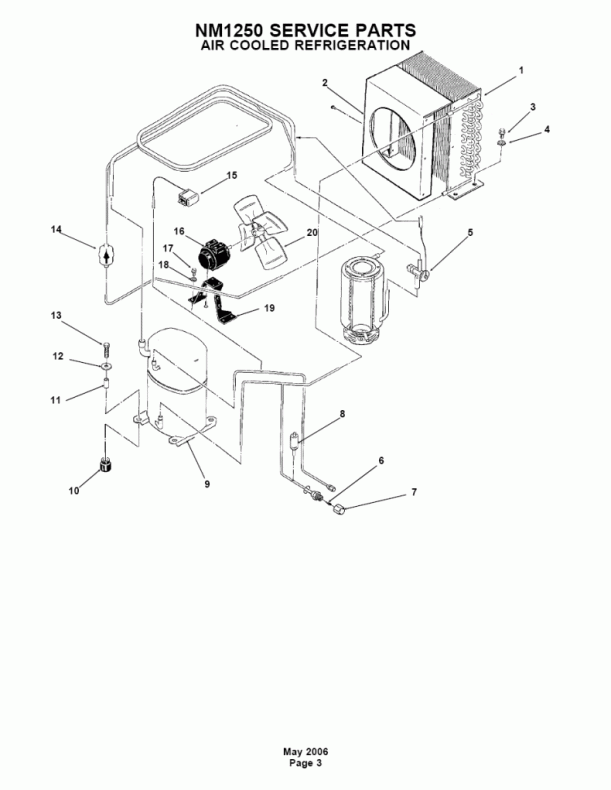

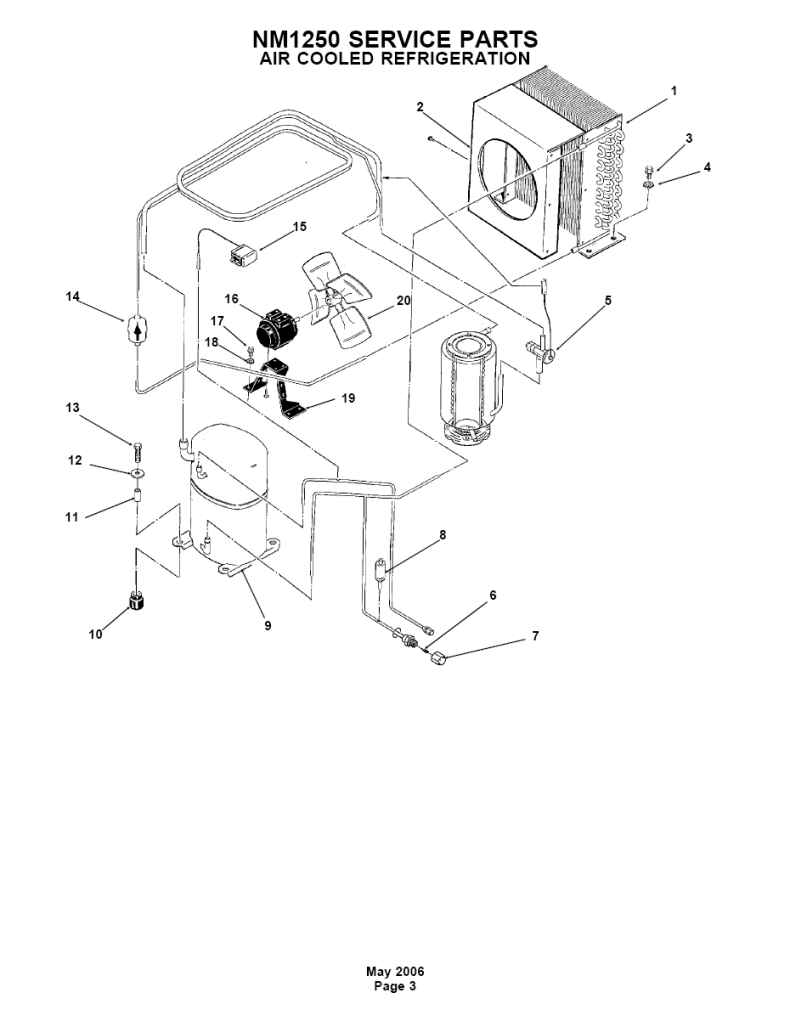

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   18-3709-01 CONDENSER -OBSOLETE
2 NLA a32170-001
3   03-1645-01 SCREW Ships In 1-2 Days $0.92
4   03-1417-09 TOOTHED LOCKWASHERS - OBSOLETE
5   16-0780-21 VALVE Ships In 1-2 Days $224.82
6   16-0560-00 VALVE CORE Ships In 1-2 Days $4.72
7   16-0563-00 BRASS CAP Ships In 1-2 Days $14.17
8   11-0446-21 PRESSURE CONTROL - OBSOLETE, NO REPLACEMENT
9 NLA 18-5900-02
  18-5900-03 COMPRESSOR - OBSOLETE, NO REPLACEMENT
10   18-6800-01 GROMMET - OBSOLETE, NO REPLACEMENT
11   18-2300-26 MOUNTING SLEEVE Ships In 1-2 Days $5.81
12   03-1407-07 TYPE A PLAIN WASHER Ships In 1-2 Days $2.63
13   03-1405-20 HEX CAP SCREW Ships In 1-2 Days $1.85
14   02-3319-02 DRIER Ships In 1-2 Days $34.34
15   11-0447-20 PRESSURE CONTROL Ships In 1-2 Days $123.59
16   18-5105-02 FAN MOTOR Ships In 1-2 Days $234.50
17 NLA 03-1404-03
18   03-1417-09 TOOTHED LOCKWASHERS - OBSOLETE
19   18-3739-01 MOTOR MOUNT- No Longer Available
20   18-3732-01 FAN BLADE Ships In 1-2 Days $60.95
