Scotsman NM1250
Currently Viewing: NM1250 Evaporator  > Go Back To Other Parts Lists

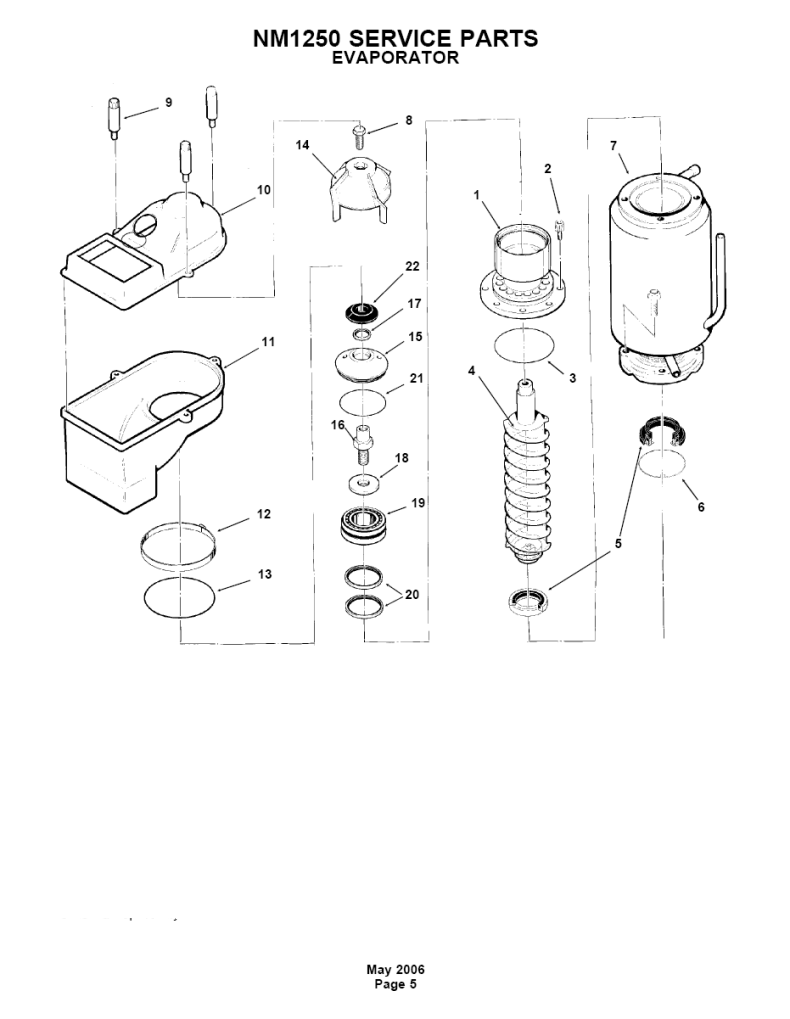

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   A32900-020 BREAKER Ships In 1-2 Days $692.21
2 03-1544-08 SCREW Ships In 1-2 Days $12.67
3   13-0617-45 O-RING Ships In 1-2 Days $8.15
4   A38071-022 AUGER - 15 INCHES LONG Ships In 1-2 Days $641.91
5 02-0929-23 Scotsman Water Seal - 02-0929-23 Ships In 1-2 Days $108.36
6 A32777-001 RING Ships In 1-2 Days $25.83
7   A32890-020 EVAPORATOR Ships In 1-2 Days $1,019.78
8   03-1405-52 HEX CAP SCREW Ships In 1-2 Days $10.46
9   02-2933-01 STUD Ships In 1-2 Days $32.48
10   02-2930-01 CHUTE COVER Ships In 1-2 Days $46.12
11   02-2926-01 CHUTE BODY Ships In 1-2 Days $45.77
12   A32905-001 CLAMP - OBSOLETE, NO REPLACEMENT
13   13-0617-52 O-RING Ships In 1-2 Days $16.79
14 02-3001-01 ICE SWEEP Ships In 1-2 Days $42.02
15   02-3128-20 COVER Ships In 1-2 Days $45.88
16   08-0660-01 AUGER STUD Ships In 1-2 Days $91.38
17 02-2978-01 LIP SEAL Ships In 1-2 Days $31.84
18 Part of item 16
19   A34559-020 BEARING-SERVICE Ships In 1-2 Days $180.03
20 02-2977-01 LIP SEAL Ships In 1-2 Days $41.88
21   13-0617-54 0-RING Ships In 1-2 Days $8.83
22   13-0871-01 WATER SHED Ships In 1-2 Days $26.71
