Scotsman NM1250
Currently Viewing: NM1250 Resevoir, Drains, Ice Chute and Ice Level Sensors  > Go Back To Other Parts Lists

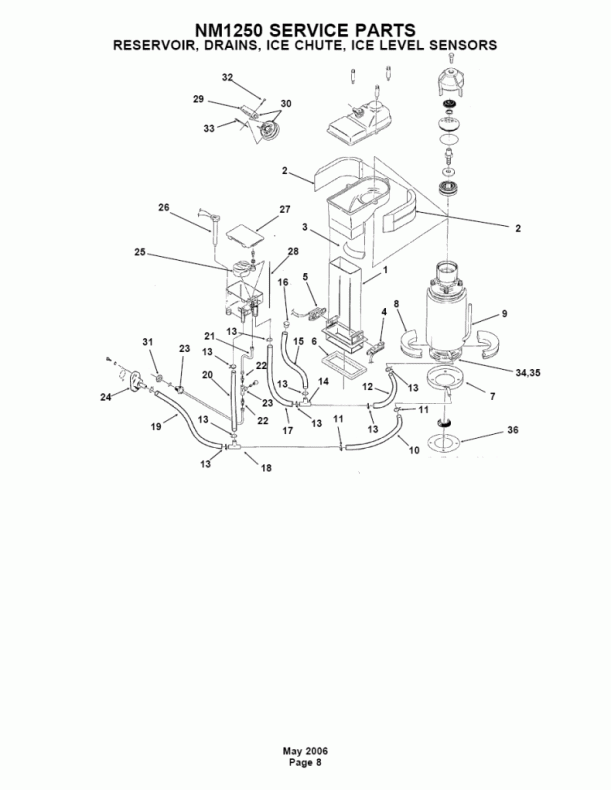

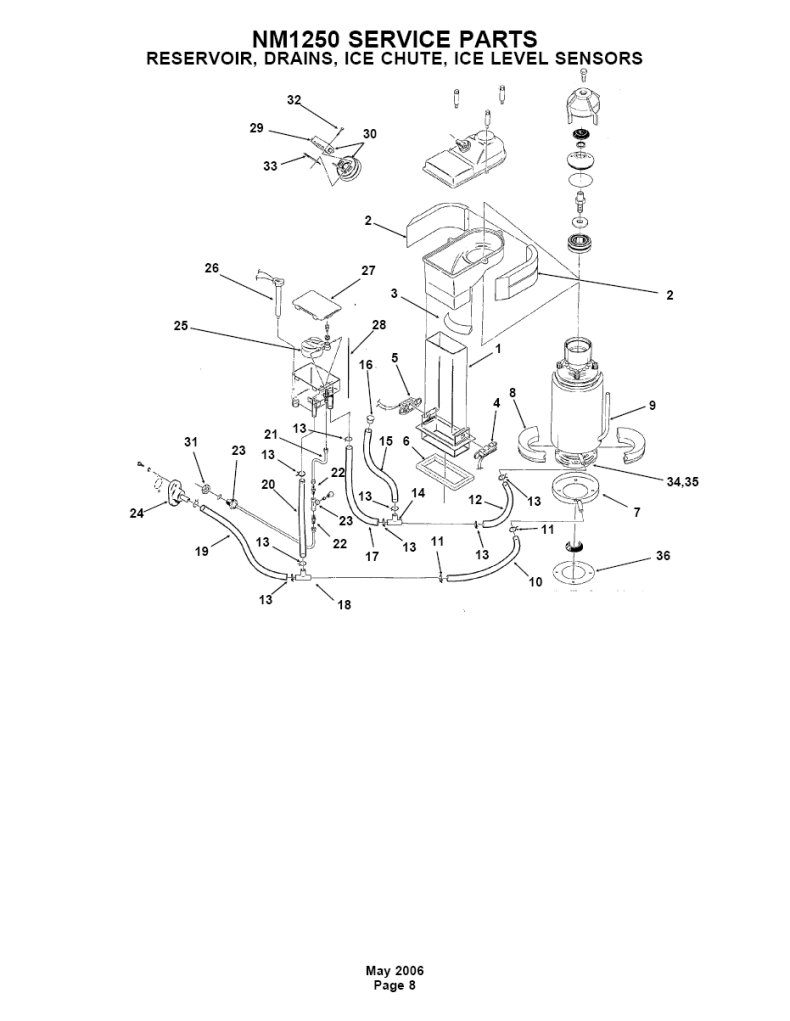

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   02-2929-01 ICE CHUTE-LOWER - OBSOLETE, NO REPLACEMENT
2   A32963-001 INSULATION TOP HALF Ships In 1-2 Days $23.29
3   A33102-001 INSULATION COLLAR IN Ships In 1-2 Days $18.11
NLA a33210-001
4   A37708-021 BIN LEVEL CONTROL Ships In 1-2 Days $98.87
5 No Number: Same as item 4
6   A32930-001 CHUTE GASKET Ships In 1-2 Days $21.55
7   A32050-001 DRIP PAN Ships In 1-2 Days $33.80
8   A32962-001 INSULATION - REPLACED BY 02-4358-01
9   02-4358-01 INSULATION 02-4358-01 Ships In 1-2 Days $8.95
10   13-0079-03 RUBBER TUBING Ships In 1-2 Days $6.80
11 NLA 02-0538-00
12   A33203-001 HOSE - OBSOLETE
13   02-2814-08 Scotsman Hose Clamp - 02-2814-08 Ships In 1-2 Days $7.84
14   16-0670-01 Scotsman Tee - 16-0670-01 Ships In 1-2 Days $7.84
15   13-0674-06 TUBING - PER FT. Ships In 1-2 Days $8.63
16 NLA a33205-001
17   13-0674-06 TUBING - PER FT. Ships In 1-2 Days $8.63
18   16-0670-02 TEE Ships In 1-2 Days $11.72
19 18"   13-0079-03 RUBBER TUBING Ships In 1-2 Days $6.80
20 11"   13-0079-03 RUBBER TUBING Ships In 1-2 Days $6.80
21 NLA a32748-001
22   16-0791-01 COUPLING-HALF UNION Ships In 1-2 Days $10.00
23   A32878-001 INLET TUBE - OBSOLETE, NO REPLACEMENT
24   A32282-004 DRAIN - OBSOLETE, NO REPLACEMENT
NLA a32892-001
25 NLA a32922-020
26 NLA a33101-021
27   02-2936-01 RESERVOIR COVER Ships In 1-2 Days $29.21
28   A32929-020 FLOAT RESERVOIR Ships In 1-2 Days $244.77
29   12-2329-01 SWITCH - OBSOLETE, NO REPLACEMENT
30   A32891-020 SWITCH-HOUING Ships In 1-2 Days $66.91
31   03-1394-01 NUT Ships In 1-2 Days $4.21
32   03-1403-09 SCREW Ships In 1-2 Days $14.13
33   03-0886-00 NUT Ships In 1-2 Days $2.23
34   03-1405-41 HEX CAP SCREW Ships In 1-2 Days $5.46
35   03-1417-13 TOOTHED LOCKWASHERS Ships In 1-2 Days $1.85
36 13-0704-00 GASKET Ships In 1-2 Days $9.79
