Scotsman NM1850R

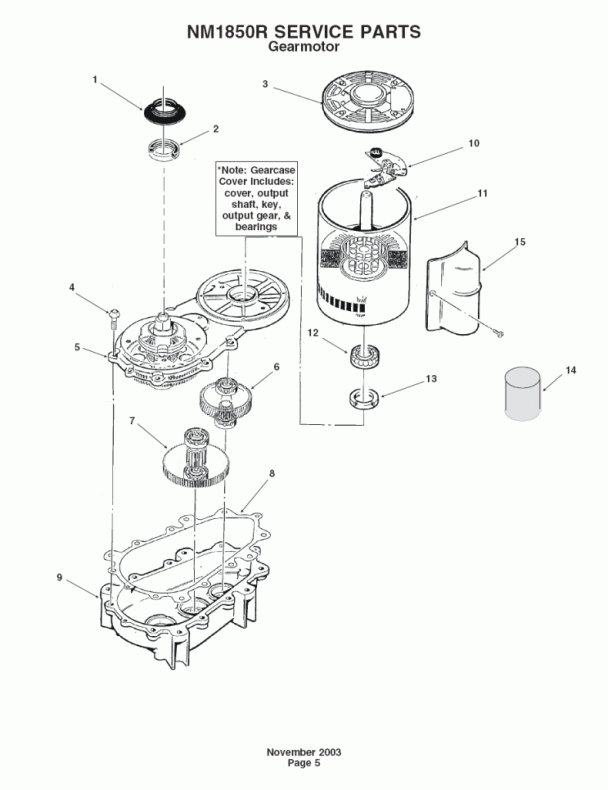

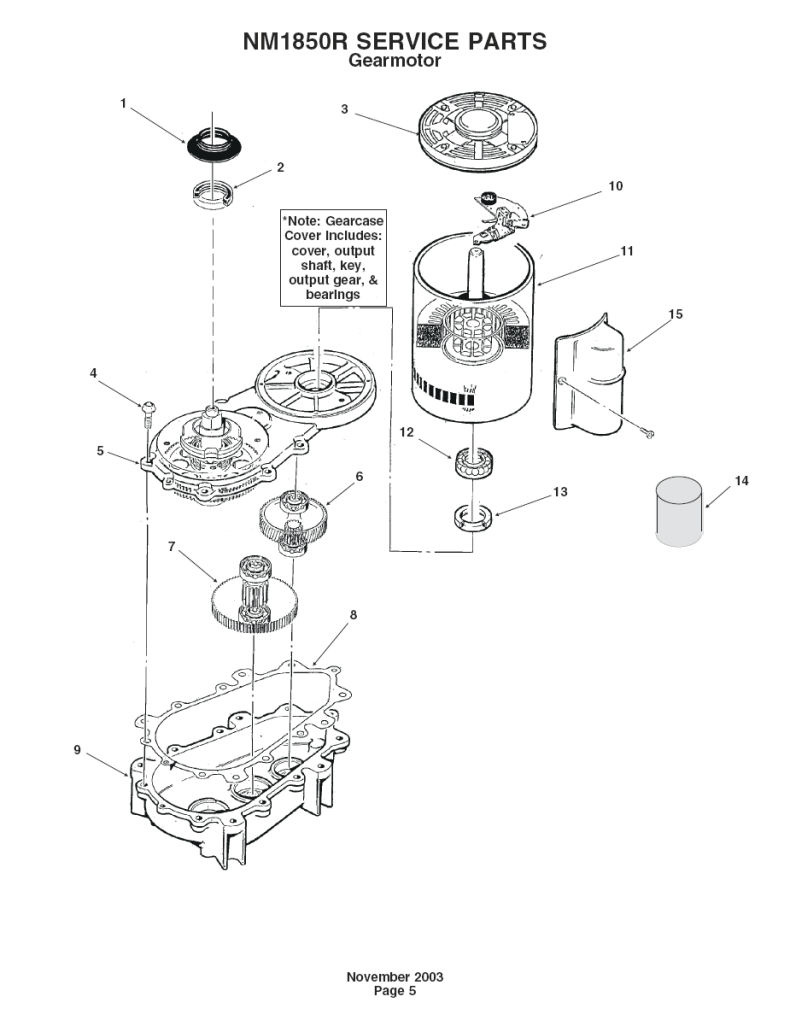

Currently Viewing: NM1850R Gearmotor  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   02-4663-01 WATER SHED Ships In 1-2 Days $33.78
2   A32379-029 SEAL Ships In 1-2 Days $32.42
3 No Number: End Bell
4   A32379-026 BOLT - (6) PER PACK Ships In 1-2 Days $36.34
5   A32379-022 GEAR CASE TOP Ships In 1-2 Days $824.28
6 A32379-024 SCOTSMAN FIRST GEAR & BEARING Ships In 1-2 Days $366.85
7 A32379-023 SECOND GEAR - BEARING Ships In 1-2 Days $219.85
8   A32379-021 GASKET Ships In 1-2 Days $24.89
9 A32379-020 Scotsman Gear Case - A32379-020 Ships In 1-2 Days $292.45
10   A32898-020 SWITCH Ships In 1-2 Days $144.17
12-2430-24 START SWITCH Ships In 1-2 Days $156.80
  12-2430-44 SWITCH START GE SPLI Ships In 1-2 Days $55.09
11   12-2430-22 MOTOR 230 V. Ships In 1-2 Days $592.00
12   12-1741-29 DRIVE MOTOR BEARING Ships In 1-2 Days $61.55
  12-2430-29 MOTOR BEARING Ships In 1-2 Days $97.44
  12-2430-49 BEARING - MOTOR GE Ships In 1-2 Days $40.95
13   A32379-028 SEAL Ships In 1-2 Days $46.84
14 A32379-027 Scotsman Gear Reducer Lubricant Ships In 1-2 Days $28.95
15 NLA 122314-22
16   A33220-022 GEAR REDUCER & MOTOR 230v Ships In 1-2 Days $1,361.41
  A33220-030 REDUCER - LESS MOTOR Ships In 1-2 Days $976.00
