Scotsman NM1852R

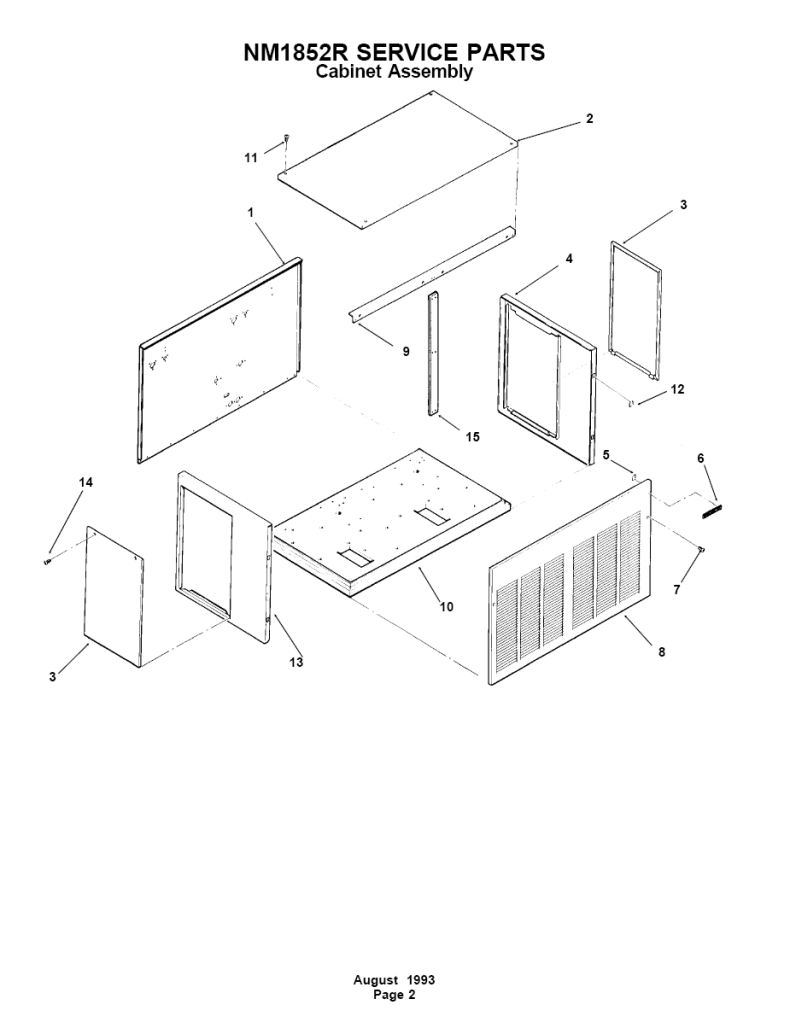

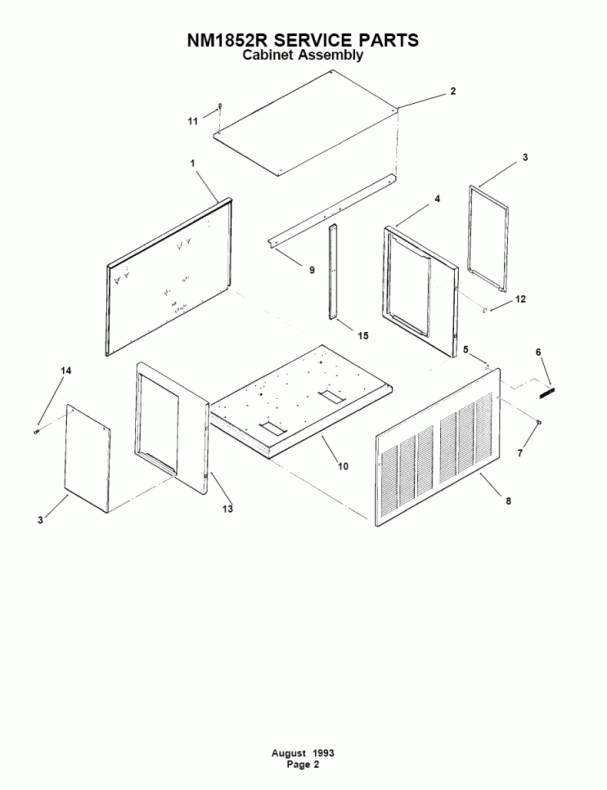

Currently Viewing: NM1852R Cabinet Assembly  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1 NLA a34283-001
2   A32461-001 PANEL TOP SANDALWOOD - OBSOLETE, NO REPLACEMENT
  A32461-002 TOP PANEL Ships In 1-2 Days $276.47
3   A34038-001 PANEL SERVICE SANDAL - OBSOLETE, NO REPLACEMENT
  A34038-002 PANEL Ships In 1-2 Days $156.75
4 NLA a33292-001
  A33292-002 END PANEL RT. Ships In 1-2 Days $116.89
5   03-0271-00 NUT - OBSOLETE, NO REPLACEMENT
6   15-0711-01 EMBLEM SCOTSMAN (BRO Ships In 1-2 Days $33.39
7   03-1419-08 SCREW Ships In 1-2 Days $1.85
8   A34294-001 PANEL FRONT SANDALWO - OBSOLETE, NO REPLACEMENT
  A34294-002 FT. PANEL Ships In 1-2 Days $383.98
9   A34287-001 FT. BRACE - A34287-001 Ships In 1-2 Days $27.56
10 NLA a34282-001
11   03-1531-01 SCREW Ships In 1-2 Days $1.85
12   02-0836-00 CATCH ZINC Ships In 1-2 Days $11.30
13   A32435-001 PANEL END LEFT SANDA - OBSOLETE, NO REPLACEMENT
  A32435-002 END PANEL LEFT Ships In 1-2 Days $225.89
14 03-1404-12 SCREW Ships In 1-2 Days $1.85
15   A34286-001 SUPPORT-CENTER Ships In 1-2 Days $52.20
