Scotsman NM1852R
Currently Viewing: NM1852R Water System, Water Seal  > Go Back To Other Parts Lists

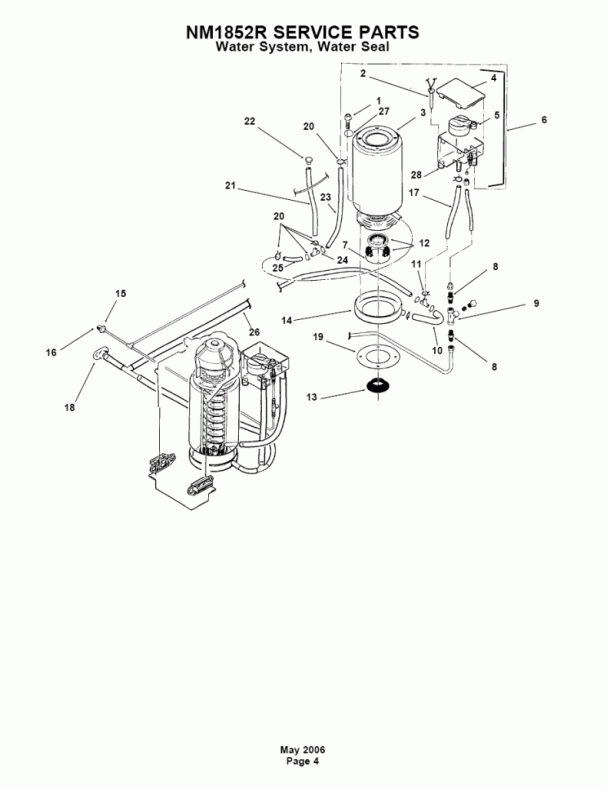

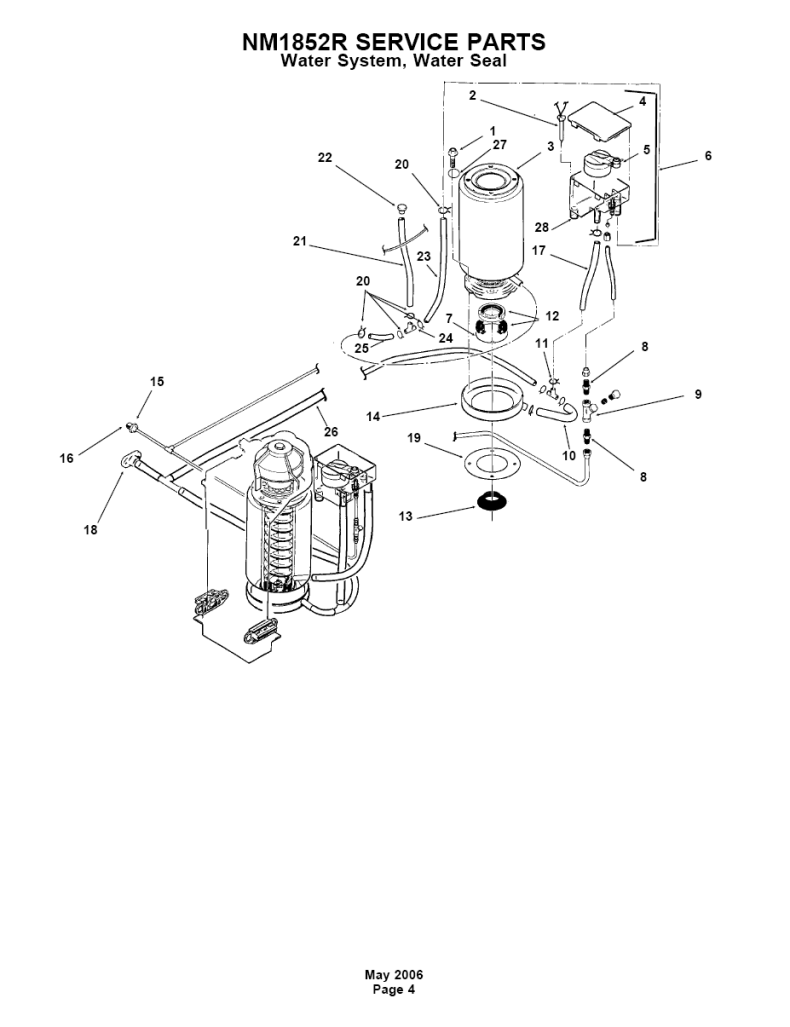

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   03-1405-41 HEX CAP SCREW Ships In 1-2 Days $5.46
2   A33101-022 Scotsman Thermo Probe Service - A33101-022 Ships In 1-2 Days $85.95
3   A32890-020 EVAPORATOR Ships In 1-2 Days $1,019.78
4   02-2936-01 RESERVOIR COVER Ships In 1-2 Days $29.21
5 NLA a32922-020
  02-3190-01 RUBBER SEAL Ships In 1-2 Days $15.89
6   A32929-020 FLOAT RESERVOIR Ships In 1-2 Days $244.77
7 A32777-001 RING Ships In 1-2 Days $25.83
8   16-0791-01 COUPLING-HALF UNION Ships In 1-2 Days $10.00
9 16-0162-00 Scotsman Strainer - 16-0162-00 Ships In 1-2 Days $34.95
10   13-0079-03 RUBBER TUBING Ships In 1-2 Days $6.80
11   16-0670-02 TEE Ships In 1-2 Days $11.72
12 02-0929-23 Scotsman Water Seal - 02-0929-23 Ships In 1-2 Days $108.36
13   02-4663-01 WATER SHED Ships In 1-2 Days $33.78
14   A37705-021 DRIP PAN & HOSE KIT Ships In 1-2 Days $139.50
15 A27318-001 WATER INLET FITTING Special Order - Ships In 3-4 Weeks $31.95
16   03-1394-01 NUT Ships In 1-2 Days $4.21
17   13-0079-03 RUBBER TUBING Ships In 1-2 Days $6.80
18   A32282-004 DRAIN - OBSOLETE, NO REPLACEMENT
19 13-0704-00 GASKET Ships In 1-2 Days $9.79
20   02-2814-08 Scotsman Hose Clamp - 02-2814-08 Ships In 1-2 Days $7.84
21   13-0674-06 TUBING - PER FT. Ships In 1-2 Days $8.63
22   13-0840-01 RUBBER PLUG Special Order - Ships In 3-4 Weeks $2.96
23   13-0674-06 TUBING - PER FT. Ships In 1-2 Days $8.63
24   16-0670-01 Scotsman Tee - 16-0670-01 Ships In 1-2 Days $7.84
25   A33203-001 HOSE - OBSOLETE
26   13-0079-03 RUBBER TUBING Ships In 1-2 Days $6.80
27   03-1417-13 TOOTHED LOCKWASHERS Ships In 1-2 Days $1.85
28   13-0230-00 CAP Ships In 1-2 Days $10.43
  02-2814-01 HOSE CLAMP - OBSOLETE, NO REPLACEMENT
