Scotsman NM1852R
Currently Viewing: NM1852R Evaporator, Bin Controls  > Go Back To Other Parts Lists

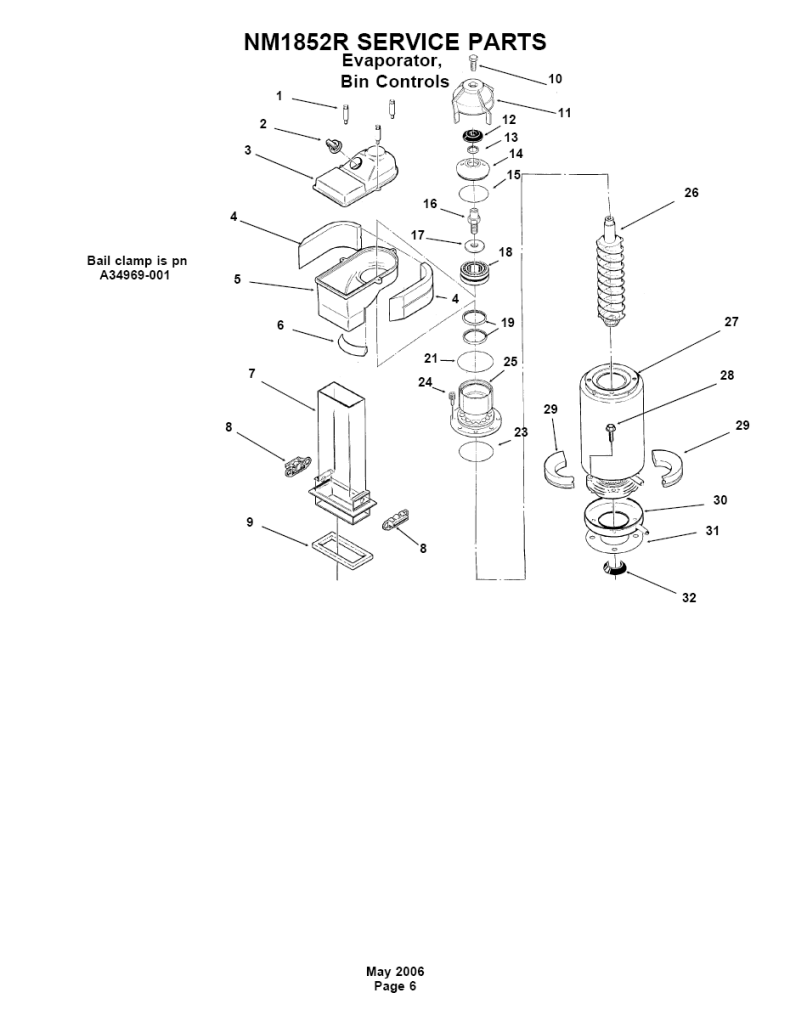

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   02-2933-01 STUD - OBSOLETE
2   A32891-020 SWITCH-HOUSING - OBSOLETE
  13-0617-53 O-RING
  12-2398-01 SWITCH
3   02-2930-01 CHUTE COVER
4   A32963-001 INSULATION TOP HALF 1 Week To Ship $27.02
5   02-2926-01 CHUTE BODY
6   A33102-001 INSULATION COLLAR IN 1 Week To Ship $21.02
  A35419-020 STRAP KIT
7   02-2929-01 ICE CHUTE-LOWER - OBSOLETE, NO REPLACEMENT
8   A37708-021 BIN LEVEL CONTROL 1 Week To Ship $110.57
9   A32930-001 CHUTE GASKET
10   03-1405-52 HEX CAP SCREW
11 02-3001-01 ICE SWEEP 1 Week To Ship $49.30
12   13-0871-01 WATER SHED 1 Week To Ship $31.95
13 02-2978-01 LIP SEAL 1 Week To Ship $37.95
14   02-3128-20 COVER
15   13-0617-52 O-RING In Stock $19.95
16   08-0660-01 AUGER STUD
17 No Number: Part of #16
18   A34559-020 BEARING-SERVICE 1 Week To Ship $215.95
19 02-2977-01 LIP SEAL In Stock $49.25
21   13-0617-54 0-RING 1 Week To Ship $11.21
23   13-0617-54 0-RING 1 Week To Ship $11.21
24 03-1544-08 SCREW
25   A32900-020 BREAKER 1 Week To Ship $796.33
26   A38071-022 AUGER - 15 INCHES LONG
27   A32890-020 EVAPORATOR
28   03-1405-41 HEX CAP SCREW
29   A32962-001 INSULATION - REPLACED BY 02-4358-01
30   A37705-021 DRIP PAN & HOSE KIT
31 13-0704-00 GASKET - 13-0704-00 1 Week To Ship $12.81
32   02-4663-01 WATER SHED - 02-4663-01 1 Week To Ship $40.76
