Scotsman NM1852R
Currently Viewing: NM1852R Control Box  > Go Back To Other Parts Lists

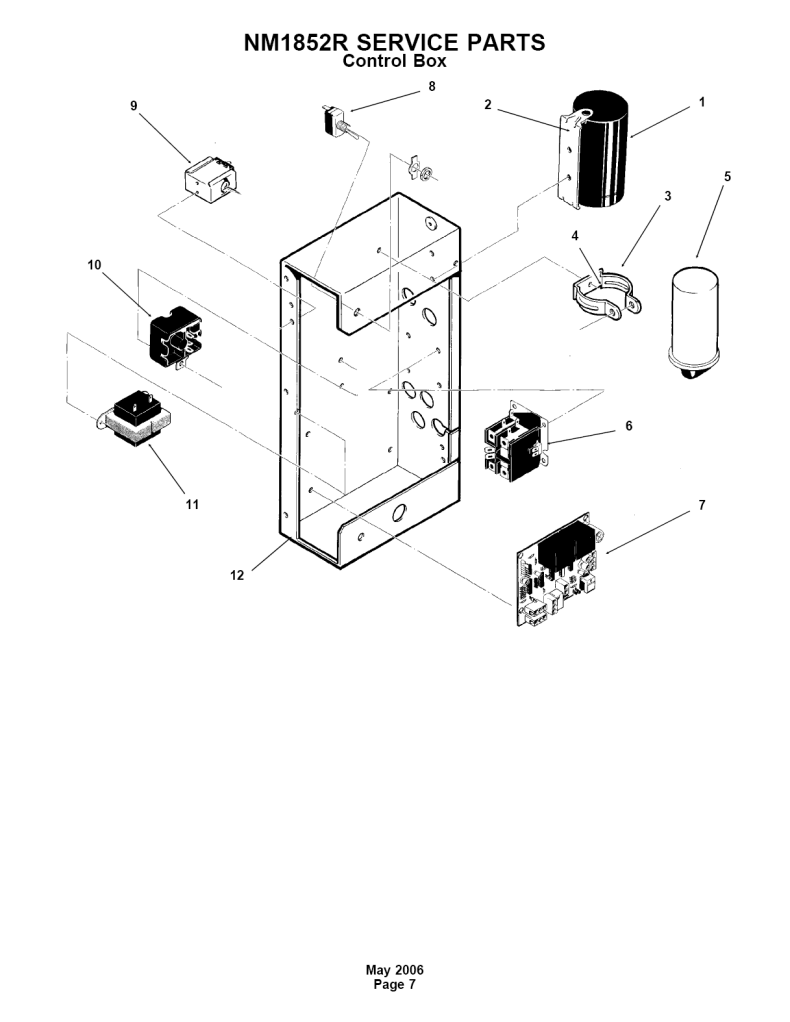

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1 18-1901-15 START CAPACITOR Special Order - -Ships in 3-4 Weeks $51.43
  18-2200-38 CAPACITOR CAP Special Order - -Ships in 3-4 Weeks $11.93
2   18-2200-39 BRACKET - OBSOLETE, NO REPLACEMENT
  03-1638-04 SCREW - OBSOLETE, NO REPLACEMENT
NLA 03-1417-15
3   A32872-001 BRACKET -OBSOLETE
NLA 03-1652-02
NLA 03-0255-04
4   03-1638-03 SCREW Ships In 1-2 Days $1.85
5 18-1902-53 RUN CAPACITOR Ships In 1-2 Days $70.59
6   12-2469-02 CONTACTOR Ships In 1-2 Days $75.89
  12-0739-02 MAG RELAY Ships In 1-2 Days $140.31
7   A37750-022 CONTROL BOARD KIT A37750-022 Ships In 1-2 Days $502.54
8   12-0426-01 TOGGLE SWITCH - OBSOLETE
9   11-0420-23 PRESSURE CONTROL Ships In 1-2 Days $116.40
10   18-1903-33 RELAY Ships In 1-2 Days $95.78
11   12-2285-22 TRANSFORMER Ships In 1-2 Days $108.29
12 No Number: Control Box Assembly
Not Illustrated
13   12-2337-02 PLUG - OBSOLETE, NO REPLACEMENT
14   12-2340-01 PLUG Ships In 1-2 Days $18.37
15 12-2070-04 RELAY Ships In 1-2 Days $100.12
16   A34055-001 COVER CONTROL BOX - OBSOLETE, NO REPLACEMENT
