Scotsman NME950R Parts Diagram
Currently Viewing: NME950R Gearmotor  > Go Back To Other Parts Lists

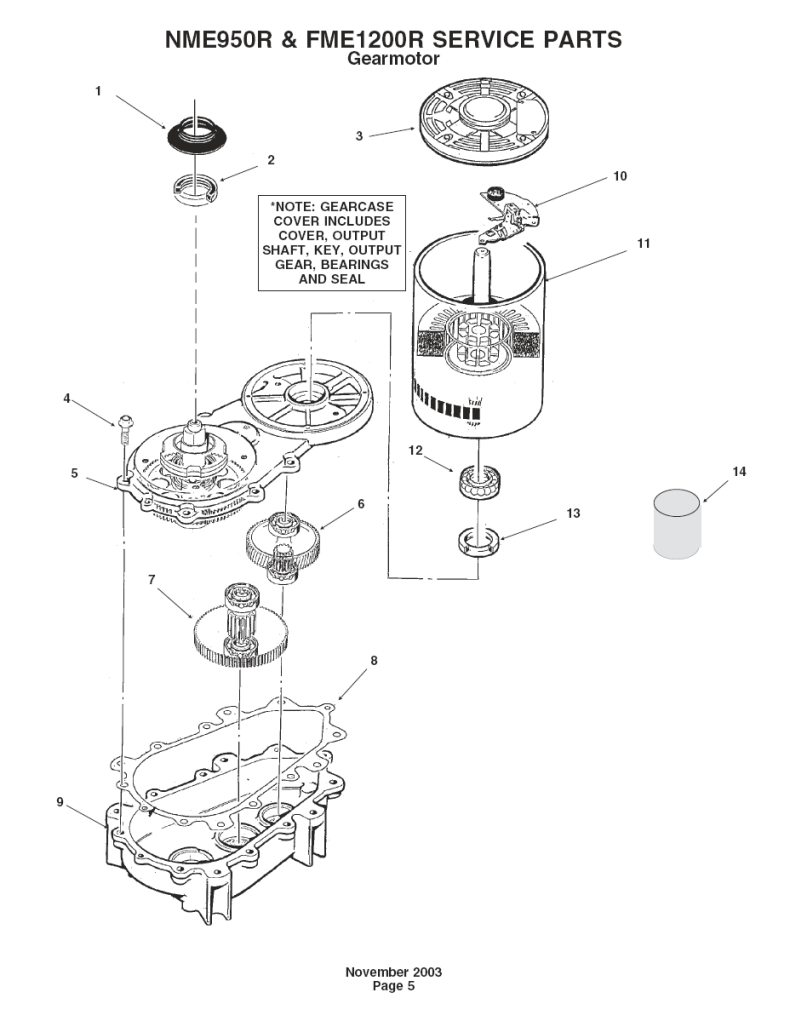

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   02-4663-01 WATER SHED Ships In 1-2 Days $33.78
2   A32379-029 SEAL Ships In 1-2 Days $32.42
3 No Number: End Bell
4   A32379-026 BOLT - (6) PER PACK Ships In 1-2 Days $36.34
5   A32379-022 GEAR CASE TOP Ships In 1-2 Days $824.28
6 A32379-024 SCOTSMAN FIRST GEAR & BEARING Ships In 1-2 Days $366.85
7 A32379-023 SECOND GEAR - BEARING Ships In 1-2 Days $219.85
8   A32379-021 GASKET Ships In 1-2 Days $24.89
9 A32379-020 Scotsman Gear Case - A32379-020 Ships In 1-2 Days $292.45
10a.....Start Switch for Emerson Motor 12-2430-24 START SWITCH Ships In 1-2 Days $156.80
10b......Start Switch for GE Split Phase Motor   12-2430-44 SWITCH START GE SPLI Ships In 1-2 Days $55.09
11   12-2430-22 MOTOR 230 V. Ships In 1-2 Days $592.00
12a.....Motor Bearing for Emerson Motor   12-2430-29 MOTOR BEARING Ships In 1-2 Days $97.44
12b.....Motor Bearing for GE Split Phase Motor   12-2430-49 BEARING - MOTOR GE Ships In 1-2 Days $40.95
13   A32379-028 SEAL Ships In 1-2 Days $46.84
14 A32379-027 Scotsman Gear Reducer Lubricant Ships In 1-2 Days $28.95
15   A33220-022 GEAR REDUCER & MOTOR 230v Ships In 1-2 Days $1,361.41
16   A33220-030 REDUCER - LESS MOTOR Ships In 1-2 Days $976.00
17   02-4663-01 WATER SHED Ships In 1-2 Days $33.78
18   A34559-020 BEARING-SERVICE Ships In 1-2 Days $180.03
19 02-2977-01 LIP SEAL Ships In 1-2 Days $41.88
20 13-0704-00 GASKET Ships In 1-2 Days $9.79
21   13-0617-54 0-RING Ships In 1-2 Days $8.83
22   A37705-021 DRIP PAN & HOSE KIT Ships In 1-2 Days $139.50
23   13-0617-45 O-RING Ships In 1-2 Days $8.15
24 03-1544-08 SCREW Ships In 1-2 Days $12.67
25   A32900-020 BREAKER Ships In 1-2 Days $692.21
26   A38071-022 AUGER - 15 INCHES LONG Ships In 1-2 Days $641.91
27   A32890-020 EVAPORATOR Ships In 1-2 Days $1,019.78
28   03-1405-41 HEX CAP SCREW Ships In 1-2 Days $5.46
29   A32962-001 INSULATION - REPLACED BY 02-4358-01
