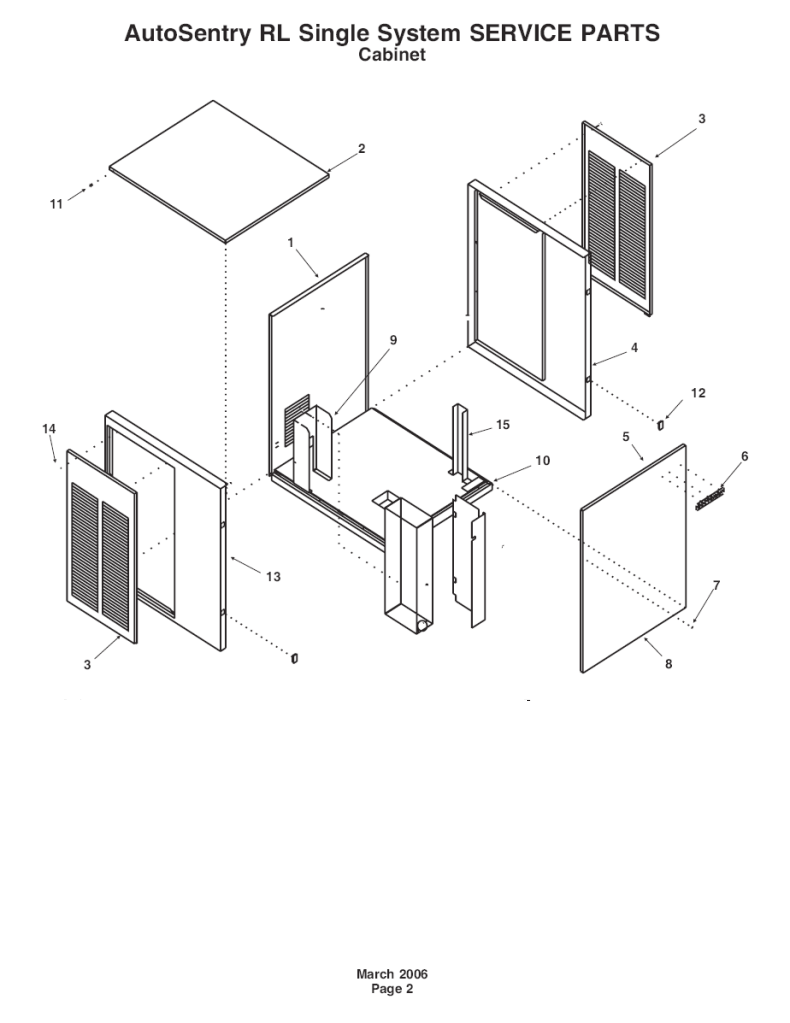

Scotsman NME954RL Parts Diagram

Currently Viewing: NME954RL Cabinet Assembly > Go Back To Other Parts Lists

Parts List Begins Below The Diagram Image

Jump To The Parts List

click to open the full-size image in a new window

Item		Part#	Description	Stock	Price	Qty
1		A38246-001	BACK PANEL	Ships In 1-2 Days	$79.86
2		A33256-002	TOP PANEL	Ships In 1-2 Days	$197.76
3		A33946-032	PANEL-SERVICE	Ships In 1-2 Days	$104.58
4		A33292-002	END PANEL RT.	Ships In 1-2 Days	$116.89
5		03-0271-00	NUT - OBSOLETE, NO REPLACEMENT
6		15-0808-03	EMBLEM - STICK ON - REPLACED BY 15-0808-01
7		03-1419-22	SCREW	Ships In 1-2 Days	$1.85
8		A33255-002	FT. PANEL	Ships In 1-2 Days	$261.18
		A39048-001	FRONT PANEL SOLID	Ships In 1-2 Days	$136.55
9		A34039-001	SUPPORT	Ships In 1-2 Days	$57.94
10		A35890-001	BASE - REPLACED BY A35890-020
11		03-1531-01	SCREW	Ships In 1-2 Days	$1.85
12		02-0836-00	CATCH ZINC	Ships In 1-2 Days	$11.30
13		A32435-002	END PANEL LEFT	Ships In 1-2 Days	$225.89
14		03-1404-12	SCREW	Ships In 1-2 Days	$1.85
15 NLA a36078-001
