Scotsman NME1850
Currently Viewing: NME1850 Control Box  > Go Back To Other Parts Lists

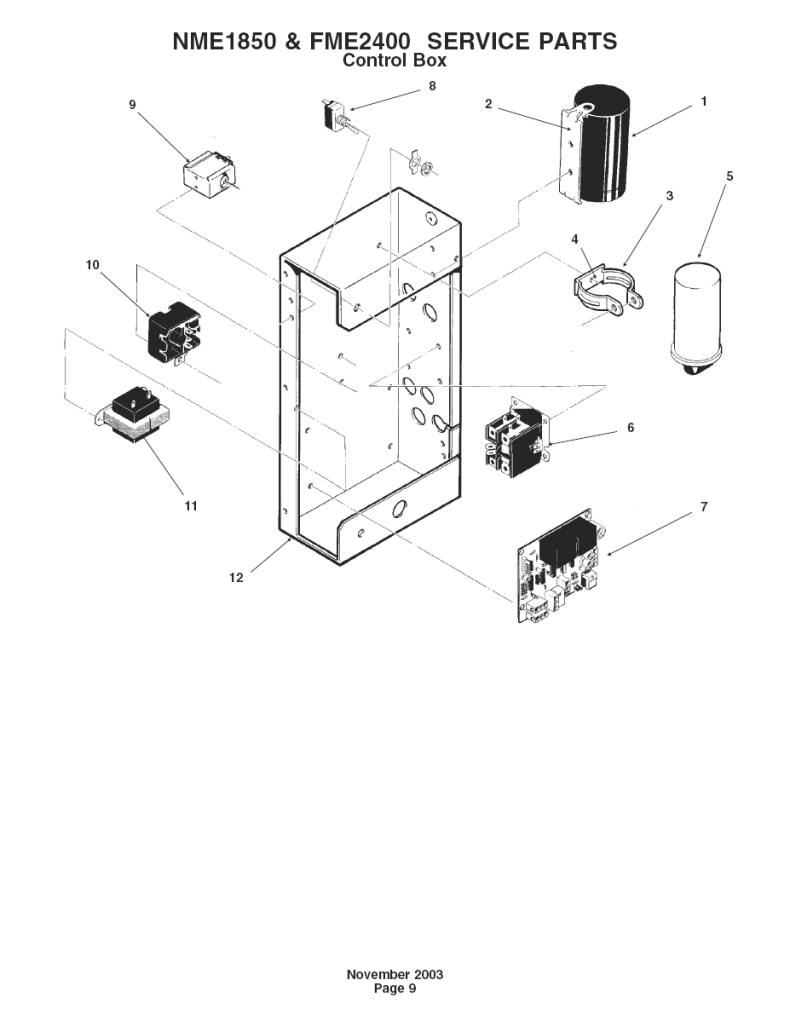

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1 60hz   18-1901-54 START CAPACITOR Ships In 1-2 Days $93.75
50hz   18-1901-53 START CAPACITOR Ships In 1-2 Days $102.03
  18-2200-38 CAPACITOR CAP Special Order - -Ships in 3-4 Weeks $11.93
2   18-2200-39 BRACKET - OBSOLETE, NO REPLACEMENT
  03-1638-04 SCREW - OBSOLETE, NO REPLACEMENT
NLA 03-1417-15
3   A32872-001 BRACKET -OBSOLETE
NLA 03-1652-02
NLA 03-0255-04
4   03-1638-03 SCREW Ships In 1-2 Days $1.85
5 60hz   18-1902-45 RUN CAPACITOR Ships In 1-2 Days $65.22
50hz 18-1902-53 RUN CAPACITOR Ships In 1-2 Days $70.59
6   12-2469-02 CONTACTOR Ships In 1-2 Days $75.89
  12-0739-02 MAG RELAY Ships In 1-2 Days $140.31
7   A37750-022 CONTROL BOARD KIT A37750-022 Ships In 1-2 Days $502.54
8   12-0426-01 TOGGLE SWITCH - OBSOLETE
9   11-0447-20 PRESSURE CONTROL Ships In 1-2 Days $123.59
10 60hz   18-1903-33 RELAY Ships In 1-2 Days $95.78
50hz   18-1903-29 RELAY Ships In 1-2 Days $84.99
11   12-2285-22 TRANSFORMER Ships In 1-2 Days $108.29
12 No Number: Control Box
Not Illustrated:
13   12-2340-01 PLUG Ships In 1-2 Days $18.37
14   A34055-001 COVER CONTROL BOX - OBSOLETE, NO REPLACEMENT
