Scotsman NME2054RL
Currently Viewing: NME2054RL Evaporator  > Go Back To Other Parts Lists

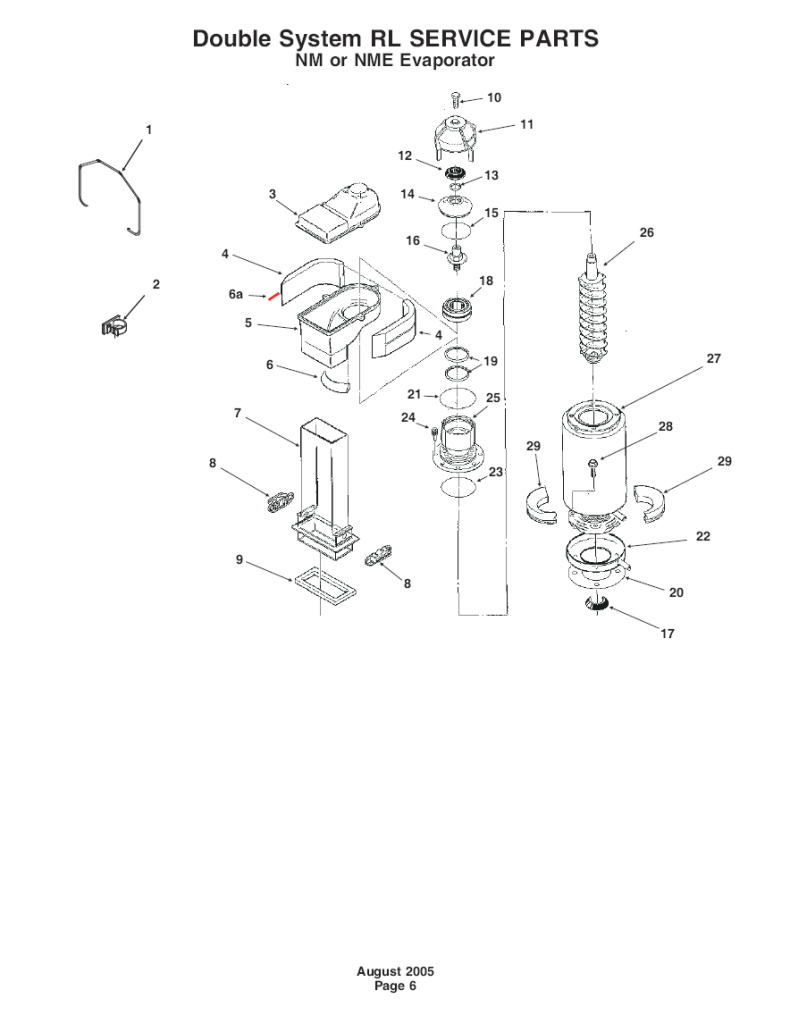

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   A34969-001 BAIL/CLAMP Ships In 1-2 Days $28.82
2   02-3268-01 HOSE CLIP Ships In 1-2 Days $14.54
3   02-2930-04 ICE CHUTE COVER Ships In 1-2 Days $35.83
4   A32963-001 INSULATION TOP HALF Ships In 1-2 Days $23.29
5   02-3841-01 CHUTE BODY & INSULAT Ships In 1-2 Days $40.97
6   A33102-001 INSULATION COLLAR IN Ships In 1-2 Days $18.11
6a   A35419-020 STRAP KIT Ships In 1-2 Days $32.52
7   02-2929-04 ICE CHUTE LOWER Ships In 1-2 Days $45.85
8   A37708-021 BIN LEVEL CONTROL Ships In 1-2 Days $98.87
9   A32930-001 CHUTE GASKET Ships In 1-2 Days $21.55
10   03-1405-52 HEX CAP SCREW Ships In 1-2 Days $10.46
11 02-3001-01 ICE SWEEP Ships In 1-2 Days $42.02
12   13-0871-01 WATER SHED Ships In 1-2 Days $26.71
13 02-2978-01 LIP SEAL Ships In 1-2 Days $31.84
14   02-3128-20 COVER Ships In 1-2 Days $45.88
15   13-0617-52 O-RING Ships In 1-2 Days $16.79
16   08-0660-01 AUGER STUD Ships In 1-2 Days $91.38
17   02-4663-01 WATER SHED Ships In 1-2 Days $33.78
18   A34559-020 BEARING-SERVICE Ships In 1-2 Days $180.03
19 02-2977-01 LIP SEAL Ships In 1-2 Days $41.88
20 13-0704-00 GASKET Ships In 1-2 Days $9.79
21   13-0617-54 0-RING Ships In 1-2 Days $8.83
22   02-3826-01 DRAIN HOSE Ships In 1-2 Days $43.03
23   13-0617-45 O-RING Ships In 1-2 Days $8.15
24 03-1544-08 SCREW Ships In 1-2 Days $12.67
25   A32900-020 BREAKER Ships In 1-2 Days $692.21
26   A38071-022 AUGER - 15 INCHES LONG Ships In 1-2 Days $641.91
27   A32890-020 EVAPORATOR Ships In 1-2 Days $1,019.78
28 NLA 03-1420-03
29   A32962-001 INSULATION - REPLACED BY 02-4358-01
