Scotsman NSE650 | nt-ice.com - Parts & Accessories for Scotsman Icemakers

You Are Here: Home > Scotsman NSE650

Scotsman NSE650

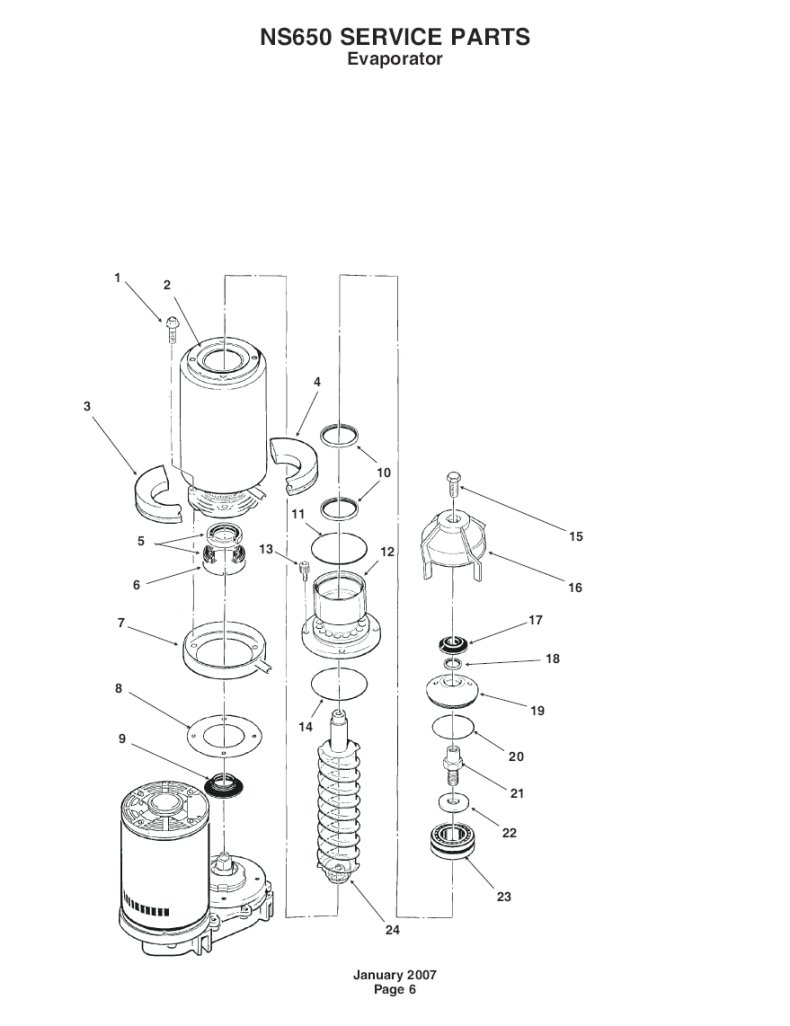

Currently Viewing: NS650 Evaporator > Go Back To Other Parts Lists

Parts List Begins Below The Diagram Image

Jump To The Parts List

click to open the full-size image in a new window

Item		Part#	Description	Stock	Price	Qty
1		02-4663-01	WATER SHED	Ships In 1-2 Days	$33.78
2		A32379-026	BOLT - (6) PER PACK	Ships In 1-2 Days	$36.34
3		A32379-022	GEAR CASE TOP	Ships In 1-2 Days	$824.28
4		A32379-024	SCOTSMAN FIRST GEAR & BEARING	Ships In 1-2 Days	$366.85
5		A32379-023	SECOND GEAR - BEARING	Ships In 1-2 Days	$219.85
6		A32379-021	GASKET	Ships In 1-2 Days	$24.89
7		A32379-020	Scotsman Gear Case - A32379-020	Ships In 1-2 Days	$292.45
8		12-2430-24	START SWITCH	Ships In 1-2 Days	$156.80
		12-2430-44	SWITCH START GE SPLI	Ships In 1-2 Days	$55.09
9		12-2430-21	MOTOR 115 V.	Ships In 1-2 Days	$603.38
10		12-2430-29	MOTOR BEARING	Ships In 1-2 Days	$97.44
		12-2430-49	BEARING - MOTOR GE	Ships In 1-2 Days	$40.95
11		A32379-028	SEAL	Ships In 1-2 Days	$46.84
12		A32379-027	Scotsman Gear Reducer Lubricant	Ships In 1-2 Days	$28.95
		A33220-021	Scotsman Gear Reducer Motor - 115V - A33220-021	Ships In 1-2 Days	$1,499.40
		A33220-030	REDUCER - LESS MOTOR	Ships In 1-2 Days	$976.00
