Scotsman NSE654
Currently Viewing: NSE654 Water System  > Go Back To Other Parts Lists

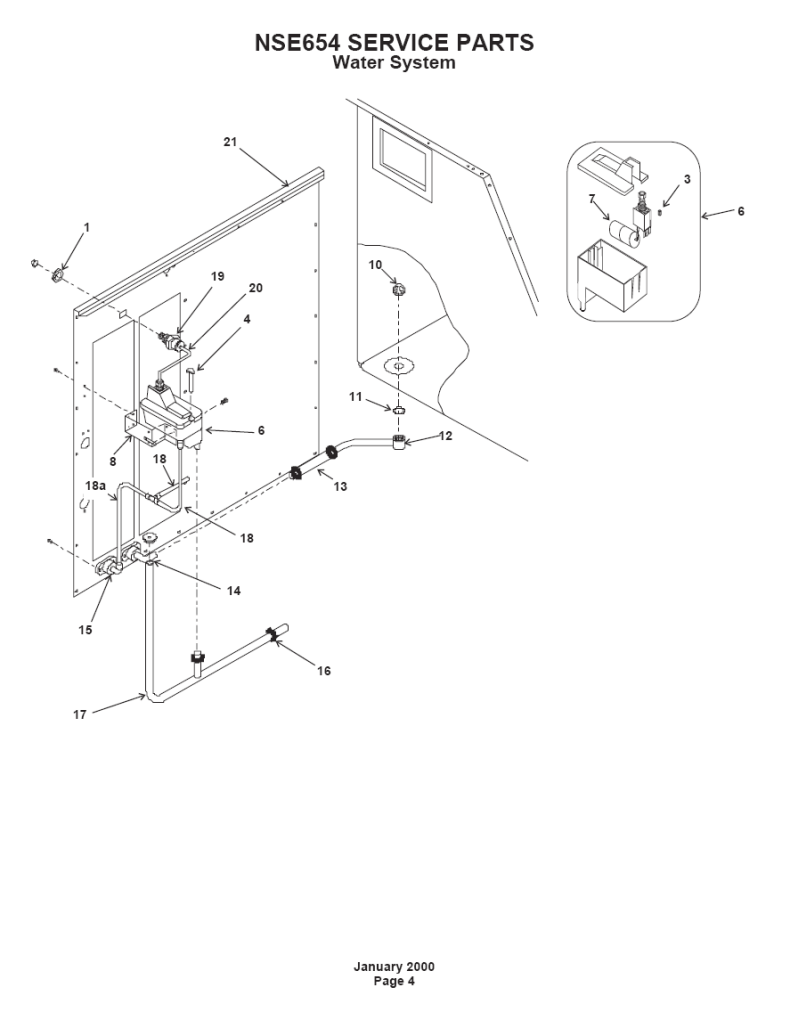

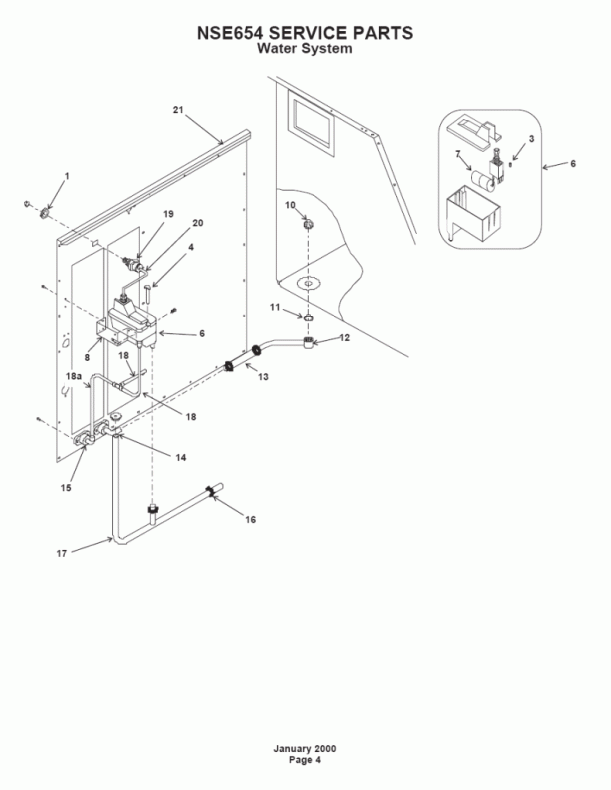

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   03-1394-01 NUT Ships In 1-2 Days $4.21
2 NLA a27319-001
3 02-3266-02 Scotsman Valve - 02-3266-02 Ships In 1-2 Days $73.15
4   12-2760-21 SENSOR WATER LEVEL Ships In 1-2 Days $90.76
5   16-0162-01 STRAINER Ships In 1-2 Days $34.89
6 02-3266-20 Scotsman Reservoir - 02-3266-20 Ships In 1-2 Days $120.16
7   02-3266-21 Scotsman Valve - 02-3266-21
8   A34037-001 BRACKET RESERVOIR - REPLACED BY A34037-015
9   13-0840-01 RUBBER PLUG Special Order - Ships In 3-4 Weeks $2.96
10 02-2809-01 DRAIN TOP Ships In 1-2 Days $10.68
11 13-0617-11 O RING Ships In 1-2 Days $4.92
12   02-2602-01 DRAIN OVERFLOW Ships In 1-2 Days $45.42
13   13-0674-06 TUBING - PER FT. Ships In 1-2 Days $8.63
14   A31828-005 DRAIN Ships In 1-2 Days $47.97
15   A31828-007 DRAIN CASTING
16 NLA 02-1338-00
17 NLA a36154-003
18 2ft   13-0079-03 RUBBER TUBING Ships In 1-2 Days $6.80
18a 1ft   13-0079-03 RUBBER TUBING Ships In 1-2 Days $6.80
19   16-0835-01 FITTING Ships In 1-2 Days $43.36
  16-1039-01 CONNECTOR MALE Ships In 1-2 Days $25.68
20   13-0895-01 HOSE - PER FT. Ships In 1-2 Days $1.84
21 back panel for reference
