Scotsman RS100

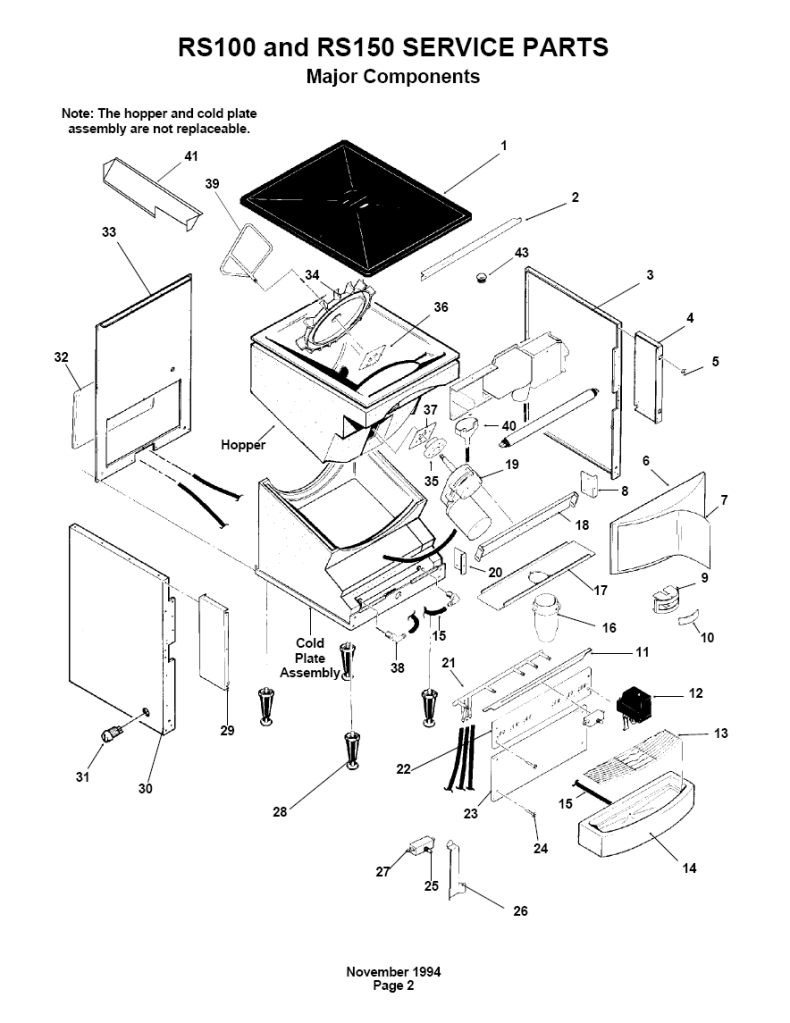

Currently Viewing: RS100 Major Components  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   02-3047-02 LID BLACK Ships In 1-2 Days $93.34
  02-3047-01 LID GREY - REPLACED BY 02-3047-02
2   A34788-001 BRACE - OBSOLETE, NO REPLACEMENT
B Model Panels
3   A35252-003 RT.SIDE PANEL -OBSOLETE
NLA a35252-001
B Model Panels
4
NLA a35257-001
  A35257-004 PANEL SIDE EXTENSION - OBSOLETE, NO REPLACEMENT
5   02-0836-00 CATCH ZINC Ships In 1-2 Days $11.30
6 NLA 02-03046-06
NLA 02-3046-02
NLA 02-3046-08
NLA 02-3046-04
  02-3084-01 BUTTON Ships In 1-2 Days $2.63
7   15-0752-01 SIGN - COKE Ships In 1-2 Days $227.44
  15-0752-02 SIGN - PEPSI Ships In 1-2 Days $150.66
  15-0752-03 SIGN - RS GENERIC - OBSOLETE, NO REPLACEMENT
8   A34784-002 BRACKET - OBSOLETE, NO REPLACEMENT
9   02-3071-01 HOUSING - OBSOLETE
10   02-3072-01 BUTTON
  02-3096-02 SPRING Ships In 1-2 Days $33.85
11   A34799-001 BRCKET -OBSOLETE
12   11-0468-01 VALVE - OBSOLETE, NO REPLACEMENT
13   02-3078-01 CUP REST - REPLACED BY A36852-001
14 NLA 02-3048-02
NLA 02-3048-01
15 NLA 13-0674-13
  13-0674-07 TUBING - PER FT. Ships In 1-2 Days $15.26
16   02-3068-01 CHUTE Ships In 1-2 Days $37.20
NLA 02-3068-02
17   A34797-001 PANEL - OBSOLETE, NO REPLACEMENT
18 NLA a34786-001
19 NLA 12-2369-01
20   A34784-001 BRACKET - OBSOLETE, NO REPLACEMENT
21 NLA 02-3085-01
  02-3085-02 MANIFOLD - OBSOLETE, NO REPLACEMENT
22   A34794-001 PANEL - OBSOLETE, NO REPLACEMENT
  A34794-002 PANEL -OBSOLETE
NLA a34794-003
  A34794-004 PANEL - OBSOLETE, NO REPLACEMENT
23   A35255-001 SPLASH PANEL Ships In 1-2 Days $169.10
24   03-1419-22 SCREW Ships In 1-2 Days $1.85
25   12-2372-01 BOOT - OBSOLETE, NO REPLACEMENT
26   A34806-001 LEVER - OBSOLETE
27   12-1570-00 SWITCH Ships In 1-2 Days $38.84
28 NLA 02-3124-01
B Model Panels
29 NLA a35257-001
  A35257-004 PANEL SIDE EXTENSION - OBSOLETE, NO REPLACEMENT
B Model Panels
30   A35252-004 LT.SIDE PANEL -OBSOLETE
NLA a35252-002
31   12-2391-01 SWITCH Ships In 1-2 Days $35.88
32 NLA a34783-001
  A34783-002 PANEL - obsolete
33 NLA a35253-001
NLA a35253-002
34   02-3040-01 ROTOR Ships In 1-2 Days $83.35
35   A34760-001 HUB Ships In 1-2 Days $225.39
36   A34810-001 HUB - REPLACED BY A38145-001
37   A34817-001 PLATE Ships In 1-2 Days $27.03
38 No Number: Threaded Elbow
39   A36846-002 SWEEP ARM RS/IS 220 Ships In 1-2 Days $129.54
40   02-3102-01 FUNNEL -OBSOLETE
42   A34922-001 WIRE SHIELD - OBSOLETE, NO REPLACEMENT
43   02-3418-01 DRAIN TOP -OBSOLETE
