Scotsman RS100
Currently Viewing: RS100 Service Parts  > Go Back To Other Parts Lists

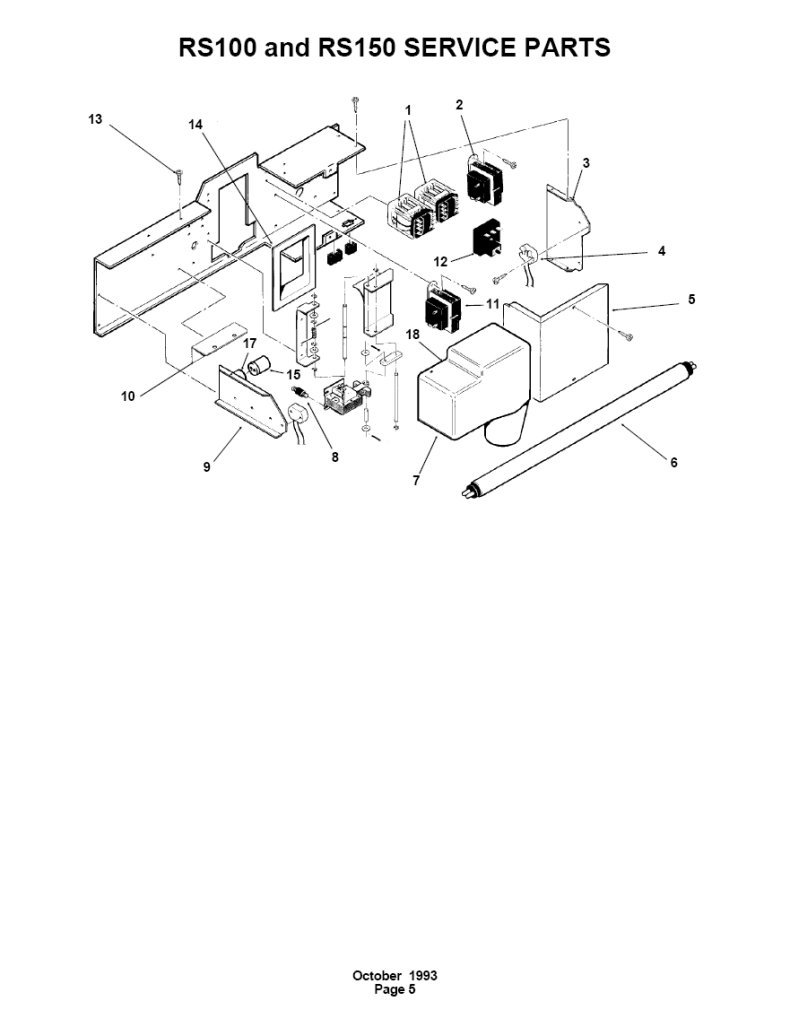

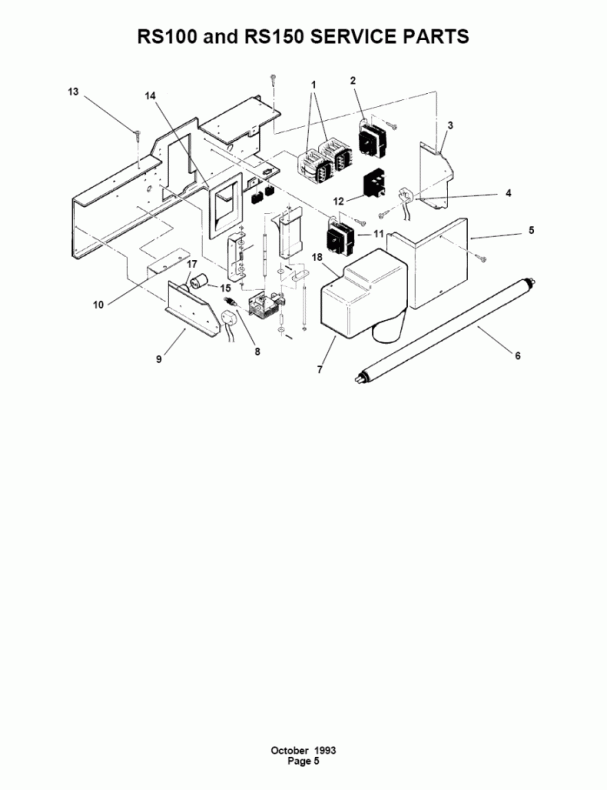

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   12-2090-02 RELAY Ships In 1-2 Days $60.06
NLA 12-2483-01
  12-2483-02 RELAY Special Order - -Ships in 3-4 Weeks $67.20
2   12-2390-01 TRANSFORMER Ships In 1-2 Days $115.53
3   A34889-001 BRACKET - OBSOLETE, NO REPLACEMENT
4   12-2385-01 HOLDER - OBSOLETE
5   A34803-001 COVER - OBSOLETE, NO REPLACEMENT
6   12-2377-01 BULB Ships In 1-2 Days $27.92
7   02-3067-01 COVER - REPLACED BY A38087-001
8   13-0882-01 MOUNTS Ships In 1-2 Days $26.06
9   A34890-001 BRACKET - OBSOLETE, NO REPLACEMENT
10   A34873-001 BRACKET - OBSOLETE, NO REPLACEMENT
11   12-2390-01 TRANSFORMER Ships In 1-2 Days $115.53
12   12-2371-01 TIMER - OBSOLETE
13 03-0727-06 THUMB SCREW Ships In 1-2 Days $8.18
14   02-3188-20 SPOUT - Obsolete
15   12-2386-01 STARTER Ships In 1-2 Days $7.75
16   12-2380-01 BALLAST - OBSOLETE, NO REPLACEMENT
  12-2484-01 BALLAST Ships In 1-2 Days $35.82
17   12-2395-01 SOCKET Ships In 1-2 Days $26.75
18   A34920-001 COVER Ships In 1-2 Days $33.39
19 13-0595-00 DOOR GASKET PER FT. Ships In 1-2 Days $5.83
