Scotsman RS220

Currently Viewing: RS220 Cabinet > Go Back To Other Parts Lists

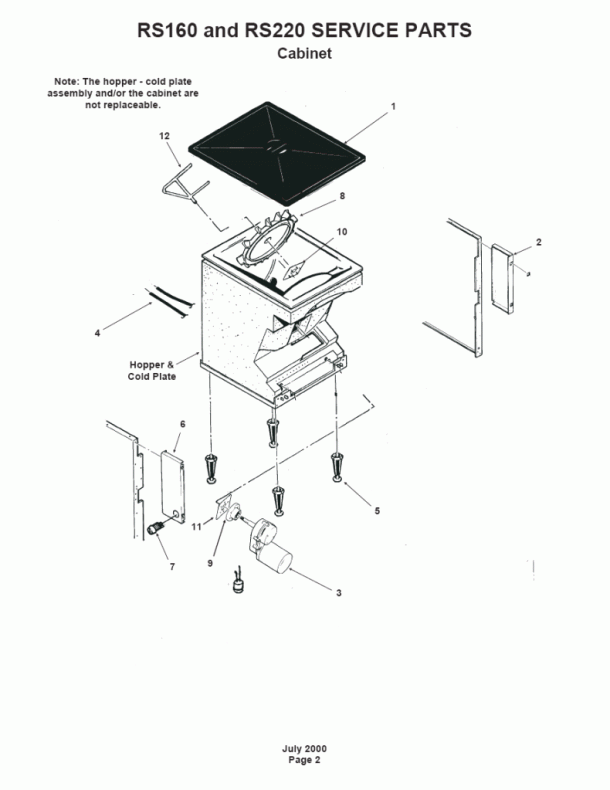

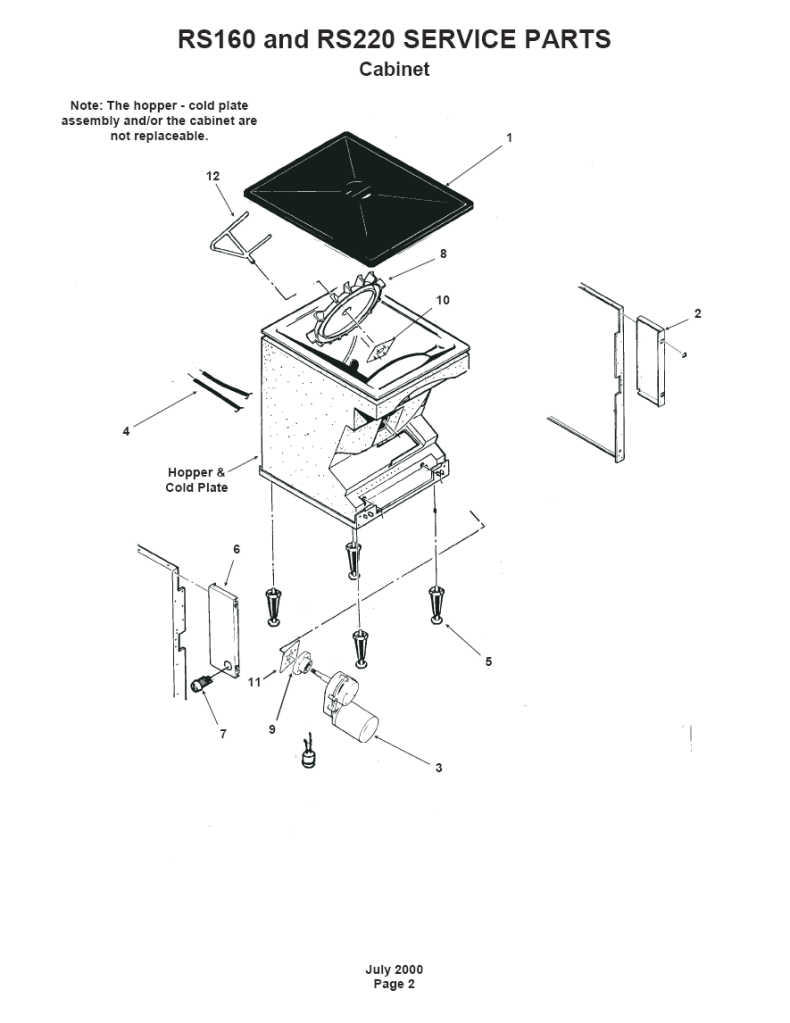

Parts List Begins Below The Diagram Image

Jump To The Parts List

click to open the full-size image in a new window

Item		Part#	Description	Stock	Price	Qty
1		A36843-004	LID BLACK	Ships In 1-2 Days	$152.64
		A36843-003	LID GRAY - REPLACED BY A36843-004
2		A36844-003	PANEL RIGHT PAINTED - OBSOLETE, NO REPLACEMENT
		A36844-004	PANEL RIGHT SS -OBSOLETE	Ships 1 - 2 Days	$293.41
3 NLA 12-2369-01
4		A36847-001	DRAIN HOSE - OBSOLETE
5 NLA 02-3124-01
6		A36844-001	PANEL LEFT PAINTED - OBSOLETE, NO REPLACEMENT
		A36844-002	PANEL LEFT SS -OBSOLETE
7		12-2391-01	SWITCH	Ships In 1-2 Days	$35.88
8		02-3040-01	ROTOR	Ships In 1-2 Days	$83.35
9		A34760-001	HUB	Ships In 1-2 Days	$225.39
10		A34810-001	HUB - REPLACED BY A38145-001
11		A34817-001	PLATE	Ships In 1-2 Days	$27.03
12		A36846-002	SWEEP ARM RS/IS 220	Ships In 1-2 Days	$129.54
