Scotsman CM550 Contour Cube Ice Machine

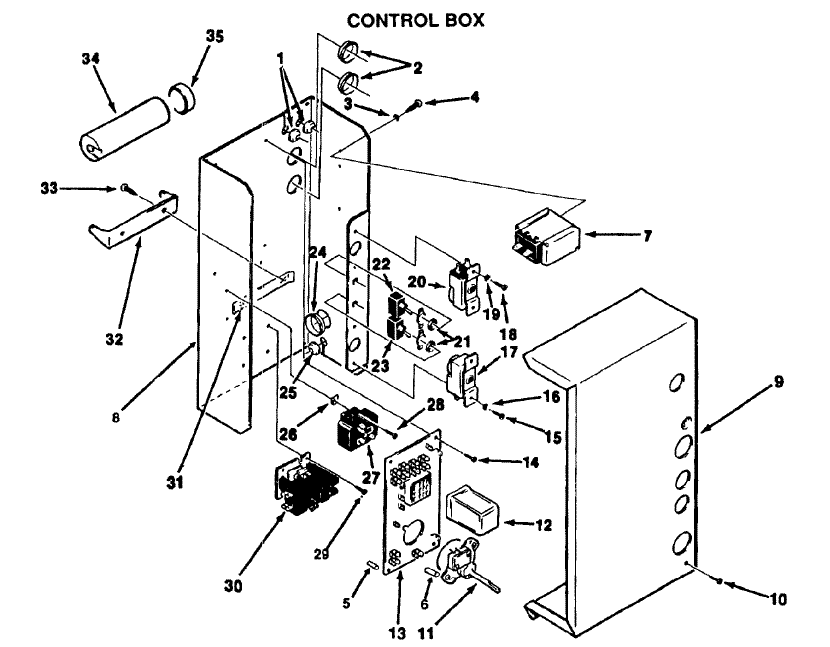

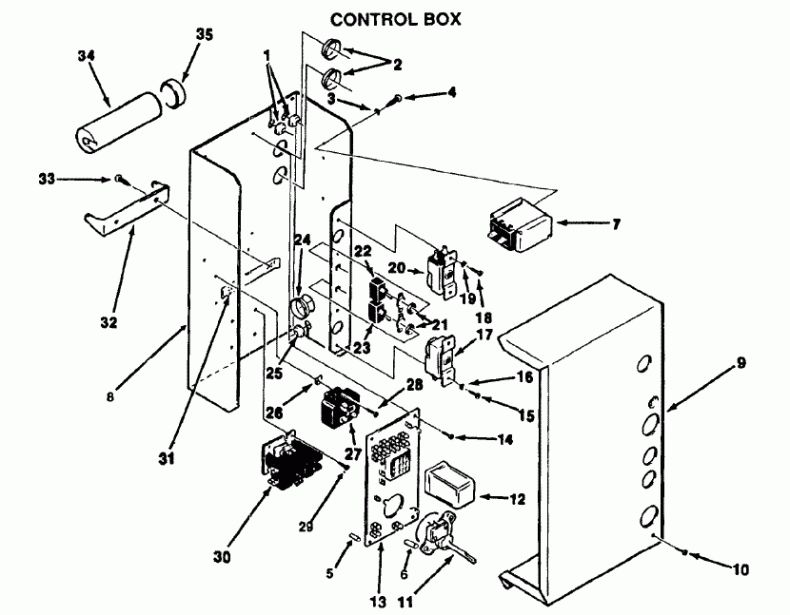

Currently Viewing: Control Box  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   13-0557-00 GROMMET Ships In 1-2 Days $3.65
2   12-1213-10 BUSHING Ships In 1-2 Days $1.85
3   03-1417-18 TOOTHED LOCKWASHER - OBSOLETE, NO REPLACEMENT
4   03-1403-03 SCREW - 03-1403-03 Ships In 1-2 Days $1.85
5   02-2242-02 STAND-OFFS - OBSOLETE, NO REPLACEMENT
6   02-2242-01 STAND-OFFS - OBSOLETE, NO REPLACEMENT
7   11-0425-21 PRESSURE CONTROL Ships In 1-2 Days $119.22
9   A32168-001 CONTROL BOX COVER - OBSOLETE, NO REPLACEMENT
10   03-1531-01 SCREW Ships In 1-2 Days $1.85
11 12-1980-21 TIMER -REPLACED BY 12-2317-21
12 12-1879-02 Scotsman Relay - 12-1879-02 Ships In 1-2 Days $56.91
13 12-1912-01 Scotsman Circuit Board - 12-1912-01 Ships In 1-2 Days $90.68
14   03-1403-03 SCREW - 03-1403-03 Ships In 1-2 Days $1.85
15   03-1403-06 SCREW Ships In 1-2 Days $0.92
16   03-1417-03 TOOTHED LOCKWASHERS - OBSOLETE, NO REPLACEMENT
17 11-0427-22 Scotsman Bin Thermostat Control - 11-0427-22 Ships In 1-2 Days $106.95
18   03-1403-06 SCREW Ships In 1-2 Days $0.92
19   03-1417-03 TOOTHED LOCKWASHERS - OBSOLETE, NO REPLACEMENT
20 11-0435-21 Scotsman Cube Size Control - 11-0435-21 Ships In 1-2 Days $132.81
21   03-1417-16 TOOTHED LOCKWASHER Ships In 1-2 Days $1.85
22   12-0426-01 TOGGLE SWITCH - OBSOLETE
23   12-0426-01 TOGGLE SWITCH - OBSOLETE
24   12-1213-17 BUSHING - OBSOLETE, NO REPLACEMENT
25   13-0557-00 GROMMET Ships In 1-2 Days $3.65
26   03-1423-01 SPEED NUT - OBSOLETE, NO REPLACEMENT
27   18-1903-44 RELAY Ships In 1-2 Days $101.39
28   03-1403-03 SCREW - 03-1403-03 Ships In 1-2 Days $1.85
29   03-1403-15 SCREW Ships In 1-2 Days $1.85
30 12-2469-03 Scotsman Contactor - 12-2469-03 Ships In 1-2 Days $73.02
31 Obsolete
32   18-2200-39 BRACKET - OBSOLETE, NO REPLACEMENT
33   03-1403-15 SCREW Ships In 1-2 Days $1.85
34   18-1901-42 START CAPACITOR Special Order - Ships In 3-4 Weeks $63.86
