Scotsman CM650E Contour Cube Ice Machine
Currently Viewing: Water Cooler Refrigeration  > Go Back To Other Parts Lists

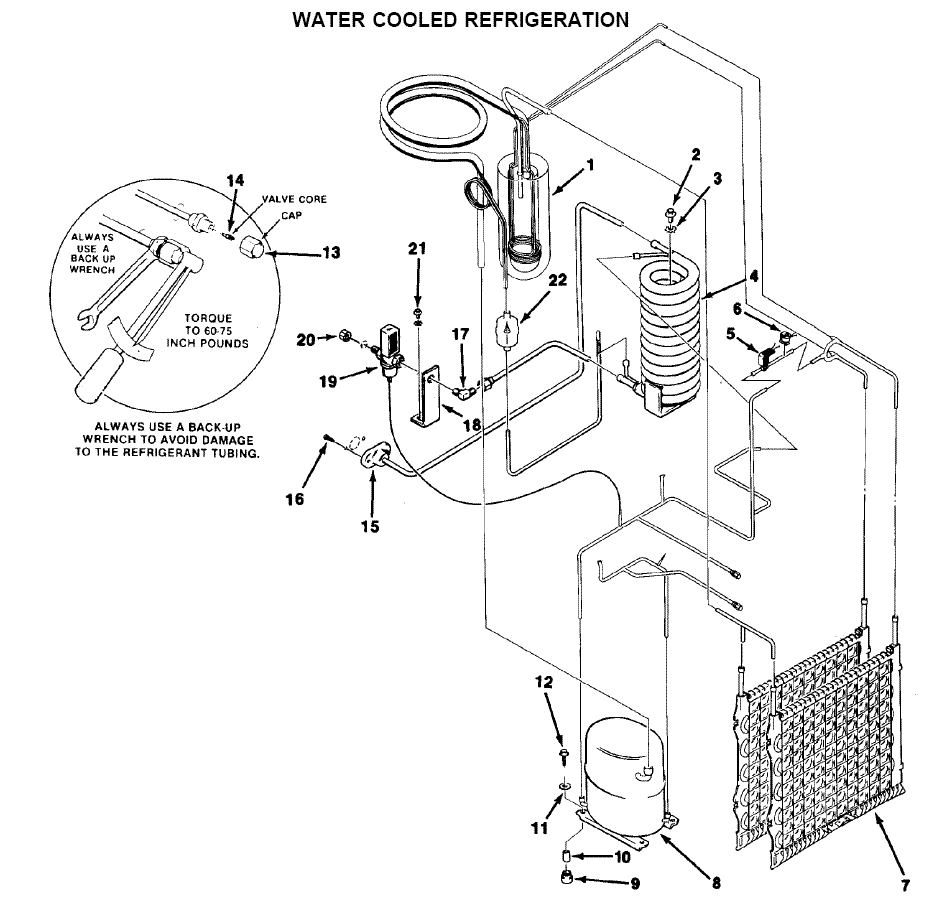

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   A32174-020 HEAT EXCHANGER -OBSOLETE
2   03-1645-01 SCREW Ships In 1-2 Days $0.92
3   03-1417-09 TOOTHED LOCKWASHERS - OBSOLETE
4   18-6900-25 CONDENSER W/C, A - E Series Ships In 1-2 Days $658.28
5   12-2135-02 HOT GAS SOL. VALVE Ships In 1-2 Days $210.04
6   12-2300-03 CONTROL CUT-0UT
7   A30296-020 EVAPORATOR- INDIVIDUAL Ships In 1-2 Days $621.99
8 208-230v/1 phase   18-8879-21 COMPRESSOR
208-230V/3Ph   18-8879-22 COMPRESSOR - OBSOLETE, NO REPLACEMENT
9   18-6800-01 GROMMET - OBSOLETE, NO REPLACEMENT
10   18-2300-26 MOUNTING SLEEVE Ships In 1-2 Days $5.81
11   03-1407-07 TYPE A PLAIN WASHER Ships In 1-2 Days $2.63
12   03-1405-20 HEX CAP SCREW Ships In 1-2 Days $1.85
13   16-0563-00 BRASS CAP Ships In 1-2 Days $14.17
14   16-0560-00 VALVE CORE Ships In 1-2 Days $4.72
15 A33363-001 Obsolete
16   03-1403-14 SCREW Ships In 1-2 Days $1.85
17 16-0401-02 Obsolete
19 11-0424-01 WATER REG. VALVE Special Order - Ships In 3-4 Weeks $180.83
20   03-1394-01 NUT Ships In 1-2 Days $4.21
21   03-1403-14 SCREW Ships In 1-2 Days $1.85
22   02-3319-02 DRIER Ships In 1-2 Days $34.34
