Scotsman CM650E Contour Cube Ice Machine

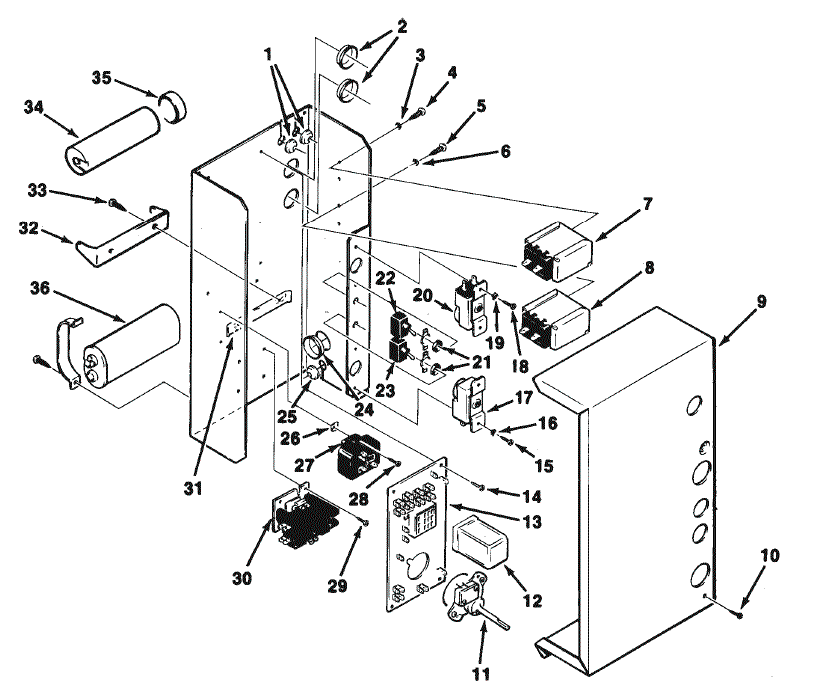

Currently Viewing: Control Box  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   13-0557-00 GROMMET Ships In 1-2 Days $3.65
2   12-1213-10 BUSHING Ships In 1-2 Days $1.85
3   03-1417-18 TOOTHED LOCKWASHER - OBSOLETE, NO REPLACEMENT
4   03-1403-03 SCREW - 03-1403-03 Ships In 1-2 Days $1.85
5   03-1403-03 SCREW - 03-1403-03 Ships In 1-2 Days $1.85
6   03-1417-18 TOOTHED LOCKWASHER - OBSOLETE, NO REPLACEMENT
7   11-0426-21 PRESSURE CONTROL - REPLACED BY 11-0426-22
8 (Air Cooled)   11-0425-21 PRESSURE CONTROL Ships In 1-2 Days $119.22
8 (Water Cooled)   11-0410-22 PRESSURE CONTROL -OBSOLETE
9   A32168-001 CONTROL BOX COVER - OBSOLETE, NO REPLACEMENT
10   03-1531-01 SCREW Ships In 1-2 Days $1.85
11   12-2317-22 Scotsman Timer & Switch 230V - 12-2317-22 Ships In 1-2 Days $118.84
12   12-1879-03 Scotsman Relay - 12-1879-03 Ships In 1-2 Days $56.25
13 12-1912-01 Scotsman Circuit Board - 12-1912-01 Ships In 1-2 Days $90.68
14   03-1403-03 SCREW - 03-1403-03 Ships In 1-2 Days $1.85
15   03-1403-06 SCREW Ships In 1-2 Days $0.92
16   03-1417-03 TOOTHED LOCKWASHERS - OBSOLETE, NO REPLACEMENT
17 11-0427-22 Scotsman Bin Thermostat Control - 11-0427-22 Ships In 1-2 Days $106.95
18   03-1403-06 SCREW Ships In 1-2 Days $0.92
19   03-1417-03 TOOTHED LOCKWASHERS - OBSOLETE, NO REPLACEMENT
20 11-0428-21 Scotsman Cube Size Control - 11-0428-21 Ships In 1-2 Days $101.28
21   03-1417-16 TOOTHED LOCKWASHER Ships In 1-2 Days $1.85
22   12-0426-01 TOGGLE SWITCH - OBSOLETE
23   12-0426-01 TOGGLE SWITCH - OBSOLETE
24   12-1213-17 BUSHING - OBSOLETE, NO REPLACEMENT
25   13-0557-00 GROMMET Ships In 1-2 Days $3.65
26   03-1423-01 SPEED NUT - OBSOLETE, NO REPLACEMENT
27   18-1903-46 RELAY Ships In 1-2 Days $74.19
28   03-1403-03 SCREW - 03-1403-03 Ships In 1-2 Days $1.85
29   03-1403-15 SCREW Ships In 1-2 Days $1.85
30 208-230v/1phase   12-2469-02 CONTACTOR Ships In 1-2 Days $75.89
208-230v/3 phase   12-0739-02 MAG RELAY Ships In 1-2 Days $140.31
31 Speed Nut- Obsolete
32   18-2200-39 BRACKET - OBSOLETE, NO REPLACEMENT
33   03-1403-15 SCREW Ships In 1-2 Days $1.85
34   18-1901-48 START CAPACITOR Ships In 1-2 Days $73.39
35   18-2200-38 CAPACITOR CAP Special Order - -Ships in 3-4 Weeks $11.93
36   18-1902-45 RUN CAPACITOR Ships In 1-2 Days $65.22
