Scotsman CM1400 Contour Cube Ice Machine
Currently Viewing: Cabinet  > Go Back To Other Parts Lists

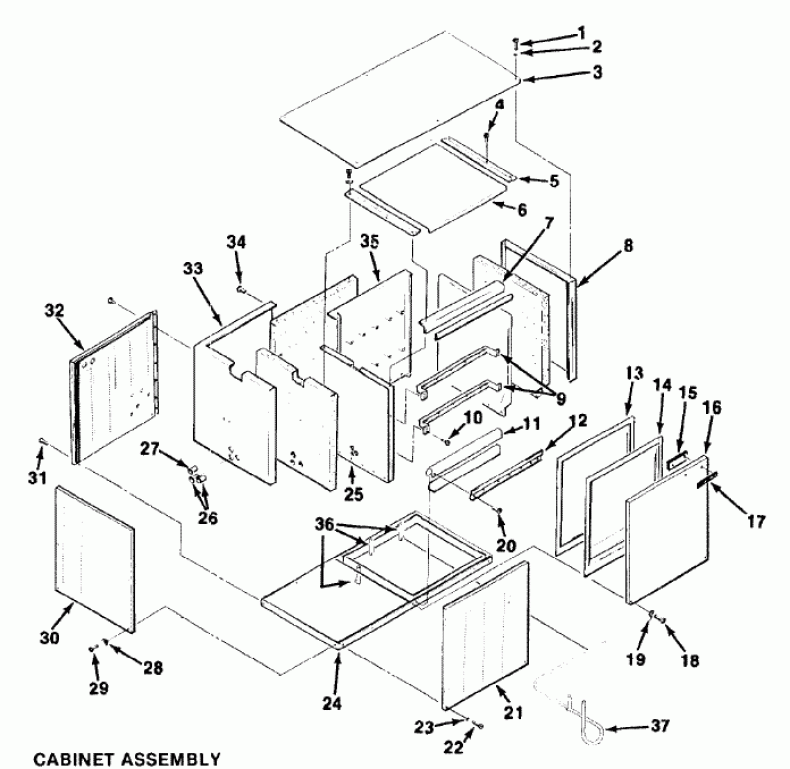

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   03-1404-09 SCREW Ships In 1-2 Days $0.92
2   03-1407-03 TYPE A PLAIN WASHERS Ships In 1-2 Days $1.85
3   A30744-002 PANEL TOP SS - OBSOLETE, NO REPLACEMENT
4   03-1404-10 SCREW Ships In 1-2 Days $0.92
5 Obsolete
6 Obsolete
7 Obsolete
8   A29164-002 PANEL RIGHT SIDE SS - OBSOLETE, NO REPLACEMENT
9   A29204-001 BRACE-FRONT - OBSOLETE, NO REPLACEMENT
10   03-1404-10 SCREW Ships In 1-2 Days $0.92
11   02-2532-01 LINER CAP - OBSOLETE, NO REPLACEMENT
12 Obsolete
13 13-0595-00 DOOR GASKET PER FT. Ships In 1-2 Days $5.83
14   02-2795-01 LINER FRONT PANEL - OBSOLETE, NO REPLACEMENT
15   03-0271-00 NUT - OBSOLETE, NO REPLACEMENT
16   A30743-001 PANEL RIGHT FRONT SA - OBSOLETE, NO REPLACEMENT
17   15-0711-01 EMBLEM SCOTSMAN (BRO Ships In 1-2 Days $33.39
18   03-1404-19 SCREW Ships In 1-2 Days $1.85
19   03-1417-03 TOOTHED LOCKWASHERS - OBSOLETE, NO REPLACEMENT
20   03-1404-10 SCREW Ships In 1-2 Days $0.92
21   A31806-001 PANEL LEFT FRONT SAN - OBSOLETE, NO REPLACEMENT
22   03-1404-19 SCREW Ships In 1-2 Days $1.85
23   03-1417-03 TOOTHED LOCKWASHERS - OBSOLETE, NO REPLACEMENT
24 Obsolete
25   02-2533-01 LINER-LEFT SIDE - OBSOLETE, NO REPLACEMENT
26 Obsolete
27 Obsolete
28   03-1407-03 TYPE A PLAIN WASHERS Ships In 1-2 Days $1.85
29   03-1404-10 SCREW Ships In 1-2 Days $0.92
30   A29168-002 PANEL LEFT SIDE SS -OBSOLETE
31   03-1404-09 SCREW Ships In 1-2 Days $0.92
32 Obsolete
33 Obsolete
34   03-1404-09 SCREW Ships In 1-2 Days $0.92
35 Obsolete
36   A31846-001 BRACKET BIN CONTROL - OBSOLETE, NO REPLACEMENT
37   A35068-001 BIN BRACKET -OBSOLETE
