Scotsman AF1D Self Contained Flaker
Currently Viewing: Water & Drain System  > Go Back To Other Parts Lists

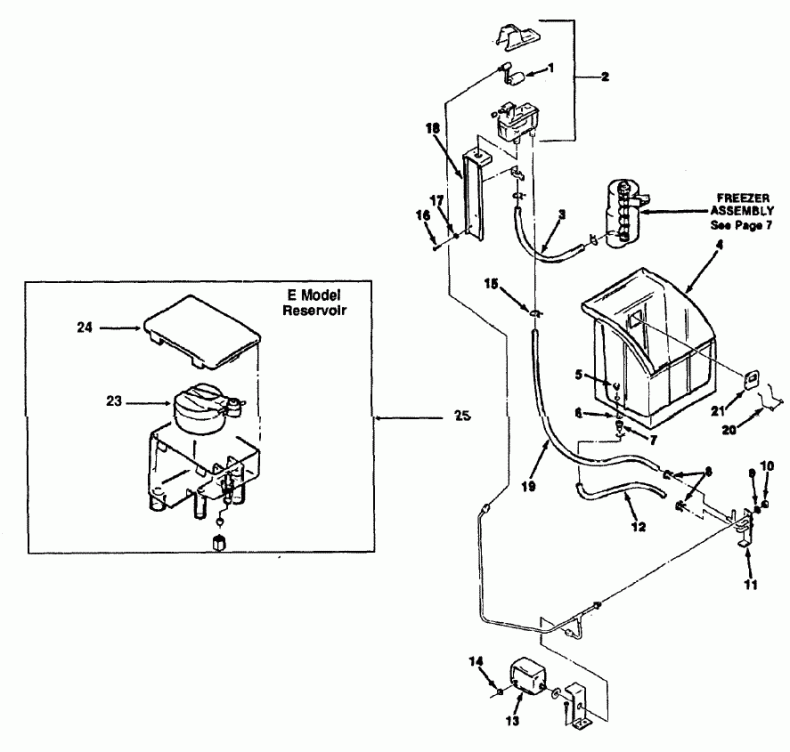

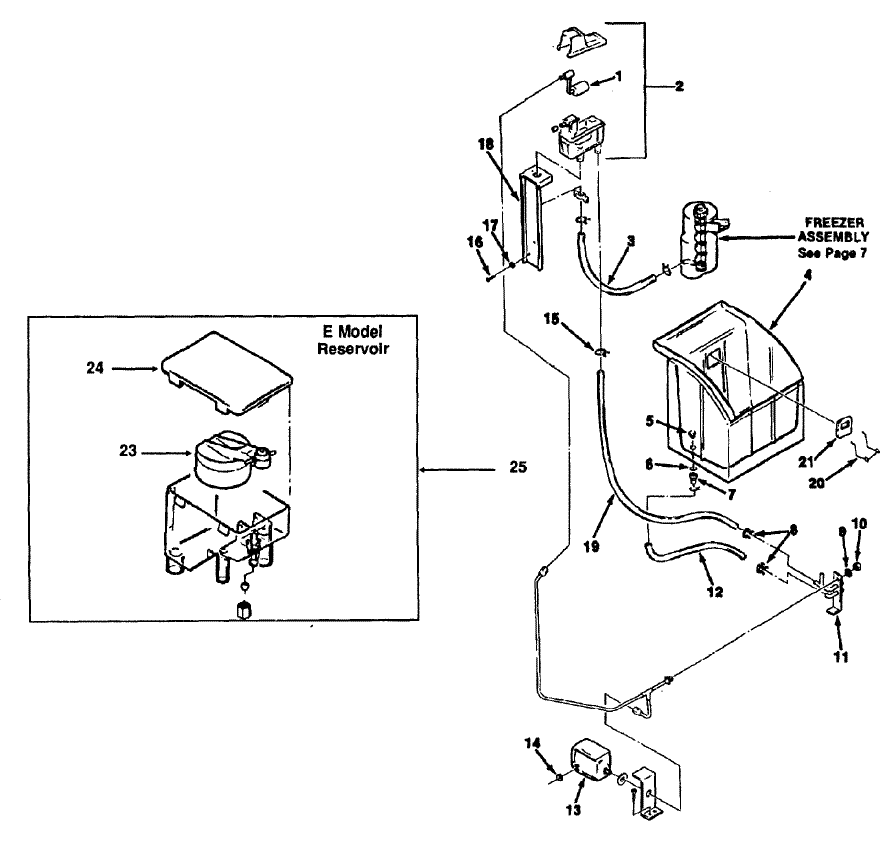

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1 02-2217-02 Scotsman Float & Valve - 02-2217-02 Ships In 1-2 Days $63.59
2 02-2217-01 Scotsman Reservoir - 02-2217-01 Ships In 1-2 Days $99.44
3   13-0674-09 TUBING - PER FT. Ships In 1-2 Days $11.93
4 Storage Bin- Obsolete
5   02-1751-00 DRAIN FITTING Ships In 1-2 Days $19.85
6   13-0617-36 O RING - OBSOLETE, NO REPLACEMENT
7   02-1957-00 DRAIN TUBE Ships In 1-2 Days $30.33
8 Clamp- Obsolete
9   03-1409-04 NON-METALIC WASHERS - OBSOLETE, NO REPLACEMENT
10   03-1394-00 NUT Ships In 1-2 Days $3.10
11 Water Ser Bracket- Obsolete
12   13-0079-01 Scotsman Tubing (Per Foot) - 13-0079-01 Ships In 1-2 Days $14.96
13 11-0296-00 PRESSURE CONTROL Ships In 1-2 Days $133.58
14   12-1213-10 BUSHING Ships In 1-2 Days $1.85
15
16   03-0571-00 SCREW - Obolete
17   03-1417-09 TOOTHED LOCKWASHERS - OBSOLETE
18 Mounting Bracket- Obsolete
19   13-0079-03 RUBBER TUBING Ships In 1-2 Days $6.80
20 Bulb Holder- Obsolete
21 Spout Grommet- Obsolete
22 Bin Stat Insulation- Obsolete
23 A32907-001 Scotsman Float - A32907-001 REPLACES A32922-020 $40.63
24   02-2936-01 RESERVOIR COVER Ships In 1-2 Days $29.21
25   A32929-020 FLOAT RESERVOIR Ships In 1-2 Days $244.77
