Scotsman AF325 Self Contained Flaker
Currently Viewing: Cabinet  > Go Back To Other Parts Lists

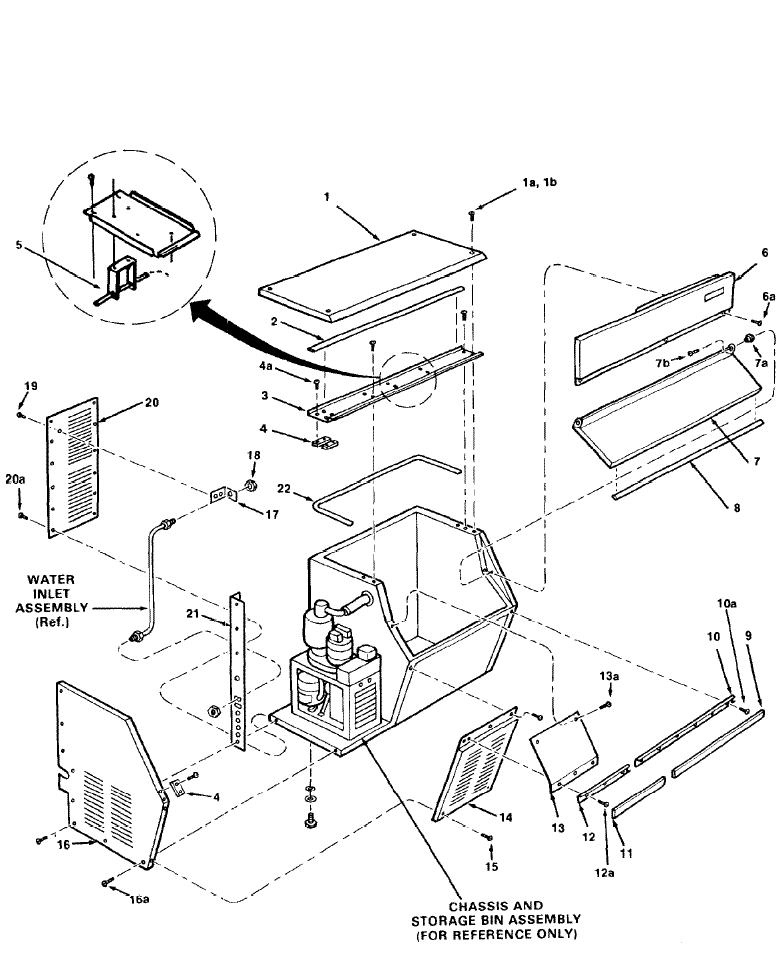

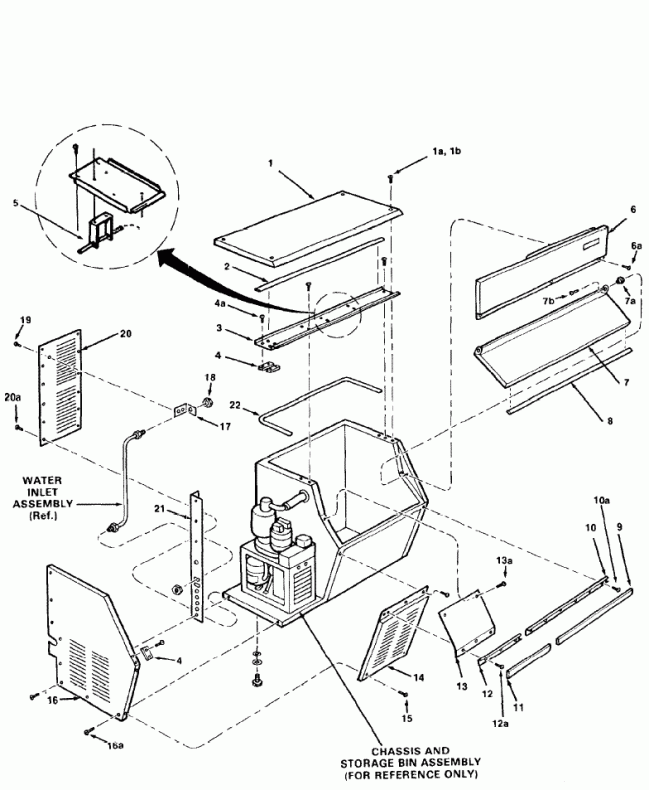

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1)...Top panel, stainless steel   A26931-004 PANEL TOP SS Ships In 1-2 Days $233.79
1a)...Lockwasher   03-1417-24 TOOTHED LOCKWASHER Ships In 1-2 Days $0.92
1b)...Screw   03-1419-23 SCREW Ships In 1-2 Days $2.75
2)...Gasket, 34" needed. Order by the foot (order 3ft)   13-0781-01 DOOR GASKET Ships In 1-2 Days $21.07
3)...Top brace   A34011-001 TOP BRACE Ships In 1-2 Days $117.42
4)...Screw 03-1404-12 SCREW Ships In 1-2 Days $1.85
5)...Bin thermostat bracket   A30720-001 BIN THERMOSTAT BKT. Ships In 1-2 Days $54.21
6)...Upper front panel, stainless steel   A26935-003 PANEL UPPER FRT. SS Ships In 1-2 Days $148.42
6a)...Screw   03-1404-10 SCREW Ships In 1-2 Days $0.92
7)...Gray door for stainless models (gasket not included with door)   02-2332-34 ICE ACCESS DOOR Ships In 1-2 Days $294.12
7a)...Hinge bushing   02-2380-01 HINGE BUSHING Ships In 1-2 Days $7.72
7b)...Screw   03-1405-07 HEX CAP SCREWS Ships In 1-2 Days $4.43
8)...Gasket, 33" needed. Order by the foot (order3 ft)   13-0781-01 DOOR GASKET Ships In 1-2 Days $21.07
9)...Moulding cover   15-0619-01 COVER MOULDING Ships In 1-2 Days $46.31
10)...Track section   15-0617-01 TRACK SECTION Ships In 1-2 Days $35.91
10a)...Screw   03-1404-07 SCREW Ships In 1-2 Days $0.92
11)...Moulding cover   15-0618-01 COVER MOULDING Ships In 1-2 Days $36.30
12)...Track section   15-0616-01 TRACK SECTION Ships In 1-2 Days $30.31
13)...Machine compartment baffle, stainless steel   A26921-004 BAFFLE-MACH. COMP. Ships In 1-2 Days $42.71
14)...Lower left panel, stainless steel   A26928-004 PANEL FRONT STAINLES Ships In 1-2 Days $188.30
15)...Screw   03-1419-08 SCREW Ships In 1-2 Days $1.85
16)...Left side panel, stainless steel   A28795-002 PANEL-LEFT Ships In 1-2 Days $321.74
17)..Pal nut   03-1394-01 NUT Ships In 1-2 Days $4.21
18)...Screw   03-1638-03 SCREW Ships In 1-2 Days $1.85
19)...Rear panel   A34010-001 PANEL - REAR Ships In 1-2 Days $120.58
20)...Screw   03-1404-09 SCREW Ships In 1-2 Days $0.92
21)...Corner post, stainless steel   A27066-002 CORNER POST (L.R.) Ships In 1-2 Days $42.59
22)...Gasket, 41" needed. Order by the foot (order 4ft)   13-0781-01 DOOR GASKET Ships In 1-2 Days $21.07
