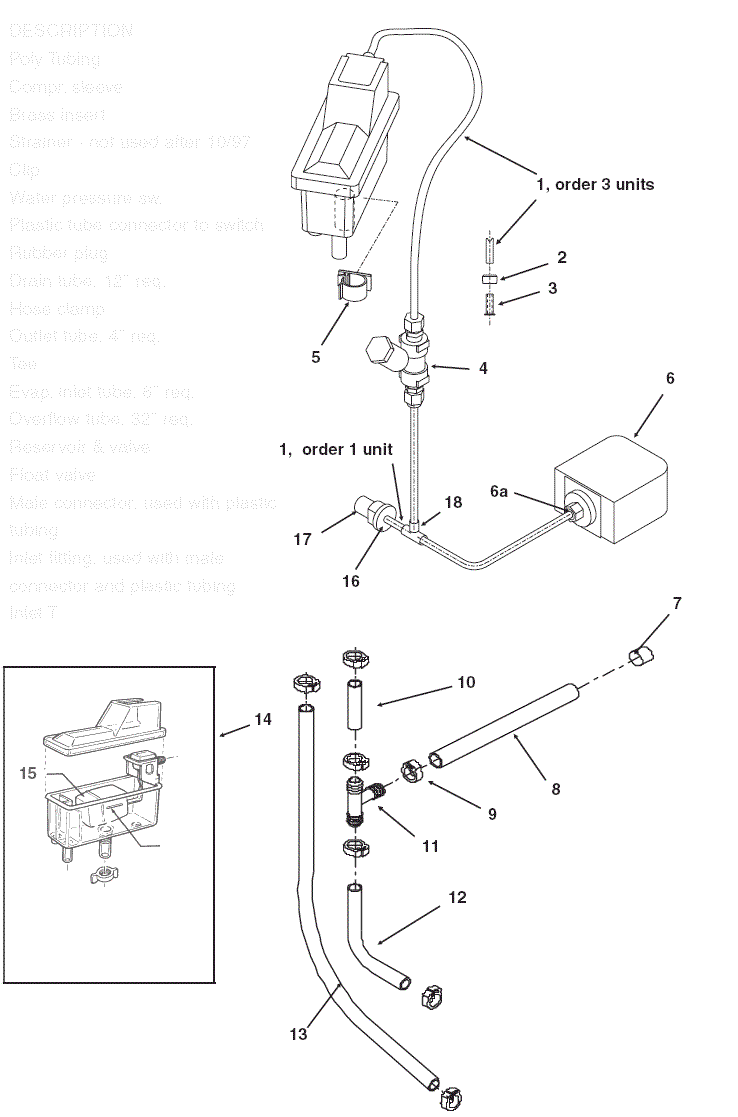

Scotsman AFE400 Self Contained Flaker Parts Diagram
Currently Viewing: Reservoir and Tubing  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   13-0895-01 HOSE - PER FT. Ships In 1-2 Days $1.84
2   16-1002-01 COMPRESSION SLEEVE Ships In 1-2 Days $4.92
3   16-0871-01 BRASS INSERT Ships In 3-4 Weeks $5.81
4 16-0162-00 Scotsman Strainer - 16-0162-00 Ships In 1-2 Days $34.95
5   02-3268-01 HOSE CLIP Ships In 1-2 Days $14.54
6 11-0296-00 PRESSURE CONTROL Ships In 1-2 Days $133.58
6a   16-1046-01 CONNECTOR FEMALE Ships In 1-2 Days $23.84
7   13-0840-01 RUBBER PLUG Special Order - Ships In 3-4 Weeks $2.96
8   13-0674-04 TUBING - PER FT. Ships In 1-2 Days $8.63
9   02-2814-07 HOSE CLAMP Ships In 1-2 Days $10.60
10   13-0674-04 TUBING - PER FT. Ships In 1-2 Days $8.63
11   16-0670-02 TEE Ships In 1-2 Days $11.72
12   13-0674-04 TUBING - PER FT. Ships In 1-2 Days $8.63
13   13-0079-03 RUBBER TUBING Ships In 1-2 Days $6.80
14 02-2217-01 Scotsman Reservoir - 02-2217-01 Ships In 1-2 Days $99.44
15 02-2217-02 Scotsman Float & Valve - 02-2217-02 Ships In 1-2 Days $63.59
16   16-1039-01 CONNECTOR MALE Ships In 1-2 Days $25.68
17   16-1081-01 ELBOW Ships In 1-2 Days $23.75
18   16-1040-01 TEE Ships In 1-2 Days $25.26
