Manitowoc QR0451W Ice Machine Parts Diagram

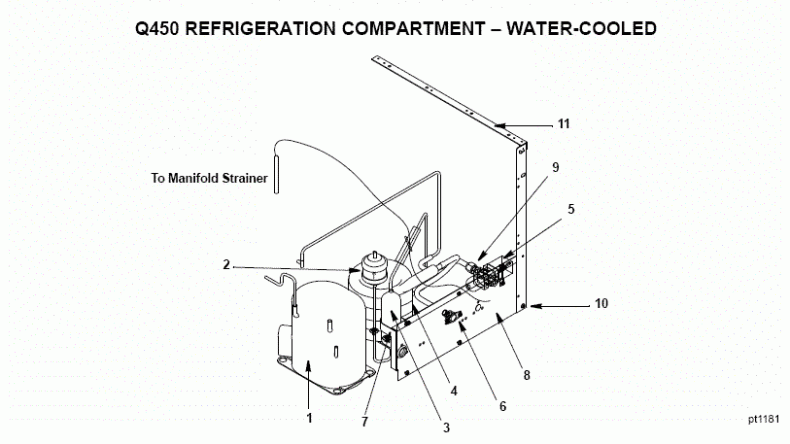

Currently Viewing: Q450 Refrigeration Compartment- Water Cooled > Go Back To Other Parts Lists

Parts List Begins Below The Diagram Image

Jump To The Parts List

click to open the full-size image in a new window

Item		Part#	Description	Stock	Price	Qty
1		76-2810-3	Compressor Assembly - 115V/60Hz/1 Ph
2		89-3025-9	Manitowoc Drier - 89-3025-9	Ships In 1-2 Days	$47.08
3		12-0003-1	Receiver	Ships In 7-10 Days	$58.15
4		88-6532-3	Condenser, Water	Ships In 7-10 Days	$531.69
5		83-7206-9	Water Regulating Valve - 83-7206-9	Ships In 1-2 Days	$231.69
6		87-0608-3	Adapter, .50ID X .63OD 1/2NPTF	Ships In 7-10 Days	$13.85
7		6000541	Receiver Strap	Ships In 7-10 Days	$13.85
8		6019061	Panel, Wtr/Rem Coupling	Ships In 7-10 Days	$98.77
9		83-3203-3	Coupling	Ships In 7-10 Days	$10.15
10		52-0206-9	Sl Hex Hd Screw (Pkg of 12)	Ships In 7-10 Days	$10.15
11		6019511	Weldment, LH C'post	Ships In 7-10 Days	$140.50
