Manitowoc QY0494N Ice Machine Parts Diagram

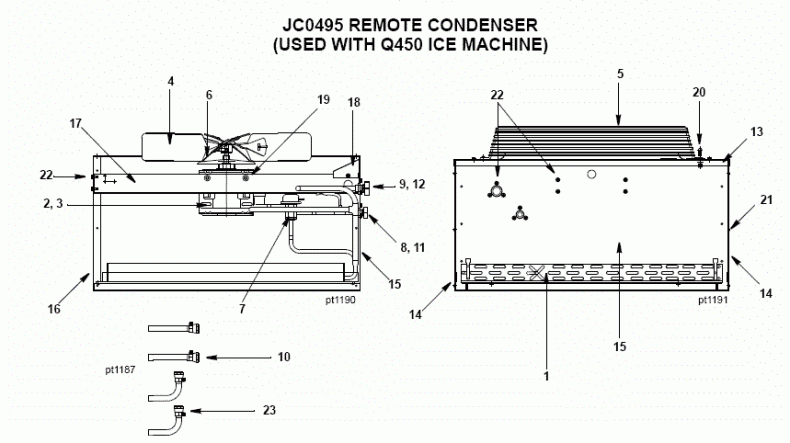

Currently Viewing: JC0495 Remote Condenser- For Q450 Series  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   88-5063-9 Air Condenser- Remotes Ships In 1-2 Days $320.95
2   76-2942-3 Fan Motor 115V 60 Hz 1ph - 76-2942-3 Ships In 1-2 Days $480.00
3 Fan Motor capacitor- NLA
4   24-1611-3 Fan Blade - 24-1611-3 Ships In 7-10 Days $80.31
5   34-0064-3 Fan Guard Remote Condensor Ships In 7-10 Days $87.69
6   24-1505-3 Rain Slinger 6 Dia. Ships In 7-10 Days $10.95
7   83-6809-3 Head Pressure Control Valve Ships In 7-10 Days $171.69
8   8360343 Coupl Male 5/8-18 THD Ships In 7-10 Days $19.39
9   8360353 Coupling Male 1-1/16-12 THD Ships In 7-10 Days $30.46
10
11   8360053 Mtg Flg 1/4-3/8 #5706-22-6s Ships In 7-10 Days $6.46
12   8360063 Mtg Flg 1/2-7/8 FD67-1008-12 Ships In 7-10 Days $6.47
13   601775-1 Top Cover Remote - 601775-1 Ships In 7-10 Days $78.46
14   6017741 Panel, Side Ships In 7-10 Days $48.00
15   6017731 Panel, Rear Ships In 7-10 Days $98.77
16   6017721 Panel, Front Ships In 7-10 Days $92.31
17   6017681 Fan Motor Mounting Bracket Ships In 7-10 Days $19.38
18   6017761 Cover, Electrical Ships In 7-10 Days $24.00
19   50-3565-9 Screw (Pkg of 10) Ships In 7-10 Days $8.00
19a   5573099 Flatwasher (Pkg of 10) Ships In 7-10 Days $6.46
19b   55-7313-9 Lockwasher (Pkg of 10) Ships In 7-10 Days $7.00
19c   54-2975-9 Hex Nut Pkg of 12 Ships In 7-10 Days $9.00
20   5033459 Machine Screw (Pkg of 10) Ships In 7-10 Days $9.23
20a   55-7304-9 Flatwasher 1/4 (Pkg of 12) - Obsolete
20b   55-4511-9 Lockwasher (Pkg of 10) - 55-4511-9 In Stock $6.95
20c   5429529 Hexnut 1/4-20 (Pkg of 12) - Obsolete
21   5121539 Screw (Pkg of 10) - Obsolete
21a   5544599 Washer (Pkg of 10) Ships In 7-10 Days $6.46
22 52-0206-9 Sl Hex Hd Screw (Pkg of 12) Ships In 7-10 Days $10.15
23   7626843 Access Fitting Core (Pkg of 4) Ships In 7-10 Days $12.00
24   601769-1 Remote Mounting Leg - 601769-1 Ships In 7-10 Days $30.46
