You Are Here: Home > Manitowoc QD0202A Ice Machine Parts Diagram
Manitowoc QD0202A Ice Machine Parts Diagram

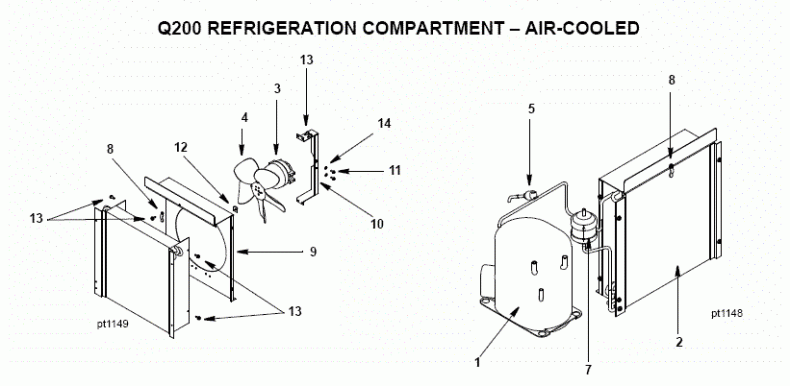

Currently Viewing: Q200 Refrigeration Compartment- Air Cooled  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Jump To The Parts List
click to open the full-size image in a new window
Item   Part# Description Stock Price Qty
1 Refer to Refrigeration Common Parts
2   88-5130-3 Condenser, Air Ships In 7-10 Days $241.85
3a   24-1287-3 Fan Motor - 24-1287-3 In Stock $110.95
3b   24-1288-3 Fan Motor 230V 50Hz - 24-1288-3 Ships In 7-10 Days $117.23
4   24-1624-3 Fan Blade Ships In 7-10 Days $47.95
5 20-0126-3 Fan Cycling Control Ships In 1-2 Days $59.38
6 40-4019-3 Manitowoc Filter, 12.75 X 14.25 - 40-4019-3 Ships In 1-2 Days $22.95
7 89-3025-9 Manitowoc Drier - 89-3025-9 Ships In 1-2 Days $47.08
8   56-5069-9 Nylon Spring Clip-Pkg of 4 Ships In 7-10 Days $8.00
9   6021821 Shroud, Fan Ships In 7-10 Days $217.85
10   6008101 Fan Motor Mounting Bracket Ships In 7-10 Days $190.15
11   5025599 Screw 8-36 X 7/16-Pkg of 4 In Stock $26.95
12   5475079 Speednut to Mount Fan Blade (Pkg of 10) Ships In 7-10 Days $7.39
13 52-0206-9 Sl Hex Hd Screw (Pkg of 12) Ships In 7-10 Days $10.15
14   5504269 Flatwasher (Pkg of 12) Ships In 7-10 Days $7.39
