Manitowoc QD0203W Ice Machine Parts Diagram

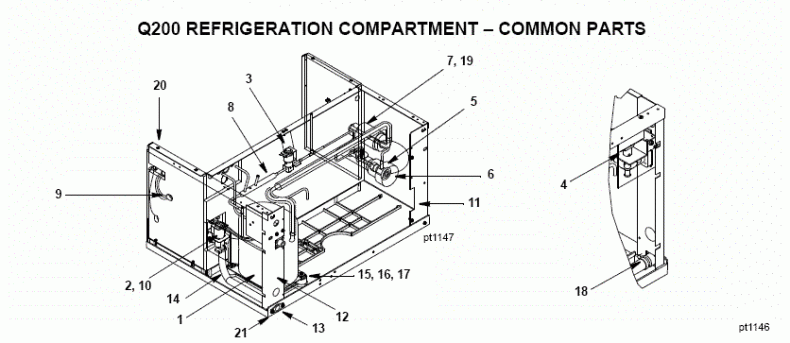

Currently Viewing: Q200 Refrigeration Compartment- Common Parts  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1a   76-2752-3 Compressor - 76-2752-3
1b   85-0541-3 Overload, 115/60, 8300CRTP60 Ships In 7-10 Days $48.92
1c   7627543 Compressor Assembly, 230/60/1
1d   8505423 Overload, 208-230/60 Ships In 7-10 Days $23.08
1e   7627533 Compressor Assy, 220/50/1 Ships 1 - 2 Days $744.00
2a 000001767 Manitowoc Dump Valve (120V) In Stock $65.95
2b 000001768 Manitowoc Dump Valve W/230V Coil Ships In 1-2 Days $67.95
2c Obsolete
3a 76-3001-1 Solenoid Valve - 76-3001-1 115V Ships In 1-2 Days $135.69
3b   000005156 Coil Only 115V Danfoss In Stock $32.95
3c 24-0436-3 Alco 115V Solenoid Valve Coil Ships In 1-2 Days $88.62
3d   7630071 Solenoid Vlv Evu3 .38x.25 230V Ships In 7-10 Days $123.69
3e   000005157 Coil Only 230V Danfoss - 000005157 Ships In 7-10 Days $35.31
3f 24-0448-3 Solenoid Coil AMS 208/240V Ships In 7-10 Days $87.95
4a 000007965 Water Inlet Valve 115V 000007965 In Stock $66.95
4b 000007966 Water Inlet Valve 230V 000007966 In Stock $67.95
4c Obsolete
5   76-2583-3 Expansion Valve - 76-2583-3 Ships in 1-2 Days $157.85
6   40-0721-3 Insulation, Boot - TXV Body Ships In 7-10 Days $23.08
7   40-0720-3 Insulation, TXV Bulb - 40-0720-3 Ships in 1-2 Days $14.95
8   83-1016-3 Manifold/Strainer Ships In 7-10 Days $25.85
9   20-7810-3 Water Pump Lead - 20-7810-3 Ships In 7-10 Days $43.38
10 60-2354-1 Manitowoc Bracket Only for Water Valve In Stock $115.38
11   6021771 Weldment, LH Cornerpost Ships In 7-10 Days $126.46
12   6021761 Weldment, RH Cornerpost Ships In 7-10 Days $122.95
13   87-0608-3 Adapter, .50ID X .63OD 1/2NPTF Ships In 7-10 Days $13.85
14 44-2038-3 Vinyl Tube 5/8" ID- 44-2038-3 In Stock $8.95
15   8503069 Rubber Grommet (Pkg of 4) Ships In 7-10 Days $9.23
16   5573419 Washer, .234id X .875od (Pkg 10) Ships In 7-10 Days $7.39
17   5012309 Screw 12-16 X .875 Hi/Lo (Package of 6) Ships In 7-10 Days $8.31
18   56-5070-9 Hose Clamp Pkg of 2
19   5650709 Hose Clamp (Pkg of 2)
20 Obsolete
21   5202183 Screw 10-24x .50 (Pkg of 6) - 52-0218-3 Ships 1 - 2 Days $7.50
