Manitowoc QY0324A Ice Machine Parts Diagram

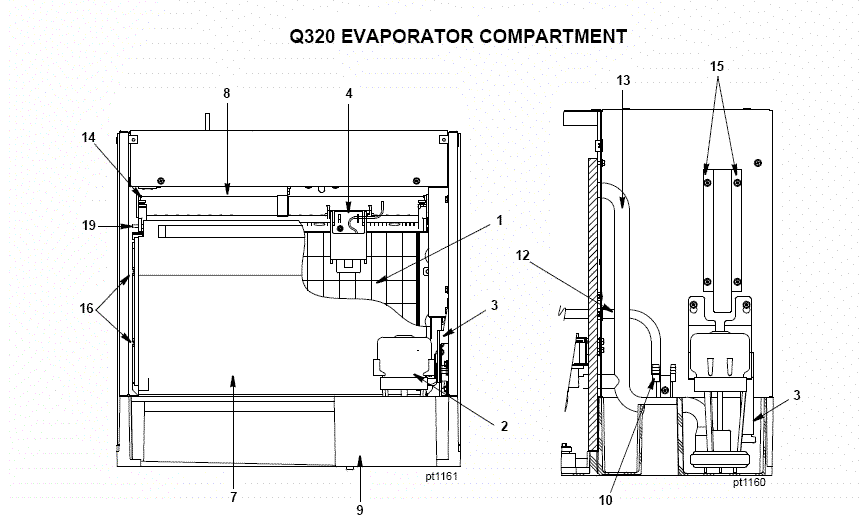

Currently Viewing: Q320 Evaporator  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1a Reglar Cube   7625209 Evap Assy BR0320/J0320 Reg Ships In 7-10 Days $1,044.00
1b Dice Cube   76-2519-9 Evap Assy B/J320/Q370 Dice Ships In 7-10 Days $1,037.54
1c Half Dice Cube   76-2518-9 Evap Assy B/J320/Q370 H-Dice Ships In 7-10 Days $1,178.77
2a Water Pump 115V 76-2306-3 Manitowoc Water Pump, 115V 60Hz 96d 6w - 76-2306-3 In Stock $276.00
2b Water Pump 208-230V 50/60 Hz 76-2601-3 Manitowoc Water Pump, 230V, 50/60Hz, 96deg - 76-2601-3 In Stock $268.95
3 25-1129-3 Manitowoc Probe, Sensor, Water Level In Stock $45.95
4 76-2781-3 Manitowoc Ice Thickness Control - 76-2781-3 In Stock $64.95
5 2301483 Manitowoc Magnetic Bin Switch Assembly In Stock $54.95
6   76-2054-3 Water Flow Clamp Assy (Service) Ships In 7-10 Days $25.85
7 After Ser# 020566886   40-0477-3 Manitowoc Curtain, Water, Vac Form - 40-0477-3 Ships In 1-2 Days $109.85
7a Up to Ser# 020566886   40-0863-3 Water Curtain - 40-0863-3 Ships In 7-10 Days $128.95
8 76-2498-3 Water Distribution Assembly - 76-2498-3 In Stock $61.85
9 43-0062-9 Manitowoc Water Plug - Pkg of 2 Ships In 1-2 Days $15.95
10   43-0388-3 Fitting, Water/Aucs Ships In 1-2 Days $7.95
11 76-2802-3 Water Curtain Magnet/Clip In Stock $14.95
12   44-2123-3 Tube - 44-2123-3 Ships In 7-10 Days $8.50
13   40-0951-3 Tube,Molded Vinyl Ships In 7-10 Days $30.46
14 50-0001-3 Thumbscrew #*-32 X 3/8 Long - 50-0001-3 In Stock $7.38
15 52-0206-9 Sl Hex Hd Screw (Pkg of 12) Ships In 7-10 Days $10.15
16 52-0218-9 Screw W/Washer (Pkg of 6) - 52-0218-9 Ships In 7-10 Days $7.95
17 7628063 Base and Water Trough Repair Kit In Stock $11.95
18 76-2621-3 Manitowoc Evaporator Top Molding & Gasket - 76-2621-3 Ships In 1-2 Days $63.69
19 76-2776-3 Pair of Manitowoc Water Curtain Hangers - 76-2776-3 In Stock $9.95
