Manitowoc QY0324A Ice Machine Parts Diagram

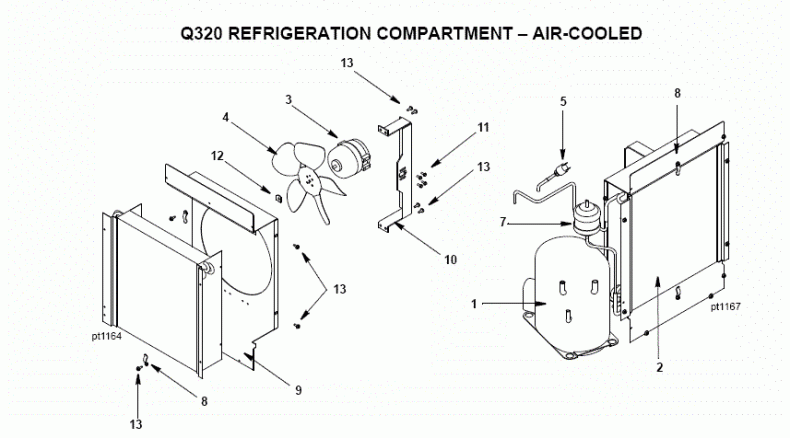

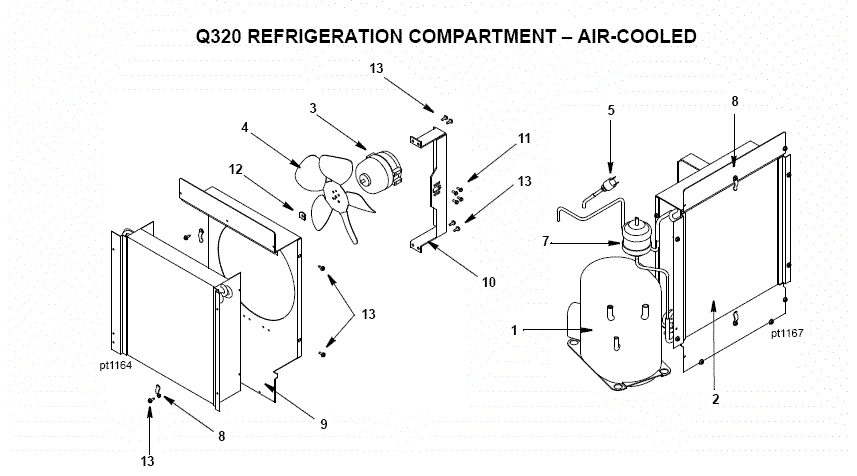

Currently Viewing: Q320 Refrigeration Compartment- Air Cooled  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1 Refer to Refrigeration Common Parts
2   88-5130-3 Condenser, Air Ships In 7-10 Days $241.85
3a Fan Motor 115V 24-1281-3 Fan Motor 115V 60 Hz - 24-1281-3 Ships In 7-10 Days $125.54
3b Fan Motor 208-230V/60 Hz or 50 Hz   24-1282-3 Fan Motor -230V/50-60Hz/1 - 24-1282-3 Ships In 7-10 Days $122.77
4   24-1622-3 Fan Blade Ships In 7-10 Days $55.43
5 20-0126-3 Fan Cycling Control Ships In 1-2 Days $59.38
6 40-4022-3 Manitowoc Filter, 12.75 X 14.75 40-4022-3 Ships In 1-2 Days $17.95
7 89-3025-9 Manitowoc Drier - 89-3025-9 Ships In 1-2 Days $47.08
8   56-5069-9 Nylon Spring Clip-Pkg of 4 Ships In 7-10 Days $8.00
9   6016191 Shroud, Fan Ships In 7-10 Days $102.46
10   6027431 Bracket, Fan Motor Ships In 7-10 Days $26.77
11   5025599 Screw 8-36 X 7/16-Pkg of 4 In Stock $26.95
12   5475079 Speednut to Mount Fan Blade (Pkg of 10) Ships In 7-10 Days $7.39
13 52-0206-9 Sl Hex Hd Screw (Pkg of 12) Ships In 7-10 Days $10.15
