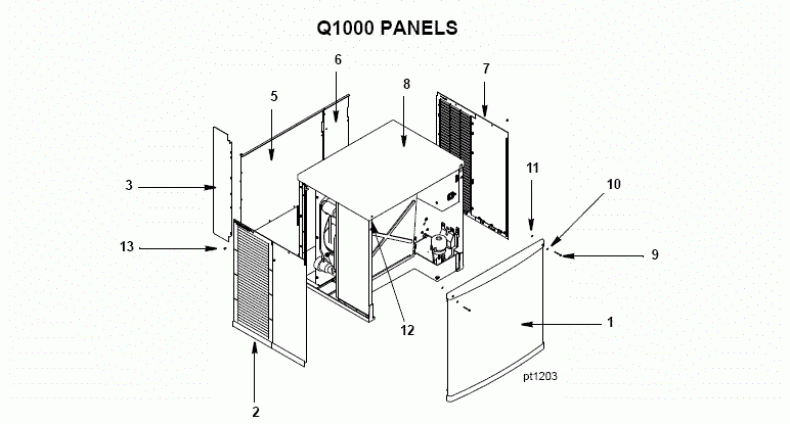

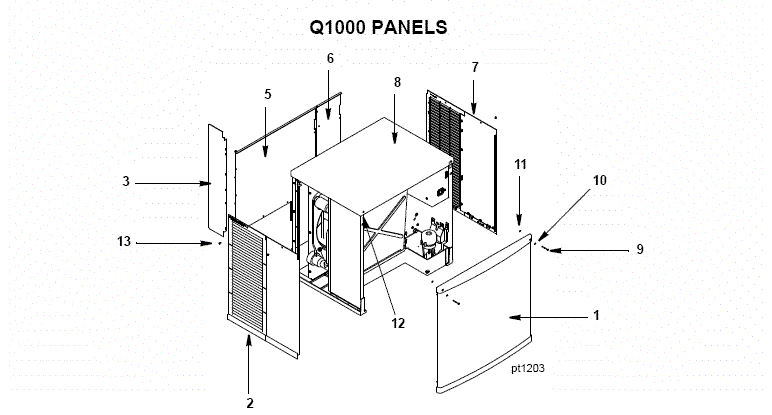

Manitowoc QY1094N Ice Machine Parts Diagram
Currently Viewing: Q1000 Panels  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   76-0055-3 Front Panel Assy Q-Dual Ships In 7-10 Days $528.92
2   76-2859-3 LH Side Panel Assy Ships In 7-10 Days $178.15
3   602376-1 Baffle, Air Ships In 7-10 Days $44.31
4 40-4021-3 Filter, 17.25 X 26.25 Ships In 1-2 Days $36.00
5   6024981 Panel, Wtr/Rem Back Ships In 7-10 Days $123.69
6   6024991 Panel, Air Back Ships In 7-10 Days $70.15
7   76-2860-3 RH Side Panel Assy Ships In 7-10 Days $163.38
8 43-0331-3 Cover, Top, 30 Ships In 7-10 Days $141.23
9   51-1901-9 Screw, #8 X 1.75 Type B Pkg 6 Ships In 7-10 Days $12.00
10   55-7338-9 Flat Washer-Nylon-Pkg of 12 Ships In 7-10 Days $7.95
11   56-4827-9 Retainer, #8 Nylon Screw Pkg12 Ships In 7-10 Days $6.95
12 54-7303-9 Speed Nut, J Type C80388 Pkg12 Ships In 7-10 Days $9.95
13 52-0209-9 Phil Flat Hd Screw Pkg of 12 - Obsolete
14   92-0250-9 Extruded Tape 3/16 X 3/8 - 25 Ft Roll Ships In 7-10 Days $23.95
15   65-8041-9 Front Support Ships In 7-10 Days $52.62
Note: Items 9,10,11,12 can be ordered as an assembly   76-2898-3 Speednut/Screw - Front Panel Ships In 7-10 Days $8.31
