Manitowoc QY1304A Ice Machine Parts Diagram

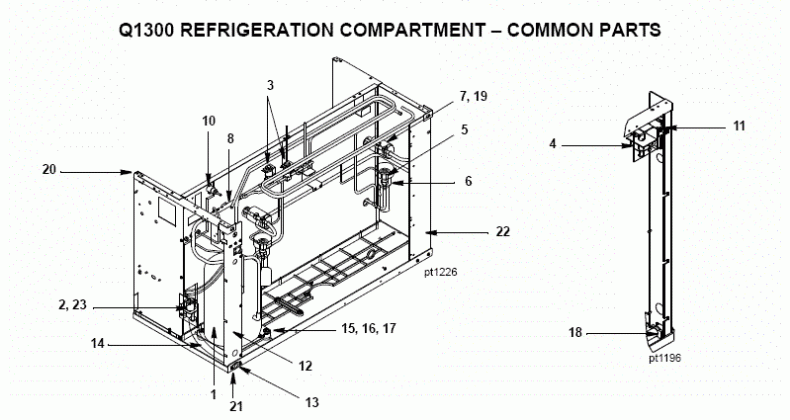

Currently Viewing: Q1300 Refrigeration Compartment- Common Parts  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1a Compressor 208-230V/60/1   76-2687-3 Compressor - 76-2687-3
1b Compressor 230V/60/3   76-2688-3 Compressor - 76-2688-3
1c Compressor 230V/50/1   7627003 Comp Assy 50Hz 1ph J/Q1300
2 000001768 Manitowoc Dump Valve W/230V Coil Ships In 1-2 Days $67.95
3 Hot Gas Valve Including Coil 76-3010-1 Manitowoc Solenoid Valve 208-230V/50-60Hz Ships In 1-2 Days $145.85
3 Coil Only Danfoss   000005157 Coil Only 230V Danfoss - 000005157 Ships In 7-10 Days $35.31
3 Coil Only Alco 24-0448-3 Solenoid Coil AMS 208/240V Ships In 7-10 Days $87.95
4 000007966 Water Inlet Valve 230V 000007966 In Stock $67.95
5   76-0022-3 Expansion Valve - 76-0022-3 Ships In 1-2 Days $152.31
6 Danfoss   40-0036-3 Insul, TXV Boot, Danfoss Ships In 7-10 Days $20.31
6 Alco   40-0721-3 Insulation, Boot - TXV Body Ships In 7-10 Days $23.08
7   40-0720-3 Insulation, TXV Bulb - 40-0720-3 Ships in 1-2 Days $14.95
8 4 Hole   82-5097-3 Manifold Strainer - 82-5097-3 Ships In 7-10 Days $45.23
9   20-7810-3 Water Pump Lead - 20-7810-3 Ships In 7-10 Days $43.38
10 (Manual Reset)   23-5536-9 High Pressure Cut-Out Control Ships In 1-2 Days $139.38
10 (Auto Reset) 20-0124-3 High Pressure Cut out AR Control Ships In 1-2 Days $60.92
11 60-2354-1 Manitowoc Bracket Only for Water Valve In Stock $115.38
12   6022041 Weldment, RH Cornerpost Ships In 7-10 Days $227.08
13   87-0608-3 Adapter, .50ID X .63OD 1/2NPTF Ships In 7-10 Days $13.85
14 44-2038-3 Vinyl Tube 5/8" ID- 44-2038-3 In Stock $8.95
15   8503069 Rubber Grommet (Pkg of 4) Ships In 7-10 Days $9.23
16   5573419 Washer, .234id X .875od (Pkg 10) Ships In 7-10 Days $7.39
17   5012309 Screw 12-16 X .875 Hi/Lo (Package of 6) Ships In 7-10 Days $8.31
18   56-5070-9 Hose Clamp Pkg of 2
19   56-5052-9 Ss Wormdrive Clamp (Pkg of 2) Ships In 7-10 Days $10.00
20 52-0209-9 Phil Flat Hd Screw Pkg of 12 - Obsolete
21 52-0218-9 Screw W/Washer (Pkg of 6) - 52-0218-9 Ships In 7-10 Days $7.95
22   6045141 Weldment, LH C'post Ships In 7-10 Days $91.38
23   601597-1 Plate, Wtr Pump Solenoid MTG Ships In 7-10 Days $46.15
24   20-0614-3 Terminal Block - 20-0614-3 Ships In 7-10 Days $18.46
