Manitowoc QY1394N Ice Machine Parts Diagram

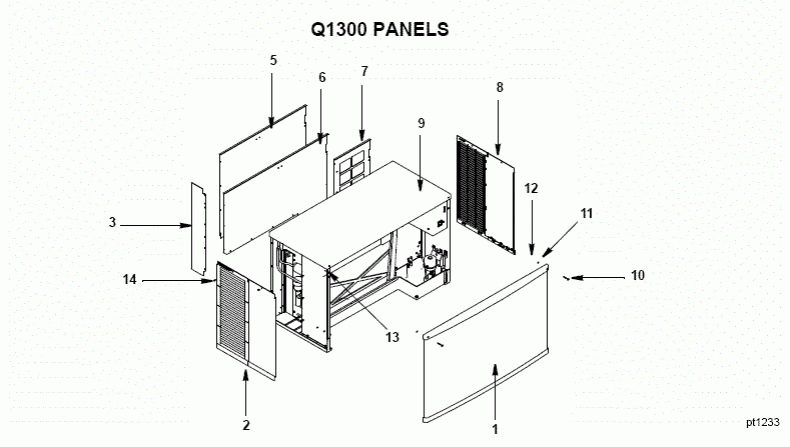

Currently Viewing: Q1300 Panels  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   76-2879-3 Front Panel Assy Ships In 7-10 Days $894.46
2   76-2859-3 LH Side Panel Assy Ships In 7-10 Days $178.15
3   602376-1 Baffle, Air Ships In 7-10 Days $44.31
4   40-4024-3 Filter, 25.75 X 21.25 Ships In 1-2 Days $36.95
5   6025991 Panel, Water, Back Ships In 7-10 Days $91.38
6   60-2607-1 Panel, Back, Rem Ships In 7-10 Days $116.31
7   60-4517-1 Back Panel, Air - 60-4517-1 Ships In 7-10 Days $260.31
8   76-2860-3 RH Side Panel Assy Ships In 7-10 Days $163.38
9   43-0332-3 Cover, Top, 48 Ships In 7-10 Days $253.85
10   51-1901-9 Screw, #8 X 1.75 Type B Pkg 6 Ships In 7-10 Days $12.00
11   55-7338-9 Flat Washer-Nylon-Pkg of 12 Ships In 7-10 Days $7.95
12   56-4827-9 Retainer, #8 Nylon Screw Pkg12 Ships In 7-10 Days $6.95
13 54-7303-9 Speed Nut, J Type C80388 Pkg12 Ships In 7-10 Days $9.95
14 52-0209-9 Phil Flat Hd Screw Pkg of 12 - Obsolete
15   92-0250-9 Extruded Tape 3/16 X 3/8 - 25 Ft Roll Ships In 7-10 Days $23.95
Note: Items 9,10,11,12 can be ordered as an assembly   76-2898-3 Speednut/Screw - Front Panel Ships In 7-10 Days $8.31
