Manitowoc BD0453W Ice Machine Parts Diagram

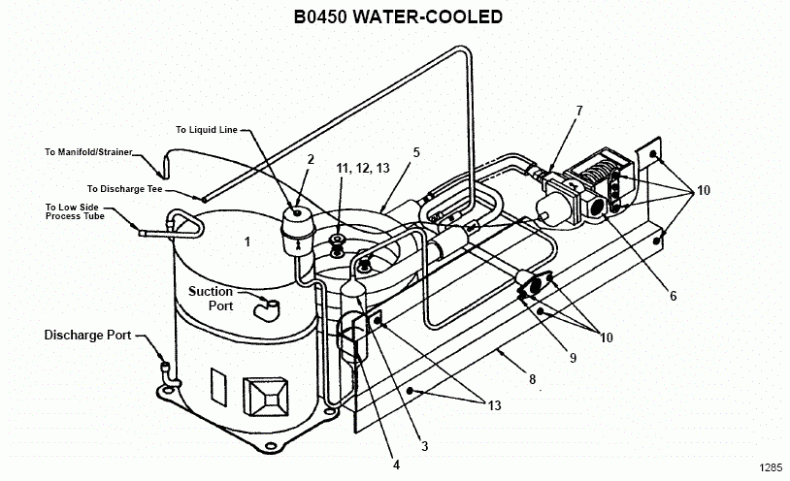

Currently Viewing: B450 Refrigeration Compartment- Water Cooled  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   76-2810-3 Compressor Assembly - 115V/60Hz/1 Ph
1a   85-0429-3 Overload-Tecumseh 8300 Mrak30 Ships In 7-10 Days $29.54
1b   85-0555-3 Overload, Tecumseh #8300MRAM81 Ships In 7-10 Days $36.00
2 89-3025-9 Manitowoc Drier - 89-3025-9 Ships In 1-2 Days $47.08
3   12-0003-1 Receiver Ships In 7-10 Days $58.15
4   6000541 Receiver Strap Ships In 7-10 Days $13.85
5   88-6532-3 Condenser, Water Ships In 7-10 Days $531.69
6   83-7206-9 Water Regulating Valve - 83-7206-9 Ships In 1-2 Days $231.69
7   83-3203-3 Coupling Ships In 7-10 Days $10.15
8   6000571 Coupling MTG Panel Ships In 7-10 Days $116.31
9   87-0612-3 Female Wing Adapter Ships In 7-10 Days $17.54
10 52-0206-9 Sl Hex Hd Screw (Pkg of 12) Ships In 7-10 Days $10.15
11   5573099 Flatwasher (Pkg of 10) Ships In 7-10 Days $6.46
12   5545149 Lockwasher (Pkg of 10) Ships In 7-10 Days $6.46
13   5430029 3/8 X 16 Hexnut-Pkg of 6 Ships In 7-10 Days $7.39
