Manitowoc QD0212A Ice Machine Parts Diagram

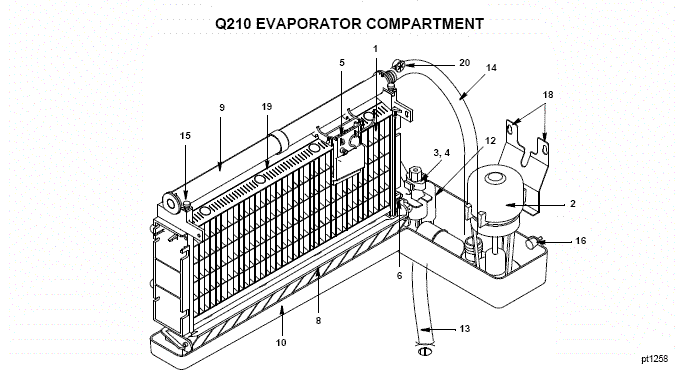

Currently Viewing: Q210 Evaporator  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1 Evaporator Assembly
1a Regular Cube   76-2954-9 Evap Assy Q0210/270 Regular Ships In 7-10 Days $701.54
1b Dice Cube   7629559 Evap Assy Q0210/270 Dice Ships In 7-10 Days $700.62
1c Half Dice Cube   76-2956-9 Evap Assy Q0210/270 Half Dice In Stock $825.23
2 Water Pump
2a 115V/60/1 76-2306-3 Manitowoc Water Pump, 115V 60Hz 96d 6w - 76-2306-3 In Stock $276.00
2b 208-230V/60 Hz or 50 Hz 76-2601-3 Manitowoc Water Pump, 230V, 50/60Hz, 96deg - 76-2601-3 In Stock $268.95
3 Float Valve Up To Serial# 031100000 76-0213-3 Water Float Valve Assembly Ships In 1-2 Days $69.99
4 Float Valve After Serial# 031100000 83-6904-9 Manitowoc Float Valve W/Instructions - 83-6904-9 In Stock $59.95
4a Screen   83-6906-9 Flt Valve Strainer Screen Pkg6 Ships In 7-10 Days $12.00
4b Plunger   83-6908-9 Float Valve Plunger Seal Pkg 6 Ships In 7-10 Days $12.92
4c Compression Nut   56-5072-9 Nut (Package of 6) - 56-5072-9 Ships In 7-10 Days $8.31
5 76-0160-3 Manitowoc Sensor Probe Assembly, 14.00 Lead - 76-0160-3 In Stock $44.95
6 2301483 Manitowoc Magnetic Bin Switch Assembly In Stock $54.95
7   76-2054-3 Water Flow Clamp Assy (Service) Ships In 7-10 Days $25.85
8 76-0048-3 Manitowoc Ice Damper - 7600483 In Stock $50.95
8a   76-2909-3 Ice Damper Magnet & Cap Ships In 7-10 Days $12.00
9 76-2498-3 Water Distribution Assembly - 76-2498-3 In Stock $61.85
10   040001251 Trough, Water Ships In 7-10 Days $35.08
11 44-2029-1 Poly Tubing 44-P-1/4 OD - 2 Ft Section In Stock $12.92
12   43-0222-3 Siphon Cap, Trough Ships In 7-10 Days $10.15
13   76-0085-3 Tube, White Vinyl, Molded - 76-0085-3 Ships In 7-10 Days $15.69
14   040001234 Molded Vinyl Tubing - 040001234 Ships In 1-2 Days $38.99
15 50-0001-3 Thumbscrew #*-32 X 3/8 Long - 50-0001-3 In Stock $7.38
16 50-0001-3 Thumbscrew #*-32 X 3/8 Long - 50-0001-3 In Stock $7.38
17 52-0210-9 Screw (Pkg of 10)- 52-0210-9 In Stock $14.77
18 52-0206-9 Sl Hex Hd Screw (Pkg of 12) Ships In 7-10 Days $10.15
19 76-2621-3 Manitowoc Evaporator Top Molding & Gasket - 76-2621-3 Ships In 1-2 Days $63.69
20   25-0016-9 Bushing-Pkg of 4 Ships In 7-10 Days $7.38
21   2078063 Water Pump Lead Ships In 7-10 Days $14.77
