Manitowoc JR0200A Parts Diagram
Currently Viewing: J200 Evaporator  > Go Back To Other Parts Lists

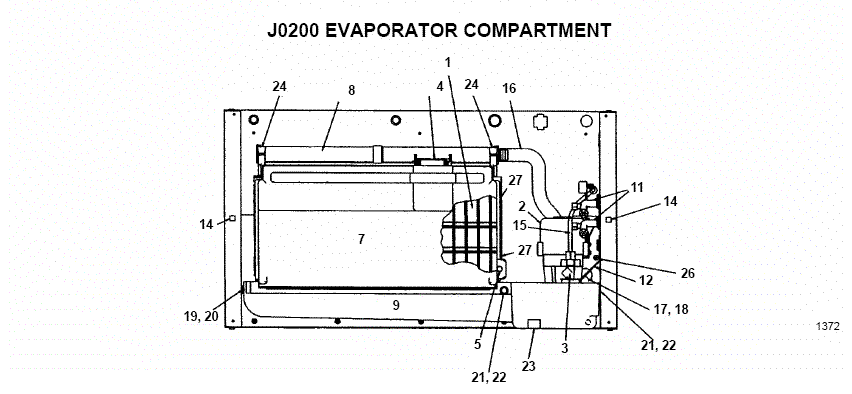

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1 Evaporator Assembly
1a Regular Cube   76-2585-9 Ep Asy QR/Jr/Br200/250/270/280 Ships In 7-10 Days $843.69
1b Dice Cube   76-2584-9 Evp Asy QD/Jd/Bd200/250/270 Ships In 7-10 Days $872.31
1c Half-Dice Cube   76-2658-9 Evp Asy QY/BY/JY200/250/270 Ships In 7-10 Days $1,013.54
1d Gasket/Top Moulding 76-2621-3 Manitowoc Evaporator Top Molding & Gasket - 76-2621-3 Ships In 1-2 Days $63.69
2 Water Pump
2a 115V/60 Hz 76-2306-3 Manitowoc Water Pump, 115V 60Hz 96d 6w - 76-2306-3 In Stock $276.00
2b 208-230V/50-60 Hz 76-2601-3 Manitowoc Water Pump, 230V, 50/60Hz, 96deg - 76-2601-3 In Stock $268.95
3 Complete Assembly 83-6904-9 Manitowoc Float Valve W/Instructions - 83-6904-9 In Stock $59.95
3a Screen   83-6906-9 Flt Valve Strainer Screen Pkg6 Ships In 7-10 Days $12.00
3b Plunger   83-6908-9 Float Valve Plunger Seal Pkg 6 Ships In 7-10 Days $12.92
3c Compression Nut   56-5072-9 Nut (Package of 6) - 56-5072-9 Ships In 7-10 Days $8.31
4 76-2781-3 Manitowoc Ice Thickness Control - 76-2781-3 In Stock $64.95
5 2301483 Manitowoc Magnetic Bin Switch Assembly In Stock $54.95
6   76-2054-3 Water Flow Clamp Assy (Service) Ships In 7-10 Days $25.85
7 Water Curtain   40-0478-3 Water Curtain - 40-0478-3 Ships In 1-2 Days $92.31
7a Hanger 76-2776-3 Pair of Manitowoc Water Curtain Hangers - 76-2776-3 In Stock $9.95
7b Magnet/Clip 76-2802-3 Water Curtain Magnet/Clip In Stock $14.95
8 76-2498-3 Water Distribution Assembly - 76-2498-3 In Stock $61.85
9   76-2748-3 Water Trough - 76-2748-3 Ships In 1-2 Days $138.46
10   23-5536-9 High Pressure Cut-Out Control Ships In 1-2 Days $139.38
11   83-7310-9 Process Valve - 83-7310-9 Ships In 7-10 Days $13.85
12   76-2140-3 Bracket - 76-2140-3 Ships In 7-10 Days $16.62
13   6014091 Manitowoc Control Box Cover- 30 Model Ships In 7-10 Days $44.31
14   54-2910-9 Cage Nut (Pkg of 12) Ships In 7-10 Days $14.00
15 44-2029-1 Poly Tubing 44-P-1/4 OD - 2 Ft Section In Stock $12.92
16   44-2096-3 Tube,Vinyl-White 0.625 ID Ships In 7-10 Days $23.08
17   43-0057-3 Reducing Tee, EPDM Rubber Ships In 7-10 Days $20.31
18   83-9005-3 Union Connector White Nylon Ships In 7-10 Days $7.38
19   43-0201-9 Water Trough Support W/Hexnuts Ships In 1-2 Days $8.31
20   54-2945-9 Hex Nut Spacer (Pkg of 10) - 54-2945-9 Ships In 7-10 Days $10.15
21 56-5085-3 Receptacle 004-912-010 Ships In 1-2 Days $7.95
22 56-5086-3 Stud - Wing Head 124-050-010 Ships In 1-2 Days $7.95
23 76-2704-3 Water Trough Support Clip Assy Ships In 1-2 Days $42.46
24 50-0001-3 Thumbscrew #*-32 X 3/8 Long - 50-0001-3 In Stock $7.38
25   5121669 Screw #8 X 3/4 (Pkg of 10) Ships In 7-10 Days $10.15
26 52-0206-9 Sl Hex Hd Screw (Pkg of 12) Ships In 7-10 Days $10.15
27 52-0218-9 Screw W/Washer (Pkg of 6) - 52-0218-9 Ships In 7-10 Days $7.95
