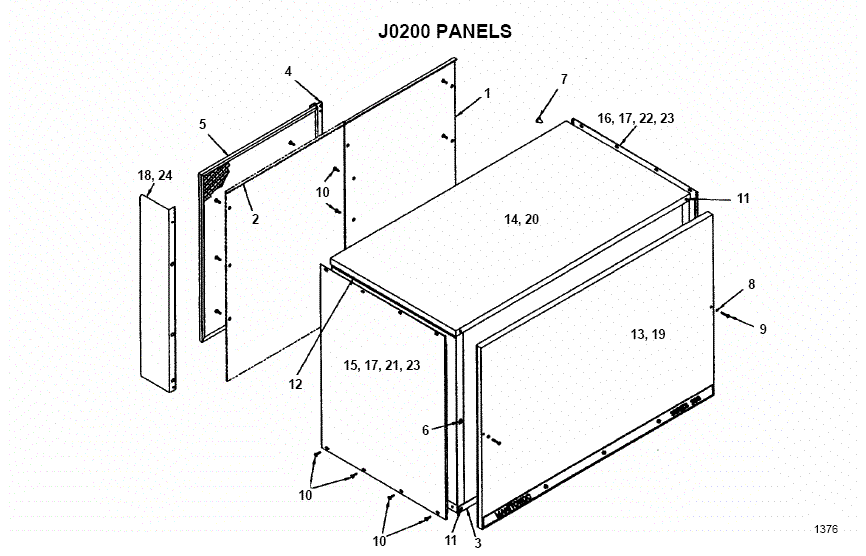

Manitowoc JY0205W Parts Diagram
Currently Viewing: J200 Panels  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   6009451 Manitowoc Panel Back Air Ships In 7-10 Days $28.62
2   6009461 Manitowoc Panel Back Water Ships In 7-10 Days $48.92
3   65-8041-9 Front Support Ships In 7-10 Days $52.62
4   76-2686-3 Manitowoc Air Filter Bracket - 76-2686-3 Ships In 7-10 Days $69.23
5   40-4012-3 EZK Filter 14.50 X 13.50 Ships In 1-2 Days $29.54
6   54-2910-9 Cage Nut (Pkg of 12) Ships In 7-10 Days $14.00
7   56-4820-9 Canoe Clip Fastener (Pkg of 6) Ships In 7-10 Days $11.08
8 Oring   37-1819-9 O-Ring .145 ID-Pkg of 12 Ships In 7-10 Days $8.31
8 Washer   55-7338-9 Flat Washer-Nylon-Pkg of 12 Ships In 7-10 Days $7.95
9   50-2668-9 Fastener Screw (Package of 12) - 50-2668-9 Ships In 7-10 Days $8.31
10 52-0206-9 Sl Hex Hd Screw (Pkg of 12) Ships In 7-10 Days $10.15
11 52-0209-9 Phil Flat Hd Screw Pkg of 12 - Obsolete
12   92-0250-9 Extruded Tape 3/16 X 3/8 - 25 Ft Roll Ships In 7-10 Days $23.95
13   76-2277-3 Panel Assy, Frt PC H02, G02,B02 Ships In 7-10 Days $374.77
14   6000681 Top Cover Fawn Ships In 7-10 Days $240.92
15   6009371 Panel Side LH Air Fawn Ships In 7-10 Days $339.69
16   6009381 Panel Side RH Air Fawn Ships In 7-10 Days $322.15
17   6009391 Manitowoc Panel RH-LH Water Fawn Ships In 7-10 Days $318.46
18   600961-1 Baffle, Air, Fawn Ships In 7-10 Days $108.00
19   76-2278-3 Panel Assy Front SS H2/G2/B2 Ships In 7-10 Days $614.77
20   600068-3 Top Cover, SS Ships In 7-10 Days $415.38
21   6009372 Manitowoc Panel Side LH Air SS Ships In 7-10 Days $540.00
22   6009382 Manitowoc Panel Side RH Air SS Ships In 7-10 Days $467.08
23   6009392 Manitowoc Panel RH-LH Water SS Ships In 7-10 Days $291.69
24   6009612 Manitowoc Baffle, Air, SS Ships In 7-10 Days $137.54
