Manitowoc JD0253W Parts Diagram

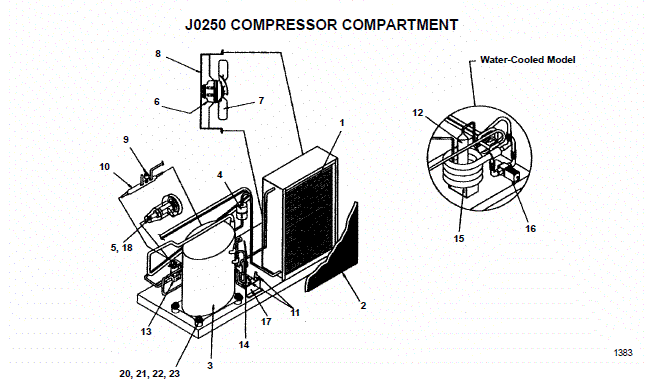

Currently Viewing: J250 Compressor  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   8850933 Manitowoc Air Condenser 88-5093-3 Ships In 7-10 Days $3,069.23
2   40-4010-3 EZK Filter 12 X 12 Ships In 7-10 Days $19.38
3 115V/60/1   76-2752-3 Compressor - 76-2752-3
3a   85-0541-3 Overload, 115/60, 8300CRTP60 Ships In 7-10 Days $48.92
3 230v/50/1   7627533 Compressor Assy, 220/50/1 Ships 1 - 2 Days $744.00
3 230V/60/1   7627543 Compressor Assembly, 230/60/1
3b   8505423 Overload, 208-230/60 Ships In 7-10 Days $23.08
4 89-3025-9 Manitowoc Drier - 89-3025-9 Ships In 1-2 Days $47.08
5   76-2583-3 Expansion Valve - 76-2583-3 Ships in 1-2 Days $157.85
6 24-1281-3 Fan Motor 115V 60 Hz - 24-1281-3 Ships In 7-10 Days $125.54
6   24-1282-3 Fan Motor -230V/50-60Hz/1 - 24-1282-3 Ships In 7-10 Days $122.77
7   24-1622-3 Fan Blade Ships In 7-10 Days $55.43
8   688781-4 Motor Bracket Ships In 7-10 Days $115.38
9 20-0126-3 Fan Cycling Control Ships In 1-2 Days $59.38
10   83-1016-3 Manifold/Strainer Ships In 7-10 Days $25.85
11   83-7310-9 Process Valve - 83-7310-9 Ships In 7-10 Days $13.85
12   12-0003-1 Receiver Ships In 7-10 Days $58.15
13 76-3001-1 Solenoid Valve - 76-3001-1 115V Ships In 1-2 Days $135.69
13   7630071 Solenoid Vlv Evu3 .38x.25 230V Ships In 7-10 Days $123.69
14   23-5116-3 NTC Thermistor In Stock $55.38
15   88-6531-3 Water Condenser Ships In 7-10 Days $443.08
16   83-7210-3 Water Reg Valve V46-AA-73D Ships In 7-10 Days $199.95
17   6012021 Manitowoc Bracket, Process Valve 601202-1 Ships 1 - 2 Days $10.25
18   40-0721-3 Insulation, Boot - TXV Body Ships In 7-10 Days $23.08
19   40-0720-3 Insulation, TXV Bulb - 40-0720-3 Ships in 1-2 Days $14.95
20   8503069 Rubber Grommet (Pkg of 4) Ships In 7-10 Days $9.23
21   85-0394-9 Sleeve (Pkg of 4) Ships In 7-10 Days $7.38
22   5573099 Flatwasher (Pkg of 10) Ships In 7-10 Days $6.46
23   5430029 3/8 X 16 Hexnut-Pkg of 6 Ships In 7-10 Days $7.39
