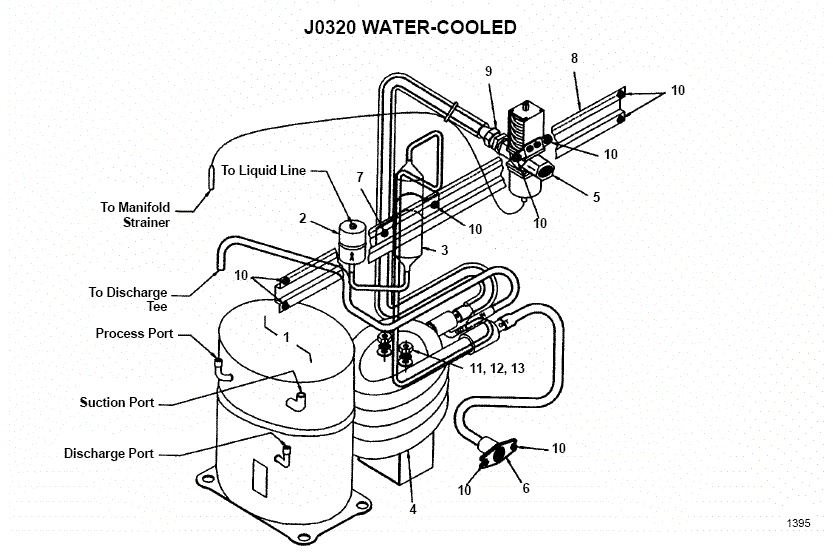

Manitowoc JD0322A Parts Diagram

Currently Viewing: J0320 Water Cooled > Go Back To Other Parts Lists

Parts List Begins Below The Diagram Image

Jump To The Parts List

click to open the full-size image in a new window

Item		Part#	Description	Stock	Price	Qty
1 Refer to Common Parts
2		89-3025-9	Manitowoc Drier - 89-3025-9	Ships In 1-2 Days	$47.08
3		12-0003-1	Receiver	Ships In 7-10 Days	$58.15
4		88-6532-3	Condenser, Water	Ships In 7-10 Days	$531.69
5		83-7206-9	Water Regulating Valve - 83-7206-9	Ships In 1-2 Days	$231.69
6		87-0612-3	Female Wing Adapter	Ships In 7-10 Days	$17.54
7		6001891	Receiver Mounting Bracket	Ships In 7-10 Days	$13.85
8		6001791	Manitowoc Receiver/Valve Mtg. Brkt. 600179-1	Ships In 7-10 Days	$15.69
9		83-3203-3	Coupling	Ships In 7-10 Days	$10.15
10		52-0206-9	Sl Hex Hd Screw (Pkg of 12)	Ships In 7-10 Days	$10.15
11		5573099	Flatwasher (Pkg of 10)	Ships In 7-10 Days	$6.46
12		5545149	Lockwasher (Pkg of 10)	Ships In 7-10 Days	$6.46
13		5430029	3/8 X 16 Hexnut-Pkg of 6	Ships In 7-10 Days	$7.39
