Manitowoc JY0424A Parts Diagram

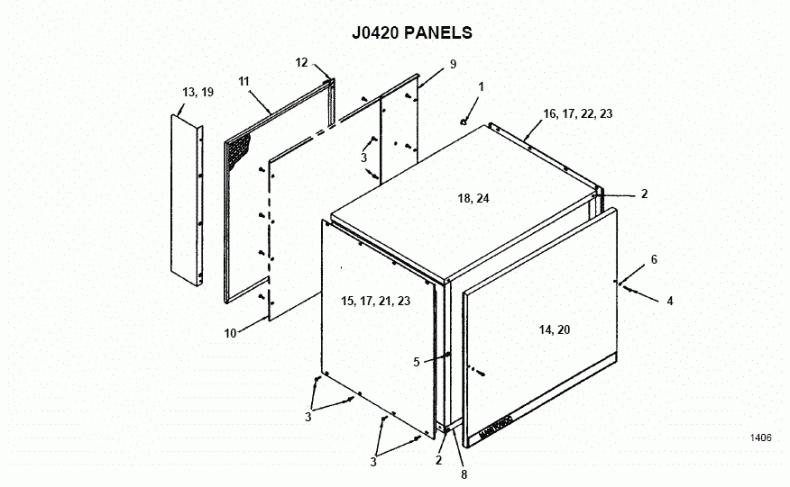

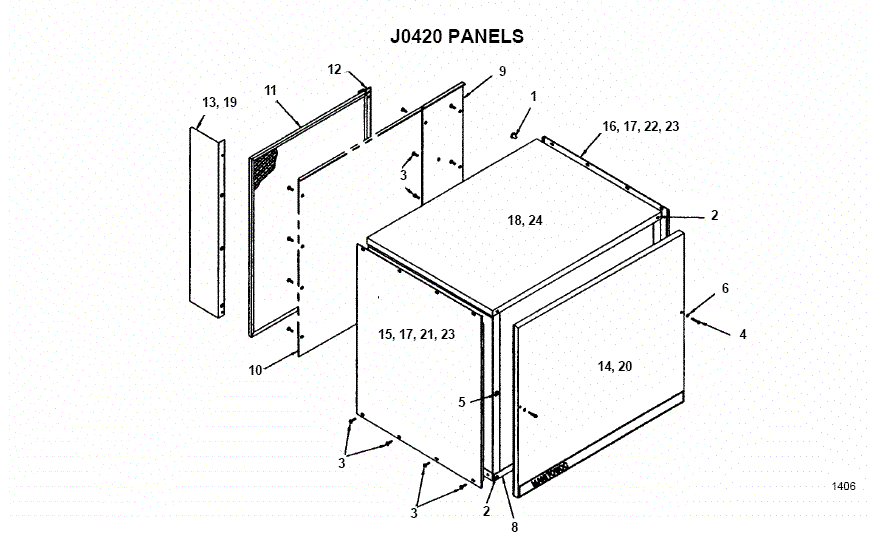

Currently Viewing: J0420 Panels  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
Common Parts
1   56-4820-9 Canoe Clip Fastener (Pkg of 6) Ships In 7-10 Days $11.08
2 52-0209-9 Phil Flat Hd Screw Pkg of 12 - Obsolete
3 52-0206-9 Sl Hex Hd Screw (Pkg of 12) Ships In 7-10 Days $10.15
4   50-2668-9 Fastener Screw (Package of 12) - 50-2668-9 Ships In 7-10 Days $8.31
5   57-6865-9 Insert-Thread 8-32 (Pkg of 2) Ships In 7-10 Days $15.00
6   37-1819-9 O-Ring .145 ID-Pkg of 12 Ships In 7-10 Days $8.31
7   92-0250-9 Extruded Tape 3/16 X 3/8 - 25 Ft Roll Ships In 7-10 Days $23.95
8   000000164 Manitowoc Support Front Assy 000000164 Ships In 7-10 Days $346.15
9   600170-1 Back Panel, Air - Obsolete
10 6001781 Manitowoc Back Panel, Water 600178-1 Ships In 7-10 Days $48.92
11 40-4002-3 Manitowoc EZK Filter. 19.50 X 13.50 Ships In 1-2 Days $35.95
12   76-2686-3 Manitowoc Air Filter Bracket - 76-2686-3 Ships In 7-10 Days $69.23
Fawn
13   600222-1 Air Baffle Fawn Ships In 7-10 Days $227.08
14   76-2523-3 Panel Assy Front B0420 PC - Obsolete
15 6001551 Manitowoc LH Side Panel Air Fawn 600155-1 Ships In 7-10 Days $290.77
16 6001561 Manitowoc RH Side Panel Air Fawn 600156-1 Ships In 7-10 Days $271.38
17 6001571 Manitowoc Side Panel Water Fawn 600157-1 Ships In 7-10 Days $165.23
18   6001931 Manitowoc Top Cover Fawn 600193-1 Ships In 5-7 Days $182.00
Stainless Steel
19 6002223 Manitowoc Air Baffle, SS 600222-3 Ships In 5-7 Days $189.00
20   76-2524-3 Panel Assy Front B0420 SS Ships In 7-10 Days $444.92
21 Obsolete 6001553 Manitowoc LH Side Panel SS, Air 600155-3 Ships In 7-10 Days $336.00
22 Obsolete 6001563 Manitowoc RH Side Panel SS, Air 600156-3 Ships In 7-10 Days $356.31
23 6001573 Manitowoc Side Panel SS, Water 600157-3 Ships In 7-10 Days $253.85
24   6001933 Manitowoc Top Cover, SS, 600193-3 Ships In 7-10 Days $242.00
