Manitowoc JR0450A Parts Diagram

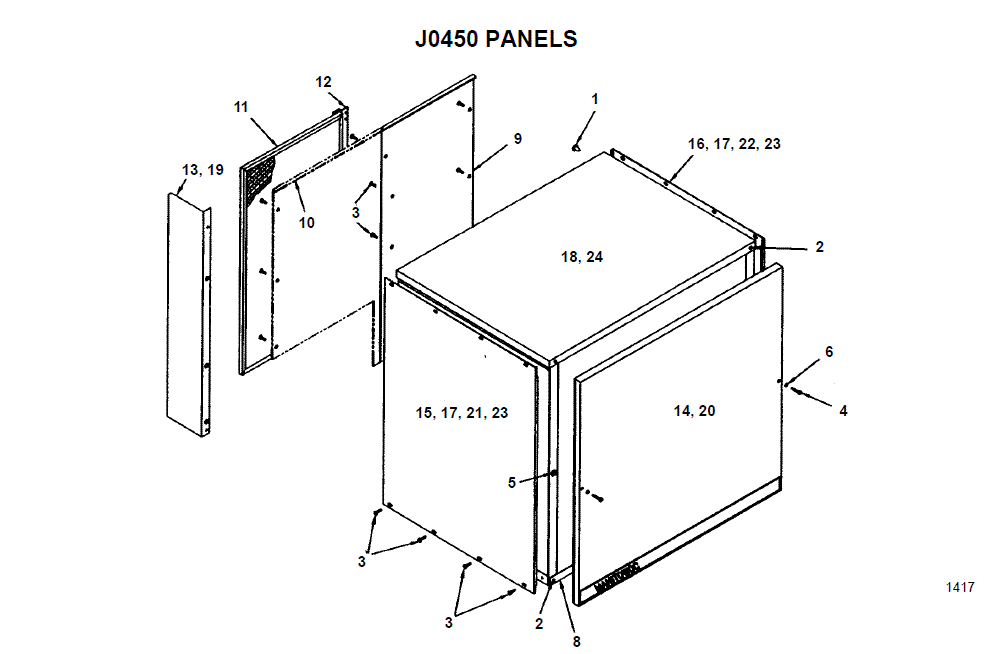

Currently Viewing: J0450 Panels  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
Common Parts
1   56-4820-9 Canoe Clip Fastener (Pkg of 6) Ships In 7-10 Days $11.08
2 52-0209-9 Phil Flat Hd Screw Pkg of 12 - Obsolete
3 52-0206-9 Sl Hex Hd Screw (Pkg of 12) Ships In 7-10 Days $10.15
4   50-2668-9 Fastener Screw (Package of 12) - 50-2668-9 Ships In 7-10 Days $8.31
5   54-2910-9 Cage Nut (Pkg of 12) Ships In 7-10 Days $14.00
6   37-1819-9 O-Ring .145 ID-Pkg of 12 Ships In 7-10 Days $8.31
7   92-0250-9 Extruded Tape 3/16 X 3/8 - 25 Ft Roll Ships In 7-10 Days $23.95
8   65-8041-9 Front Support Ships In 7-10 Days $52.62
9   600318-1 Back Panel, Air Ships In 7-10 Days $287.08
10   6000451 Back Panel, Remote/Water Ships In 7-10 Days $96.92
11 40-4002-3 Manitowoc EZK Filter. 19.50 X 13.50 Ships In 1-2 Days $35.95
12   76-2686-3 Manitowoc Air Filter Bracket - 76-2686-3 Ships In 7-10 Days $69.23
Fawn
13   600220-1 Air Baffle Fawn Ships In 7-10 Days $166.15
14   76-2525-3 Front Panel Assembly PC--B0600 - 76-2525-3 Ships In 7-10 Days $594.46
15   600052-1 LH Side Panel Air Fawn Ships In 7-10 Days $212.31
16   600053-1 Rh Side Panel Air Fawn Ships In 7-10 Days $245.54
17   600060-1 Side Panel W/R Fawn Ships In 7-10 Days $211.38
18   6000681 Top Cover Fawn Ships In 7-10 Days $240.92
Stainless Steel
19   6002203 Air Baffle, SS Ships In 7-10 Days $252.00
20   7625263 Front Panel Assembly Ss--B0600 - 7625263 Ships In 7-10 Days $605.54
21 Obsolete   6000523 LH Side Panel SS, Air Ships In 7-10 Days $319.38
22 Obsolete   6000533 Rh Side Panel SS, Air Ships In 7-10 Days $398.77
23   6000603 Side Panel SS, W/R Ships In 7-10 Days $468.92
24   6001933 Manitowoc Top Cover, SS, 600193-3 Ships In 7-10 Days $242.00
