Manitowoc JR0490N Parts Diagram

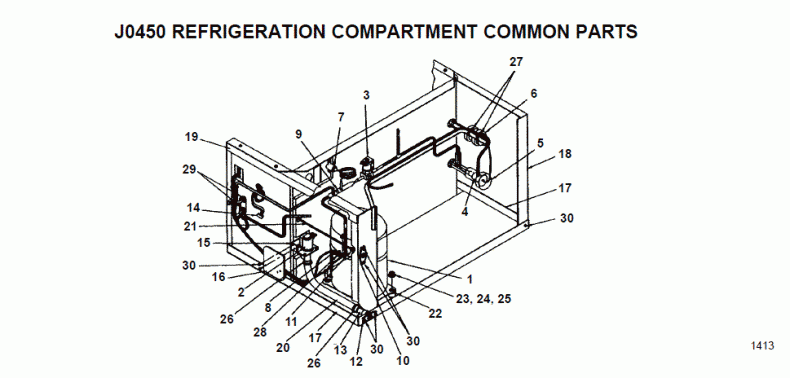

Currently Viewing: J0450 Common Parts  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1 Compressor
1a 115V/60/1   76-2810-3 Compressor Assembly - 115V/60Hz/1 Ph
1b Overload   85-0555-3 Overload, Tecumseh #8300MRAM81 Ships In 7-10 Days $36.00
1c 208-230V/60/1   76-2812-3 Compressor Assembly - 230V/60Hz/1 Ph
1d Overload   85-0556-3 Overload, Tecumseh #8300MRAM71 Ships In 7-10 Days $23.08
1e 230V/50/1   7628113 Compressor Assembly, 230V/50Hz/1
1f   8505573 Overload, Tecumseh #8300MRAG55 Ships In 7-10 Days $26.77
2a 115V 000001767 Manitowoc Dump Valve (120V) In Stock $65.95
2b 208-230V/50-60 Hz/1   000001768 Dump Valve 208/240V 50/60 Hz - REPLACED BY 000001768
3 Hot Gas Valve
3a 115V W/Coil (Danfoss) 76-3001-1 Solenoid Valve - 76-3001-1 115V Ships In 1-2 Days $135.69
3b 115V Coil Only (Danfoss) 000005156 Danfoss Hot Gas Coil Only 115V In Stock $32.95
3c 115V Coil Only (Alco) 24-0436-3 Alco 115V Solenoid Valve Coil Ships In 1-2 Days $88.62
3d 208-230V/50-60 Hz W/Coil (Danfoss)   7630071 Solenoid Vlv Evu3 .38x.25 230V Ships In 7-10 Days $123.69
3e 208-230V/50-60 Hz Coil Only (Danfoss) 000005157 Danfoss Hot Gas Coil Only 230V Ships In 7-10 Days $20.95
3f 208-230V/50-60 Hz Coil Only (Alco) 24-0448-3 Solenoid Coil AMS 208/240V Ships In 7-10 Days $87.95
4 76-0019-3 Kit Exp Vlv Dan J/Q420/450 Ships In 1-2 Days $152.31
5a   40-0721-3 Insulation, Boot - TXV Body Ships In 7-10 Days $23.08
5b   40-0036-3 Insul, TXV Boot, Danfoss Ships In 7-10 Days $20.31
6   40-0720-3 Insulation, TXV Bulb - 40-0720-3 Ships in 1-2 Days $14.95
7   23-5536-9 High Pressure Cut-Out Control Ships In 1-2 Days $139.38
8   23-5116-3 NTC Thermistor In Stock $55.38
9   83-1016-3 Manifold/Strainer Ships In 7-10 Days $25.85
10   87-0609-3 Female Wing Adaptor - 87-0609-3 Ships In 1-2 Days $13.95
11   13-6096-1 Connector, Male, 1/4od X 1/8nptf Ships In 7-10 Days $12.00
12   17-0602-1 Adapter 10-107 1/2 BRI-7/8c Ships In 7-10 Days $14.86
13   11048-1 Drain Tube Ships In 7-10 Days $8.31
14   20-7810-3 Water Pump Lead - 20-7810-3 Ships In 7-10 Days $43.38
15   6260314 Wtr Dump Sol MTG Brkt Ships In 7-10 Days $109.95
16 Obsolete
17   6012871 Angle, Support - Bulkhead/Base Ships In 7-10 Days $128.31
18   6000841 LH Corner Post Weldment Ships In 7-10 Days $336.92
19   6000842 Rh Corner Post Weldment Ships In 7-10 Days $201.23
20
21
22   8503069 Rubber Grommet (Pkg of 4) Ships In 7-10 Days $9.23
23   85-0394-9 Sleeve (Pkg of 4) Ships In 7-10 Days $7.38
24   5430029 3/8 X 16 Hexnut-Pkg of 6 Ships In 7-10 Days $7.39
25   5573099 Flatwasher (Pkg of 10) Ships In 7-10 Days $6.46
26   5650709 Hose Clamp (Pkg of 2)
27   56-5052-9 Ss Wormdrive Clamp (Pkg of 2) Ships In 7-10 Days $10.00
28   5650773 Worm Gear Clamp Ships In 7-10 Days $7.39
29   54-7503-9 Locknut (Pkg of 10) Ships In 7-10 Days $12.00
30 52-0206-9 Sl Hex Hd Screw (Pkg of 12) Ships In 7-10 Days $10.15
