Manitowoc JY0455W Parts Diagram

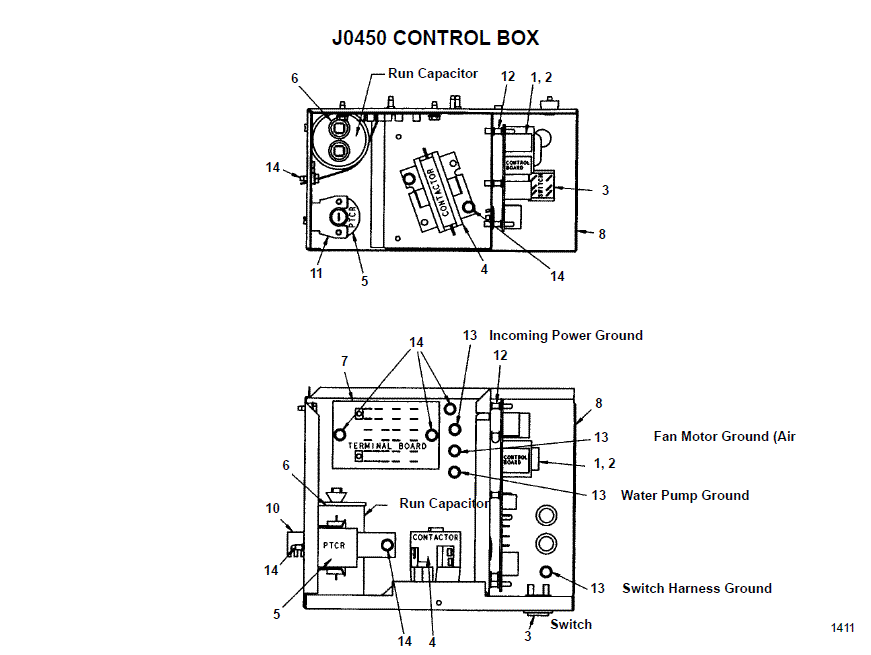

Currently Viewing: J0450 Control Box  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1 7627823 Manitowoc Control Board, J/Q/IB Series In Stock $599.00
2 Fuses Mounted On Board
2a 7 Amp   25-1100-3 Fuse 7 Amp 5 Pack Ships In 1-2 Days $31.95
2b .125 Amp 60 Hz Mini Fuse   25-1116-9 Fuse .125 Amp .57x.177 5 Pack Ships In 1-2 Days $35.95
2c .100 Amp 50 Hz Mini Fuse   2511053 Fuse .1 Amp-5 Pack Ships In 7-10 Days $69.23
3 Toggle Switch Only 23-0134-3 Switch, Rocker Ships In 1-2 Days $32.31
3a Switch W/Harness 20-3217-3 Wiring Harness - Switch Ships In 7-10 Days $36.00
4 Contactor
4a 115V/60 Hz/1 20-0658-9 Contactor, 115V, 1 Ph W/Shunt - 20-0658-9 Ships In 1-2 Days $26.95
4b 208-230V/50-60 Hz/1   20-0659-9 Contactor, 208-230, 1ph W/Shunt - 20-0659-9 Ships in 1-2 Days $25.85
5   85-0500-3 Ptcr, Motor Start, 10 Amp Ships In 1-2 Days $36.00
6 Compressor Run Capacitor
6a 115V   20-1014-3 Run Capacitor -115V - 20-1014-3 Ships In 1-2 Days $36.92
6b 208-230V/50-60Hz   8504003 Run Capacitor - 230V/50-60Hz/1 Ships In 7-10 Days $27.69
7 Terminal Board W/Wiring Harness
7a 115V   20-3226-3 Wiring Harness - 115V/60Hz Ships In 7-10 Days $134.77
7b 230V/50Hz   2032093 Manitowoc Terminal Board W/Wiring Harness - 50 Hz/1ph Ships In 7-10 Days $369.23
7c 230V/60hz   20-3208-3 Wiring Harness - 60 Hz/1ph Ships In 7-10 Days $156.92
8 6020461 Manitowoc Control Box Assy, Tox 602046-1 Ships In 7-10 Days $74.00
9   7625073 Control Box Cover W/Labels Ships In 7-10 Days $131.08
10   6021601 Capacitor Bracket Only Ships In 7-10 Days $8.31
11   8505023 Bracket, Ptcr Mounting In Stock $7.38
12   43-0225-3 Support Ships In 7-10 Days $7.38
13 52-0216-9 Ph Hx Wash Head (Pkg of 6) - 52-0216-9 In Stock $7.95
14 52-0206-9 Sl Hex Hd Screw (Pkg of 12) Ships In 7-10 Days $10.15
