Manitowoc JR0601W Parts Diagram

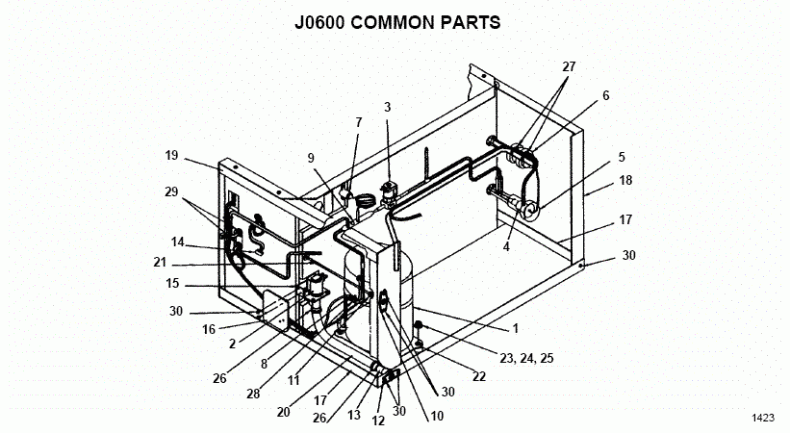

Currently Viewing: J0600 Common Parts  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1 Compressor
1a 208-230V/60/1   76-0094-3 Compressor Assembly 230V 60 Hz J0600 -76-0094-3
1b 230V/50/1   76-0093-3 Compressor Assembly 220V 50 Hz J0600 - 76-0093-3
2 208-230V/50-60 Hz/1   000001768 Dump Valve 208/240V 50/60 Hz - REPLACED BY 000001768
3 Hot Gas Valve
3a 208-230V/50-60 Hz W/Coil (Danfoss) 76-3010-1 Manitowoc Solenoid Valve 208-230V/50-60Hz Ships In 1-2 Days $145.85
3b 208-230V/50-60 Hz Coil Only 24-0448-3 Solenoid Coil AMS 208/240V Ships In 7-10 Days $87.95
4   76-0020-3 Valve, Thermo Exp Danfoss - 76-0020-3 Ships In 1-2 Days $160.62
5a   40-0721-3 Insulation, Boot - TXV Body Ships In 7-10 Days $23.08
5b   40-0036-3 Insul, TXV Boot, Danfoss Ships In 7-10 Days $20.31
6   40-0720-3 Insulation, TXV Bulb - 40-0720-3 Ships in 1-2 Days $14.95
7   23-5536-9 High Pressure Cut-Out Control Ships In 1-2 Days $139.38
8   23-5116-3 NTC Thermistor In Stock $55.38
9   83-1015-3 Manifold/Strainer Ships In 7-10 Days $34.15
10   87-0609-3 Female Wing Adaptor - 87-0609-3 Ships In 1-2 Days $13.95
11   13-6096-1 Connector, Male, 1/4od X 1/8nptf Ships In 7-10 Days $12.00
12   17-0602-1 Adapter 10-107 1/2 BRI-7/8c Ships In 7-10 Days $14.86
13   11048-1 Drain Tube Ships In 7-10 Days $8.31
14   20-7810-3 Water Pump Lead - 20-7810-3 Ships In 7-10 Days $43.38
15   6260314 Wtr Dump Sol MTG Brkt Ships In 7-10 Days $109.95
16 Obsolete
17   6012871 Angle, Support - Bulkhead/Base Ships In 7-10 Days $128.31
18   6000841 LH Corner Post Weldment Ships In 7-10 Days $336.92
19   6000842 Rh Corner Post Weldment Ships In 7-10 Days $201.23
20
21
22   8503069 Rubber Grommet (Pkg of 4) Ships In 7-10 Days $9.23
23   85-0394-9 Sleeve (Pkg of 4) Ships In 7-10 Days $7.38
24   5430029 3/8 X 16 Hexnut-Pkg of 6 Ships In 7-10 Days $7.39
25   5573099 Flatwasher (Pkg of 10) Ships In 7-10 Days $6.46
26   5650709 Hose Clamp (Pkg of 2)
27   56-5052-9 Ss Wormdrive Clamp (Pkg of 2) Ships In 7-10 Days $10.00
28   5650773 Worm Gear Clamp Ships In 7-10 Days $7.39
29   54-7503-9 Locknut (Pkg of 10) Ships In 7-10 Days $12.00
30 52-0206-9 Sl Hex Hd Screw (Pkg of 12) Ships In 7-10 Days $10.15
