Manitowoc JD0692A Parts Diagram

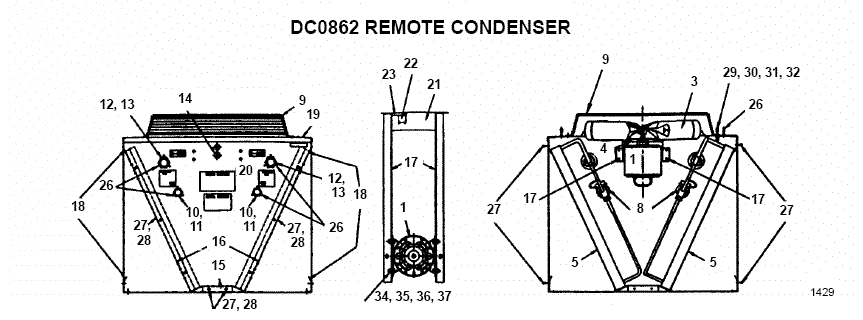

Currently Viewing: DC0862 Remote Condenser  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   76-2942-3 Fan Motor 115V 60 Hz 1ph - 76-2942-3 Ships In 1-2 Days $480.00
2 Obsolete
3   24-1611-3 Fan Blade - 24-1611-3 Ships In 7-10 Days $80.31
4   24-1505-3 Rain Slinger 6 Dia. Ships In 7-10 Days $10.95
5 (uses 2)   88-5062-9 Air Condenser AC1195 - 88-5062-9 Ships In 7-10 Days $451.38
6 6017881 Manitowoc Panel, Back 601788-1 Ships In 7-10 Days $98.77
7   601769-1 Remote Mounting Leg - 601769-1 Ships In 7-10 Days $30.46
8   83-6809-3 Head Pressure Control Valve Ships In 7-10 Days $171.69
9   34-0064-3 Fan Guard Remote Condensor Ships In 7-10 Days $87.69
10   8360343 Coupl Male 5/8-18 THD Ships In 7-10 Days $19.39
11   8360053 Mtg Flg 1/4-3/8 #5706-22-6s Ships In 7-10 Days $6.46
12   8360353 Coupling Male 1-1/16-12 THD Ships In 7-10 Days $30.46
13   8360063 Mtg Flg 1/2-7/8 FD67-1008-12 Ships In 7-10 Days $6.47
14   4301463 Manitowoc Hole Plug 7/8" - 43-0146-3 Ships In 7-10 Days $8.31
15 6017791 Manitowoc Base 601779-1 Ships In 7-10 Days $58.15
16 6017771 Manitowoc Angle, Condenser Mounting 601777-1 Ships In 7-10 Days $35.08
17   6017681 Fan Motor Mounting Bracket Ships In 7-10 Days $19.38
18 6017781 Manitowoc Bracket, Support 601778-1 Ships In 7-10 Days $24.92
19 6017891 Manitowoc Cover, Top 601789-1 Ships In 7-10 Days $98.77
20   6017871 Manitowoc Panel, Front 601787-1 Ships In 7-10 Days $90.46
21   6017761 Cover, Electrical Ships In 7-10 Days $24.00
22 Obsolete
23 6000001 Manitowoc Relay MTG Brkt Fawn 600000-1 Ships In 7-10 Days $13.85
24 2410273 Manitowoc Plate Mounted Transformer 24-1027-3 Ships In 7-10 Days $88.75
25   2032583 Cord, Power - Daiwa
26 52-0206-9 Sl Hex Hd Screw (Pkg of 12) Ships In 7-10 Days $10.15
27   5121539 Screw (Pkg of 10) - Obsolete
28   5544599 Washer (Pkg of 10) Ships In 7-10 Days $6.46
29   5033459 Machine Screw (Pkg of 10) Ships In 7-10 Days $9.23
30   55-4511-9 Lockwasher (Pkg of 10) - 55-4511-9 In Stock $6.95
31   55-7304-9 Flatwasher 1/4 (Pkg of 12) - Obsolete
32   5429529 Hexnut 1/4-20 (Pkg of 12) - Obsolete
33   55-4464-9 Lockwasher (Pkg of 10) Ships In 7-10 Days $7.00
34   50-3565-9 Screw (Pkg of 10) Ships In 7-10 Days $8.00
35   54-2975-9 Hex Nut Pkg of 12 Ships In 7-10 Days $9.00
36   5573099 Flatwasher (Pkg of 10) Ships In 7-10 Days $6.46
37   55-7313-9 Lockwasher (Pkg of 10) Ships In 7-10 Days $7.00
38   8360263 Coupl Female 90 1-1/16-12 THD Ships In 7-10 Days $37.85
39   8360273 Coupl Female 1-1/16-12 THD Ships In 7-10 Days $36.92
40   8360473 Coupl Female 90 5/8-18 THD Ships In 7-10 Days $26.77
41   8360483 Coupl Female 5/8-18 THD Ships In 7-10 Days $30.46
42   7626843 Access Fitting Core (Pkg of 4) Ships In 7-10 Days $12.00
