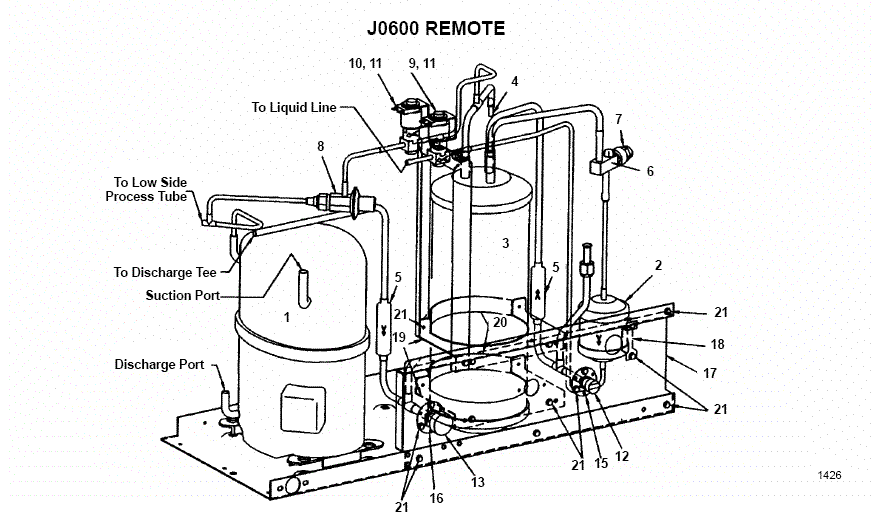

Manitowoc JD0692A Parts Diagram
Currently Viewing: J0600 Remote  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1 Compressor (Refer to Common Parts)
2 8930249 Manitowoc Drier 89-3024-9 Ships in 1-2 Days $59.08
3   76-2957-3 Rec Replacement Assy, Q450-1000 Ships In 7-10 Days $279.69
4   628451-9 Safety Soft Plug W/Bulletin Ships In 7-10 Days $82.15
5   83-7314-9 Magni-Check Valve Assy Ships In 7-10 Days $60.92
6   83-7316-9 Valve, Manual Shut Off, 3/8" - 83-7316-9 Ships In 7-10 Days $65.54
7   5650753 Cap for Receiver Service Valve
8   83-6779-3 Harvest Pressure Regulator Valve - 83-6779-3 Ships In 7-10 Days $104.31
9   76-3008-1 Solenoid Valve - 76-3008-1 Ships In 1-2 Days $143.08
10   76-3006-1 Hpr Solenoid Valve - 76-3006-1 Ships In 7-10 Days $118.15
11 24-0448-3 Solenoid Coil AMS 208/240V Ships In 7-10 Days $87.95
12   8360343 Coupl Male 5/8-18 THD Ships In 7-10 Days $19.39
13   8360353 Coupling Male 1-1/16-12 THD Ships In 7-10 Days $30.46
14 K-00129 Manitowoc Remote Coupling Kit K-00129 Ships In 7-10 Days $74.99
15   8360053 Mtg Flg 1/4-3/8 #5706-22-6s Ships In 7-10 Days $6.46
16   8360063 Mtg Flg 1/2-7/8 FD67-1008-12 Ships In 7-10 Days $6.47
17   6000571 Coupling MTG Panel Ships In 7-10 Days $116.31
18   6017371 Bracket, Support - Drier, Rem Ships In 7-10 Days $12.00
19   6000561 Receiver Mtg. Bracket Ships In 7-10 Days $12.92
20   6307214 Receiver MTG Strap Ships In 7-10 Days $13.85
21 52-0206-9 Sl Hex Hd Screw (Pkg of 12) Ships In 7-10 Days $10.15
