Manitowoc JY0694A Parts Diagram

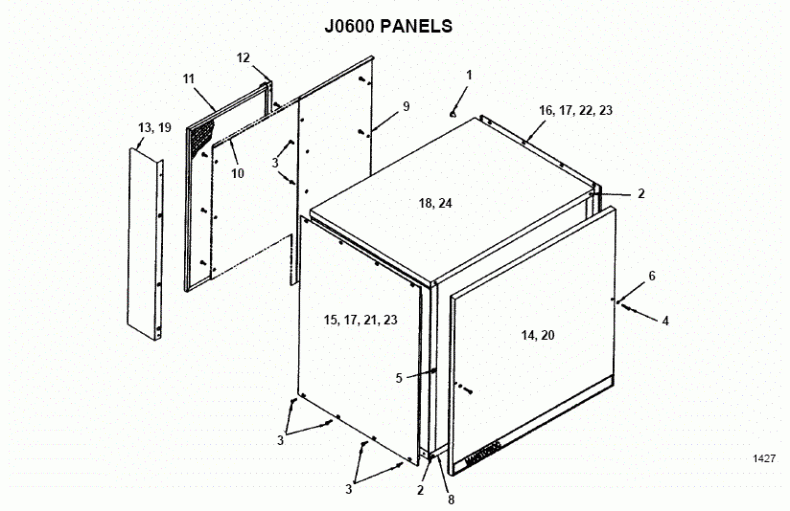

Currently Viewing: J0600 Panels  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
Common Parts
1   56-4820-9 Canoe Clip Fastener (Pkg of 6) Ships In 7-10 Days $11.08
2 52-0209-9 Phil Flat Hd Screw Pkg of 12 - Obsolete
3 52-0206-9 Sl Hex Hd Screw (Pkg of 12) Ships In 7-10 Days $10.15
4   50-2668-9 Fastener Screw (Package of 12) - 50-2668-9 Ships In 7-10 Days $8.31
5   54-2910-9 Cage Nut (Pkg of 12) Ships In 7-10 Days $14.00
6   37-1819-9 O-Ring .145 ID-Pkg of 12 Ships In 7-10 Days $8.31
7   92-0250-9 Extruded Tape 3/16 X 3/8 - 25 Ft Roll Ships In 7-10 Days $23.95
8   65-8041-9 Front Support Ships In 7-10 Days $52.62
9   6020861 Panel, Back, Air Ships In 7-10 Days $40.62
10   6000451 Back Panel, Remote/Water Ships In 7-10 Days $96.92
11   40-4003-3 EZK Filter. 18.50 X 18.00 Ships In 7-10 Days $39.69
12   76-2686-3 Manitowoc Air Filter Bracket - 76-2686-3 Ships In 7-10 Days $69.23
Fawn
13   600220-1 Air Baffle Fawn Ships In 7-10 Days $166.15
14   76-2525-3 Front Panel Assembly PC--B0600 - 76-2525-3 Ships In 7-10 Days $594.46
15   6020501 Manitowoc Panel, LH Side, Air, Fawn 602050-1 Ships In 7-10 Days $157.85
16   6020591 Manitowoc Panel, RH Side, Air, Fawn 602059-1 Ships In 7-10 Days $60.92
17   600060-1 Side Panel W/R Fawn Ships In 7-10 Days $211.38
18   6000681 Top Cover Fawn Ships In 7-10 Days $240.92
Stainless Steel
19   6002203 Air Baffle, SS Ships In 7-10 Days $252.00
20   7625263 Front Panel Assembly Ss--B0600 - 7625263 Ships In 7-10 Days $605.54
21 Obsolete   6020502 Manitowoc Panel, LH Side, Air, SS 602050-2 Ships In 7-10 Days $177.23
22 Obsolete   6020592 Manitowoc Panel, RH Side, Air, SS 602059-2 Ships In 7-10 Days $102.46
23   6000603 Side Panel SS, W/R Ships In 7-10 Days $468.92
24   600068-3 Top Cover, SS Ships In 7-10 Days $415.38
