Manitowoc JY0804A Parts Diagram

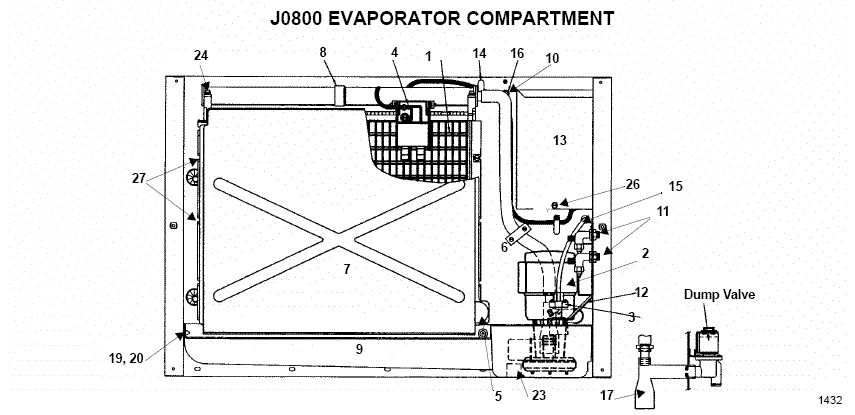

Currently Viewing: J0800 Evaporator  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1 Evaporator Assembly
1a Regular Cube   76-2473-9 Evap Assy B8/13, J/Q8/1400 Reg Ships In 7-10 Days $1,522.15
1b Dice Cube   76-2472-9 Evap Assy B8/13, J/Q8/14 Dice Ships In 7-10 Days $1,596.92
1c Half-Dice Cube   76-2471-9 Evap Assy B8/13, J/Q8/Q14 H/D Ships In 7-10 Days $2,025.23
1d 76-2621-3 Manitowoc Evaporator Top Molding & Gasket - 76-2621-3 Ships In 1-2 Days $63.69
2 Water Pump 76-2601-3 Manitowoc Water Pump, 230V, 50/60Hz, 96deg - 76-2601-3 In Stock $268.95
3 Float Valve Complete 83-6913-3 Manitowoc Float Valve - 83-6913-3 In Stock $52.95
3a Screen   83-6906-9 Flt Valve Strainer Screen Pkg6 Ships In 7-10 Days $12.00
3b Plunger   83-6908-9 Float Valve Plunger Seal Pkg 6 Ships In 7-10 Days $12.92
3c Compression Nut   56-5072-9 Nut (Package of 6) - 56-5072-9 Ships In 7-10 Days $8.31
4 76-2781-3 Manitowoc Ice Thickness Control - 76-2781-3 In Stock $64.95
5 2301483 Manitowoc Magnetic Bin Switch Assembly In Stock $54.95
6   76-2054-3 Water Flow Clamp Assy (Service) Ships In 7-10 Days $25.85
7 Water Curtain   40-0851-3 Manitowoc Water Curtain - 40-0851-3 In Stock $110.77
7a Hanger 76-2776-3 Pair of Manitowoc Water Curtain Hangers - 76-2776-3 In Stock $9.95
7b Magnet & Clip 76-2802-3 Water Curtain Magnet/Clip In Stock $14.95
8 76-2498-3 Water Distribution Assembly - 76-2498-3 In Stock $61.85
9   76-2748-3 Water Trough - 76-2748-3 Ships In 1-2 Days $138.46
10   23-5536-9 High Pressure Cut-Out Control Ships In 1-2 Days $139.38
11   83-7310-9 Process Valve - 83-7310-9 Ships In 7-10 Days $13.85
12   76-2140-3 Bracket - 76-2140-3 Ships In 7-10 Days $16.62
13   7625073 Control Box Cover W/Labels Ships In 7-10 Days $131.08
14   56-5090-9 Clip, Snap-In, (Pkg of 10) Ships In 7-10 Days $8.00
15 44-2029-1 Poly Tubing 44-P-1/4 OD - 2 Ft Section In Stock $12.92
16   44-2084-3 Tube,Vinyl-White 0.625 ID Ships In 7-10 Days $21.23
17   43-0057-3 Reducing Tee, EPDM Rubber Ships In 7-10 Days $20.31
18   83-9005-3 Union Connector White Nylon Ships In 7-10 Days $7.38
19   43-0201-9 Water Trough Support Ships In 1-2 Days $8.31
20   54-2945-9 Hex Nut Spacer (Pkg of 10) - 54-2945-9 Ships In 7-10 Days $10.15
21 56-5085-3 Receptacle 004-912-010 Ships In 1-2 Days $7.95
22 56-5086-3 Stud - Wing Head 124-050-010 Ships In 1-2 Days $7.95
23 76-2704-3 Water Trough Support Clip Assy Ships In 1-2 Days $42.46
24 50-0001-3 Thumbscrew #*-32 X 3/8 Long - 50-0001-3 In Stock $7.38
25   5121669 Screw #8 X 3/4 (Pkg of 10) Ships In 7-10 Days $10.15
26 52-0206-9 Sl Hex Hd Screw (Pkg of 12) Ships In 7-10 Days $10.15
27 52-0218-9 Screw W/Washer (Pkg of 6) - 52-0218-9 Ships In 7-10 Days $7.95
