Manitowoc JD0892N Parts Diagram
Currently Viewing: J0800 Panels  > Go Back To Other Parts Lists

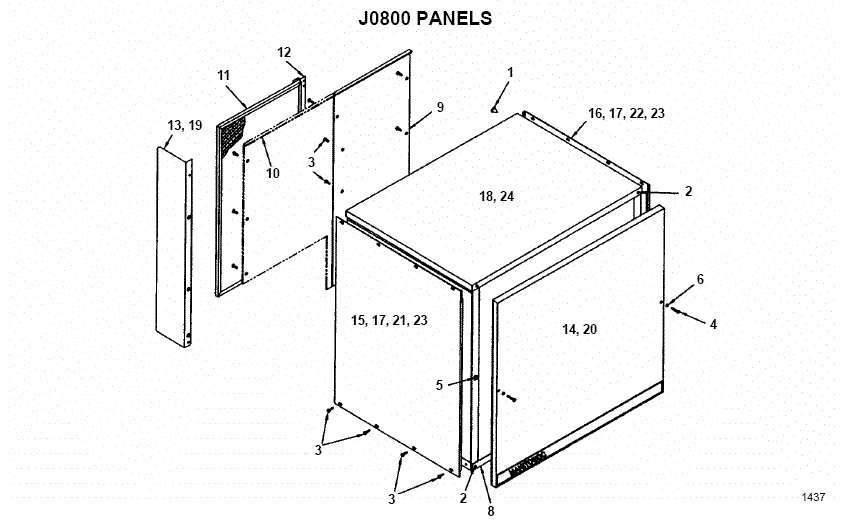

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   56-4820-9 Canoe Clip Fastener (Pkg of 6) Ships In 7-10 Days $11.08
2 52-0209-9 Phil Flat Hd Screw Pkg of 12 - Obsolete
3 52-0206-9 Sl Hex Hd Screw (Pkg of 12) Ships In 7-10 Days $10.15
4   50-2668-9 Fastener Screw (Package of 12) - 50-2668-9 Ships In 7-10 Days $8.31
5   54-2910-9 Cage Nut (Pkg of 12) Ships In 7-10 Days $14.00
6   37-1819-9 O-Ring .145 ID-Pkg of 12 Ships In 7-10 Days $8.31
7   92-0250-9 Extruded Tape 3/16 X 3/8 - 25 Ft Roll Ships In 7-10 Days $23.95
8   65-8041-9 Front Support Ships In 7-10 Days $52.62
9   6000691 Manitowoc Back Panel, Air Ships In 7-10 Days $28.62
10   6000701 Back Panel, Remote/Water Ships In 7-10 Days $69.23
11   40-4004-3 EZK Filter 21.50 X 18.00 Ships In 7-10 Days $48.00
12   76-2686-3 Manitowoc Air Filter Bracket - 76-2686-3 Ships In 7-10 Days $69.23
Fawn
13   600222-1 Air Baffle Fawn Ships In 7-10 Days $227.08
14   76-2462-3 Panel Assy Front PC B0800 Ships In 7-10 Days $376.62
15   6000641 Manitowoc LH Side Panel Air Fawn Ships In 7-10 Days $327.69
16   60-0065-1 Rh Side Panel Air Fawn Ships In 7-10 Days $345.23
17   6000661 Manitowoc Side Panel W/R Fawn Ships In 7-10 Days $331.39
18   6000681 Top Cover Fawn Ships In 7-10 Days $240.92
Stainless Steel
19 6002223 Manitowoc Air Baffle, SS 600222-3 Ships In 5-7 Days $189.00
20   76-2463-3 Panel Assy Front SS B0800 Ships In 7-10 Days $575.08
21   6000643 Manitowoc LH Side Panel SS, Air Ships In 7-10 Days $368.31
22   6000653 Manitowoc RH Side Panel SS, Air Ships In 7-10 Days $477.23
23   600066-3 Panel-Side SS Water & Remote Ships In 7-10 Days $269.54
24   600068-3 Top Cover, SS Ships In 7-10 Days $415.38
